Nilfisk-Advance SC350

GENERAL INFORMATION
SERVICE MANUAL
ENGLISH
SC350 9098840000
9

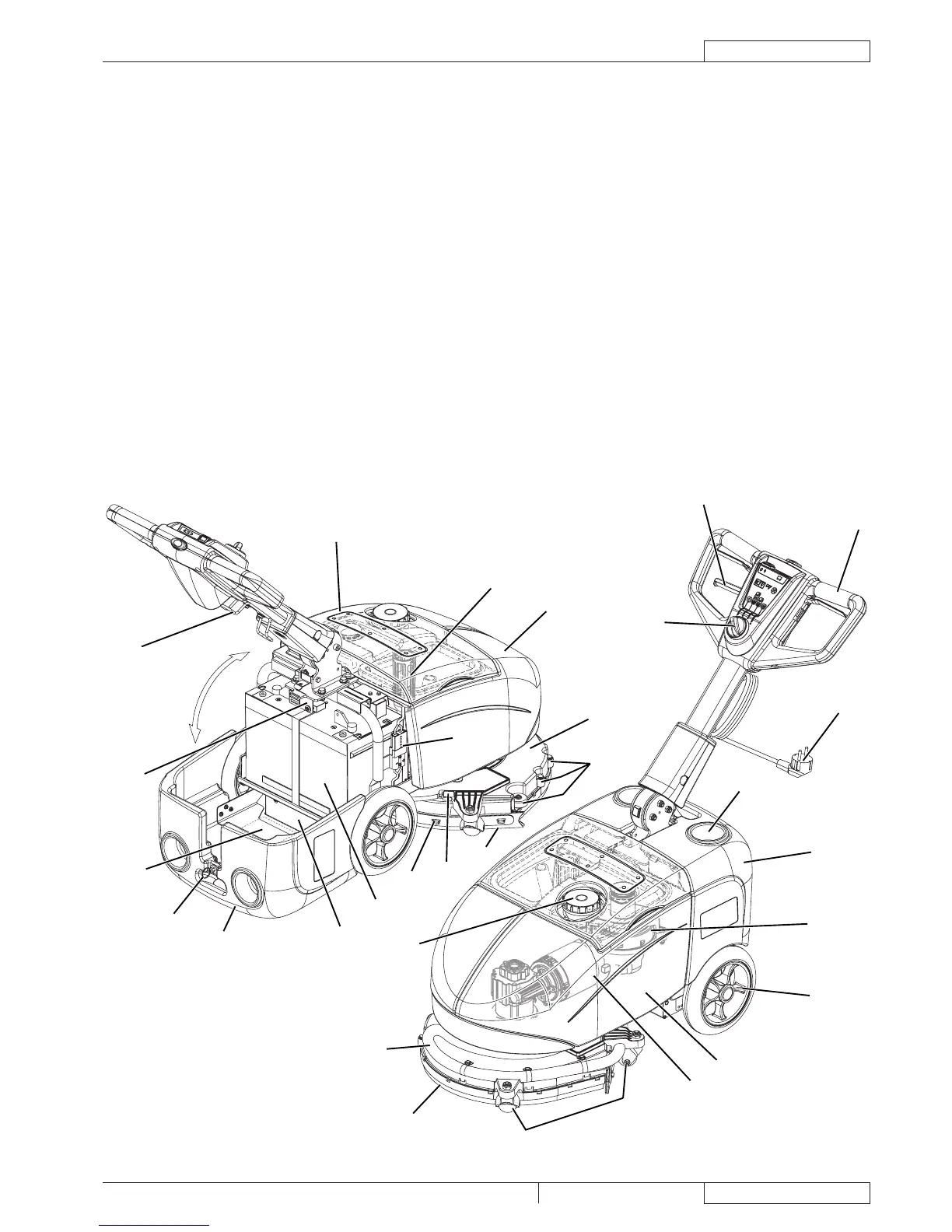

MACHINE NOMENCLATURE
Throughout this Manual you will nd numbers in brackets – for example: (2). These numbers refer to the components indicated in
these nomenclature pages. Refer to these pages whenever you need to identify a component mentioned in the text.
1
10
6
4
26
29
22
13
17
15
14
21
24
25
23
12
16
19
20
18
8
7
9
4
5
27
28
11
2
3
P100418
Handlebar with control panel (see the following paragraph)1.
Handlebar inclination adjusting lever2.
Start-up and program selection knob3.
Accessory and battery compartment cover4.
Cover latch5.
Can holder6.
Battery connection connector7.
GEL/AGM battery8.
Battery charger9.
Battery charger cable10.
Battery charger cable holder11.
Brush/pad-holder deck12.
Brush deck gearmotor13.
Squeegee vacuum hose14.
Splash-shield15.
Deck bumper wheels16.
Deck support wheels17.
Squeegee18.
Squeegee blades assembly19.
Squeegee fasteners20.
Solution tank ller plug21.
Solution tank22.
Recovery tank23.
Transparent cover with vacuum grid24.
Vacuum grid with automatic shut-off oat25.
Vacuum system motor26.
Serial number plate/technical data/conformity certication27.
Fuses28.
Rear wheels on xed axle29.
