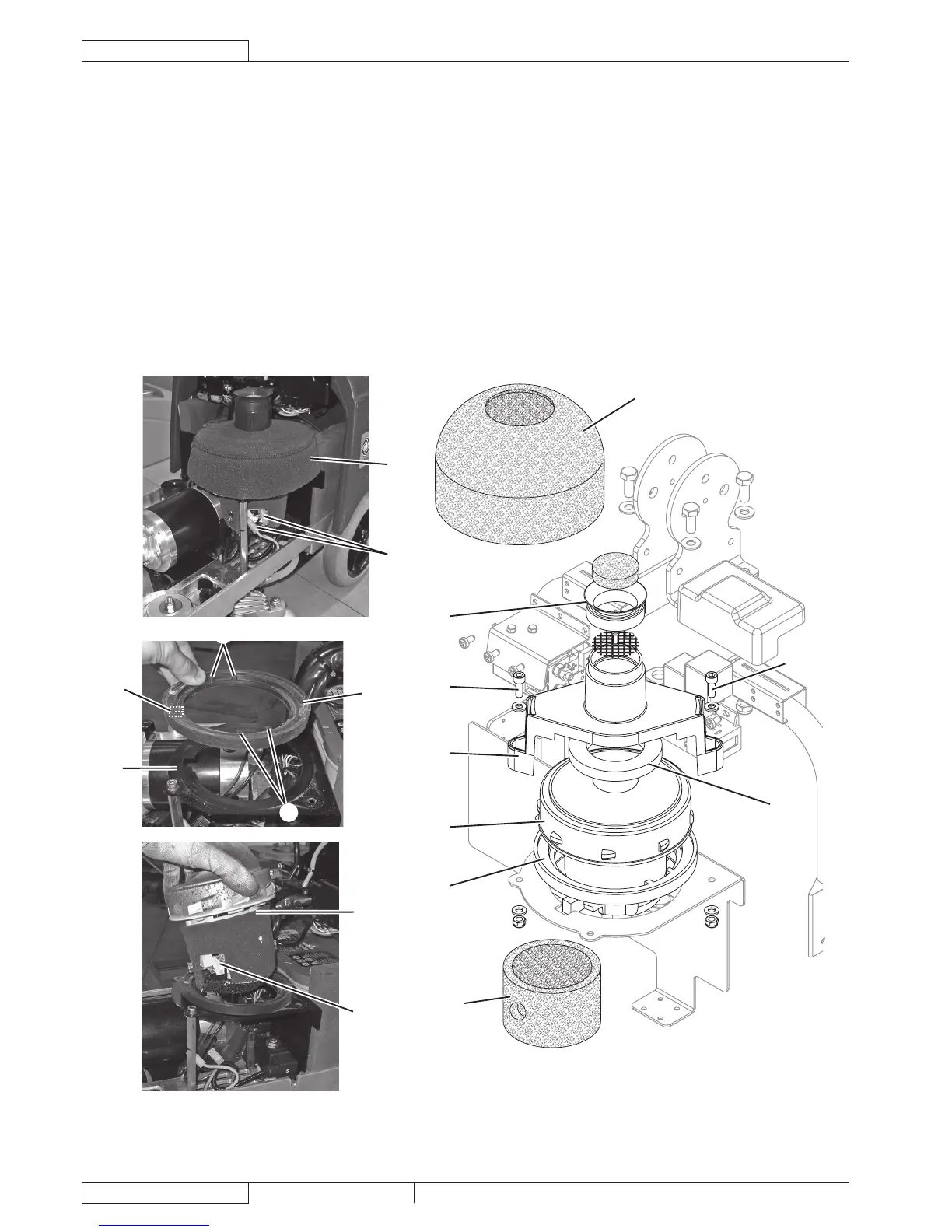

VACUUM SYSTEM MOTOR DISASSEMBLY/ASSEMBLY
Disassembly
Remove the solution and recovery water tanks.1.
Make sure that the battery connector is disconnected.2.
Disconnect the 2 connectors (A) of the motor (B).3.
Remove the acoustic insulation panel (C).4.
Remove the screws (D), recover the washers and nuts.5.
Remove the motor cover (E) and recover the gasket (F).6.
Remove the motor (B) and the acoustic insulation pipe (G)7.
Check the gasket (F) and the gasket (H) for efciency. If necessary, replace.8.
Assembly
Assemble the components in the reverse order of disassembly and note the following:9.
When installing the gasket (I) into the housing (J) turn it until the lower tooth (K) and upper teeth (L) are as shown in the •
gure.
Install the motor (B) with the power supply contacts as shown in the gure (M).•
