ELECTRICAL SYSTEM
SERVICE MANUAL
ENGLISH
SC350 9098840000
23

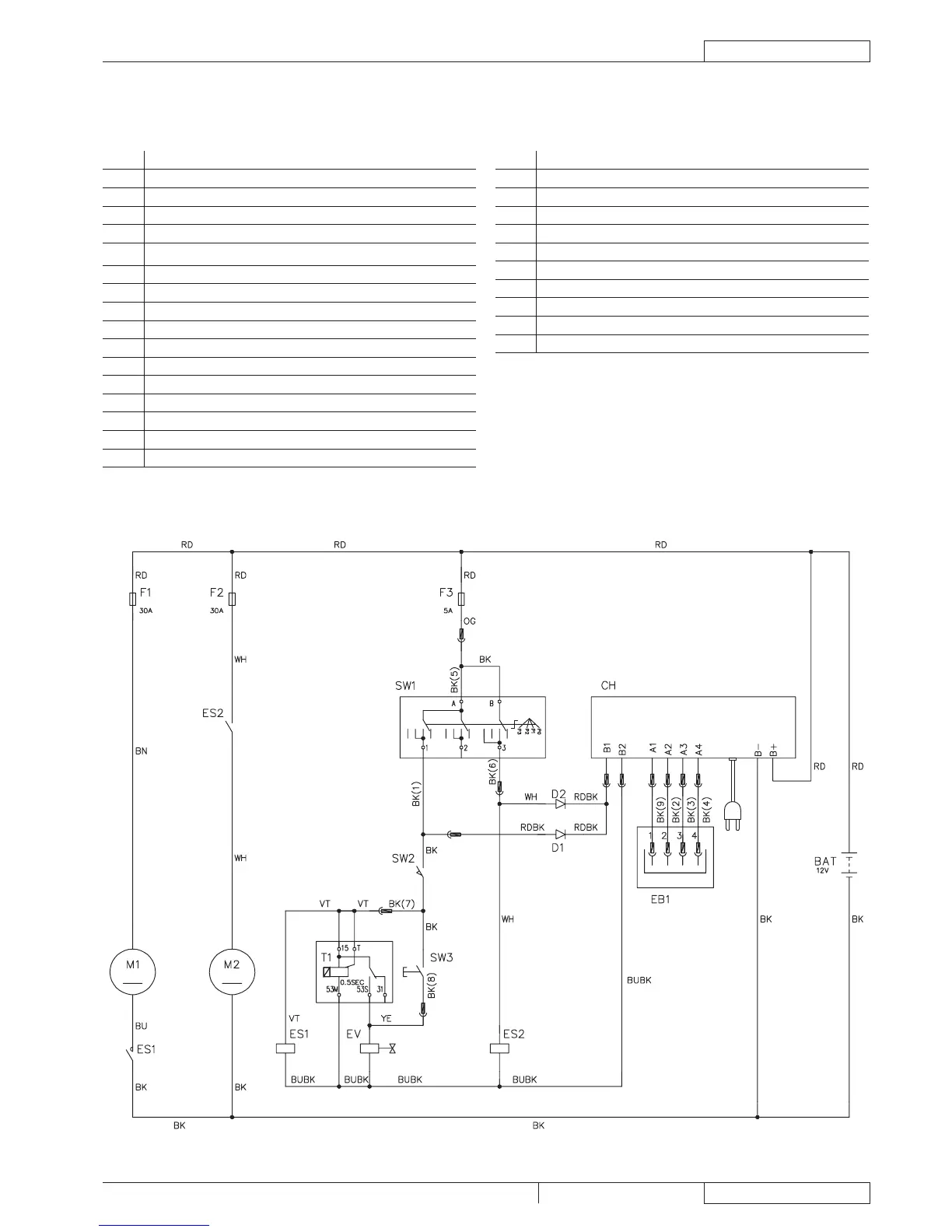

WIRING DIAGRAM
Key
BAT 12V battery
CH Battery charger
D1 Diode
D2 Diode
EB1 Display LED electronic board
ES1 Brush electromagnetic switch
ES2 Vacuum system relay
EV Solution solenoid valve
F1 Brush resettable fuse
F2 Vacuum system fuse (30 A)
F3 Selector fuse (5 A)
M1 Brush motor
M2 Vacuum system motor
SW1 Rotary function selector
SW2 M1-EV enabling switch
SW3 Solution rate switch
T1 Solenoid valve timer
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100430
