DETERGENT SUPPLY SYSTEM
SOLUTION SYSTEM SOLENOID VALVE DISASSEMBLY/ASSEMBLY
Disassembly
Place the machine on a hoisting system (if available), then lift it. Otherwise, drive the machine on a level oor.1.
Make sure that the battery connector is disconnected.2.
Remove the cover and the solution and recovery water tanks.3.

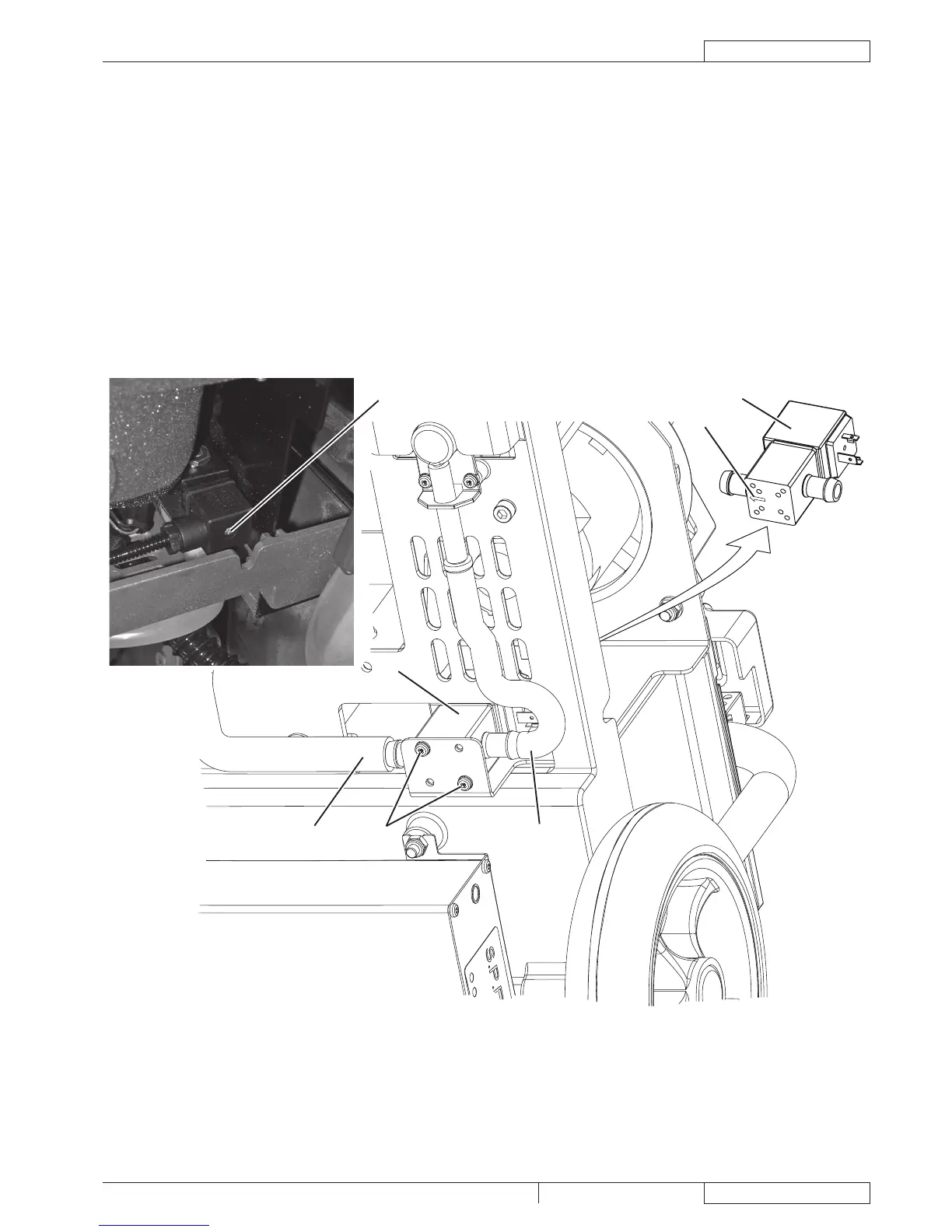

Remove the solenoid valve power supply connector (A).4.
Disconnect the hoses (B) and (C) under the machine.5.
Remove the screws (D) and recover the washers.6.
Remove the solenoid valve (E) upwards.7.
Assembly
Assemble the components in the reverse order of disassembly and note the following:8.
When assembling the solenoid valve (E), the stamped arrow (F) must be tuned in the direction of the solution ow as •
shown in the gure.
