ELECTRICAL SYSTEM
ENGLISH
SERVICE MANUAL
22
9098840000 SC350

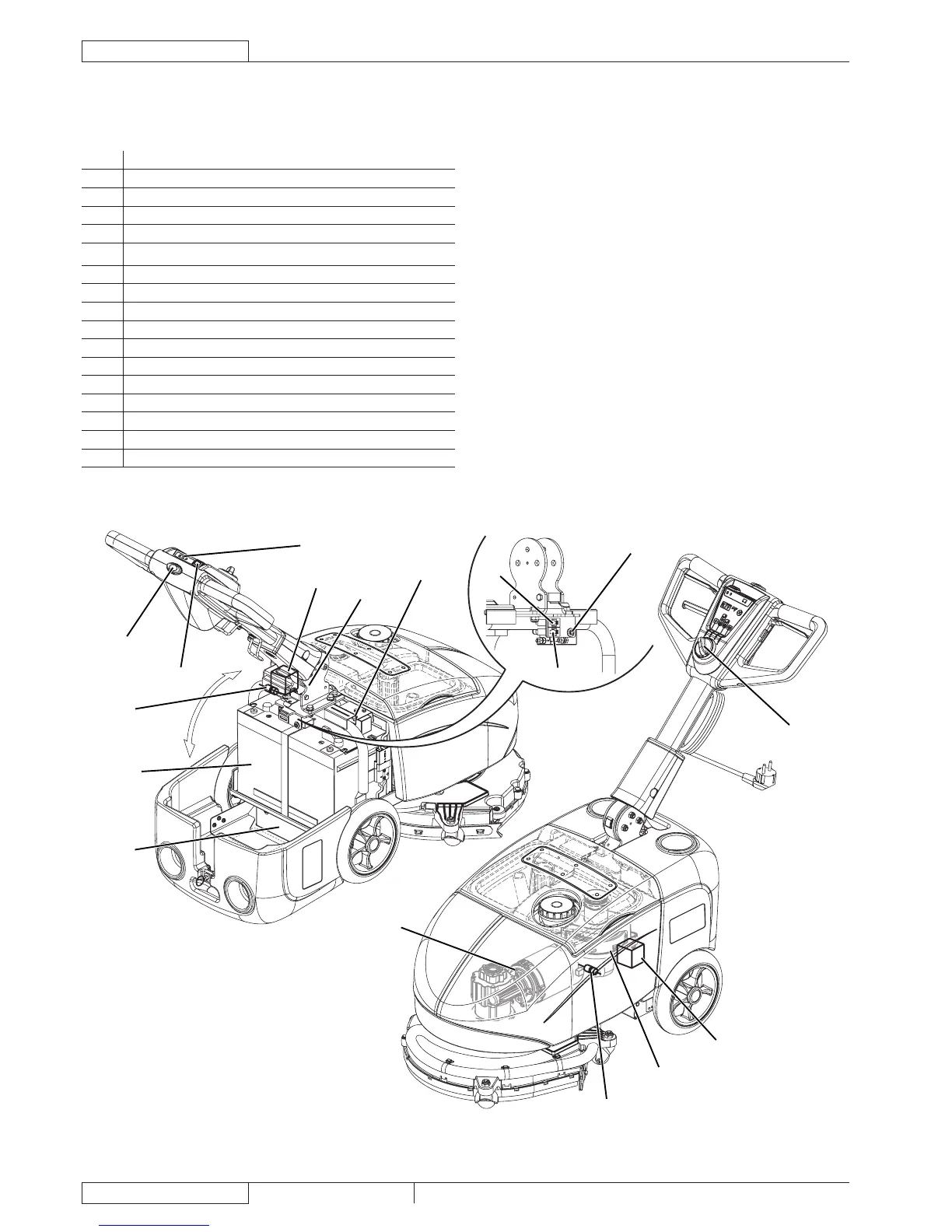

ELECTRICAL COMPONENT LAYOUT
Key
BAT 12V battery
CH Battery charger
D1 Diode
D2 Diode
EB1 Battery charger electronic board
ES1 Brush electromagnetic switch
ES2 Vacuum system relay
EV Solution solenoid valve
F1 Brush resettable fuse
F2 Vacuum system fuse (30 A)
F3 Selector fuse (5 A)
M1 Brush motor
M2 Vacuum system motor
SW1 Rotary function selector
SW2 M1-EV enabling switch
SW3 Solution rate switch
T1 Solenoid valve timer
BAT
D2
D1
EB1
ES1
ES2
T1
EV
F1
F3
F2
M1
M2
SW1
SW2
SW3
CH
P100429
