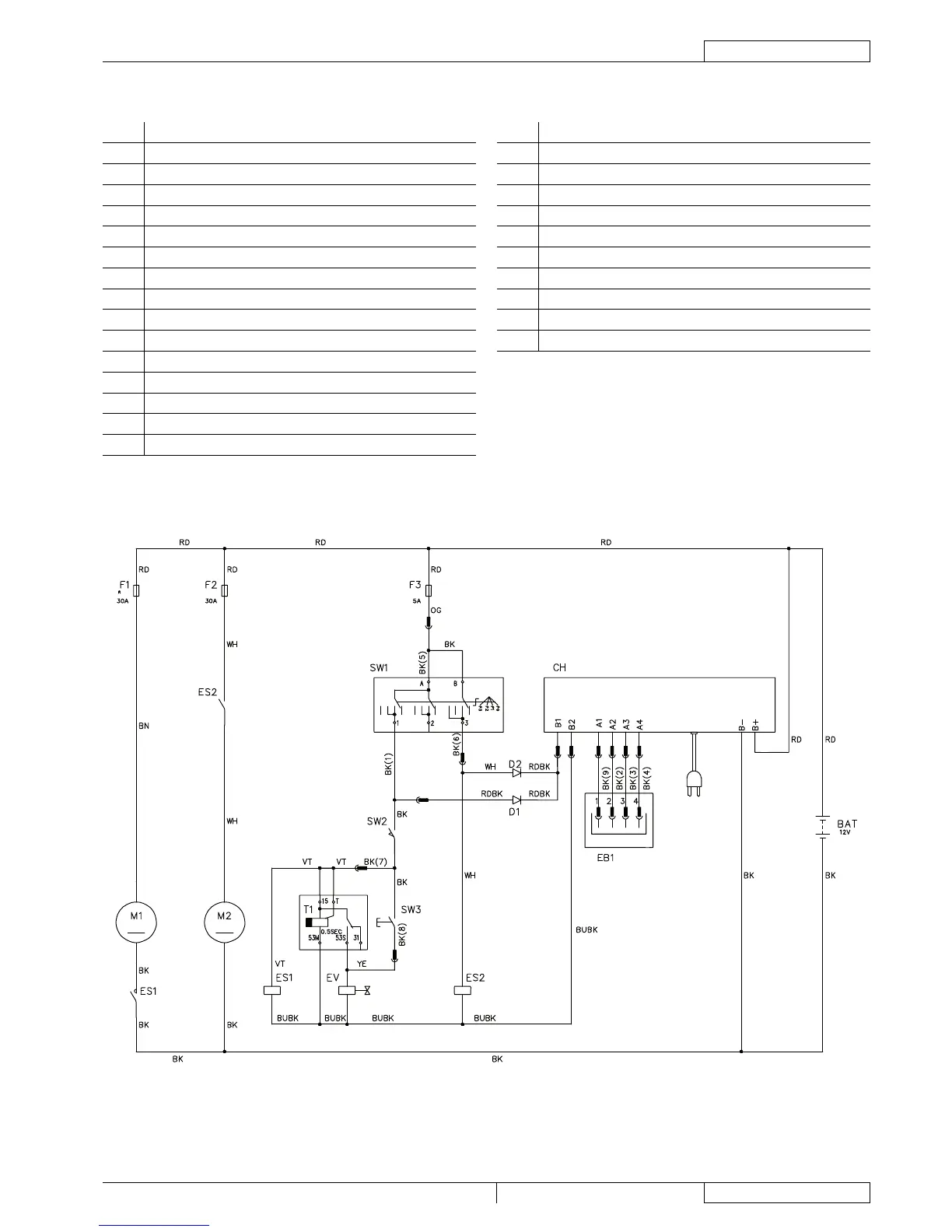

WIRING DIAGRAM
Key
BAT 12 V battery
CH Battery charger
D1 Diode
D2 Diode
EB1 Battery charger electronic board
ES1 Brush motor electromagnetic switch
ES2 Vacuum system motor relay
EV Solution solenoid valve
F1 Brush motor circuit breaker (30 A)
F2 Vacuum system motor fuse (30 A)
F3 Function selector fuse (5 A)
M1 Brush motor
M2 Vacuum system motor
SW1 Function selector
SW2 Brush motor-solenoid valve enabling switch
SW3 Solution rate switch
Color codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
