MACHINE DESCRIPTION

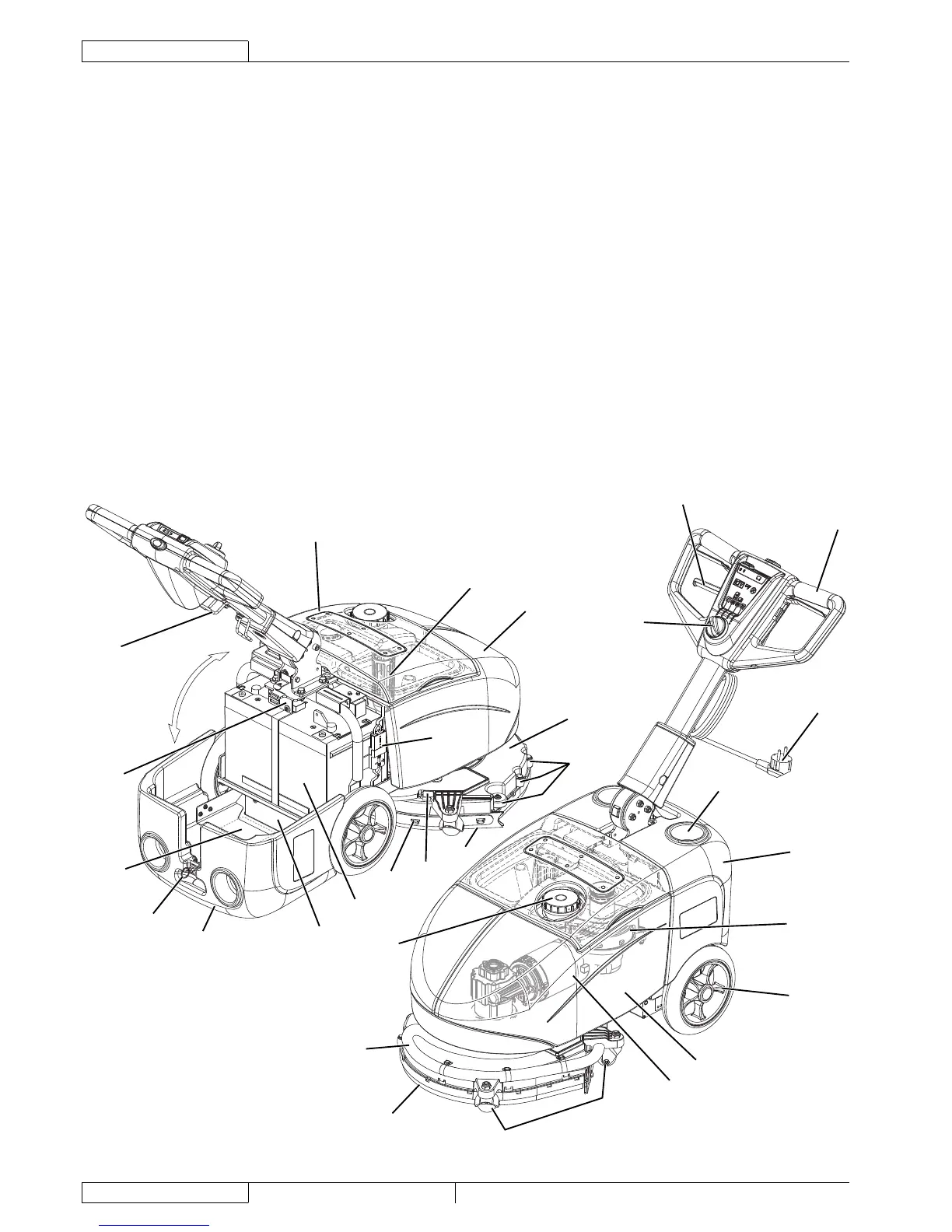

MACHINE STRUCTURE
Handlebar with control panel (see the following paragraph)1.
Handlebar inclination adjusting lever2.
Start-up and program selection knob3.
Accessory and battery compartment cover4.
Cover latch5.
Can holder6.
Battery connection connector7.
GEL/AGM battery8.
Battery charger9.
Battery charger cable10.
Battery charger cable holder11.
Brush/pad-holder deck12.
Brush deck gearmotor13.
Squeegee vacuum hose14.
Splash-shield15.
Deck bumper wheels16.
Deck support wheels17.
Squeegee18.
Squeegee blades assembly19.
Squeegee fasteners20.
Solution tank fi ller plug21.
Solution tank22.
Recovery tank23.
Transparent cover with vacuum grid24.
Vacuum grid with automatic shut-off fl oat25.
Vacuum system motor26.
Serial number plate/technical data27.
Fuses28.
Rear wheels on fi xed axle29.
