SQUEEGEE CLEANING
NOTE
The squeegee must be clean and its blades must be in good conditions in order to get a good drying.
WARNING!
It is advisable to wear protective gloves when cleaning the squeegee because there may be sharp debris.
Drive the machine on a level fl oor.1.
Turn the knob (32) to “0” and disconnect the battery.2.
Fully turn the brush/pad-holder deck (12) counter-clockwise.3.
Disconnect the vacuum hose (A, Fig. 5) from the squeegee.4.
Disengage the fasteners (B) and remove the squeegee (C).5.
Wash and clean the squeegee. In particular, clean the compartments (D) and the vacuum hole (E) from dirt and debris.6.
Check the front blade (F) and the rear blade (G) for integrity, cuts and tears; if necessary replace them (see the procedure in 7.
the following paragraph).
Assemble the components in the reverse order of disassembly.8.
SQUEEGEE BLADE CHECK AND REPLACEMENT
Clean the squeegee as shown in the previous paragraph.1.
Check the front blade (F, Fig. 5) and the rear blade (G) for integrity, cuts and tears; if necessary replace them as shown below. 2.
Also check the front corner (H) of the rear blade for wear; if it is worn, overturn the blade to replace the worn corner with the
other one (I), if it is integral. If the other corner is worn too, replace the blade according to the following procedure:
Remove the blade by disengaging the fasteners (J), la fastening strap (K or M), then replace (or overturn) the blade (G or •
F).
Install the blade by engaging it to the fasteners together with the fastening strap.•
Install the squeegee (C) by installing the fasteners (B) in the relevant brush deck housings.3.
Connect the vacuum hose (A) to the squeegee.4.
A
D
E
F
F
G
H
I
J
J
K
J
M
J
G
D
B
B
C
E
M
K

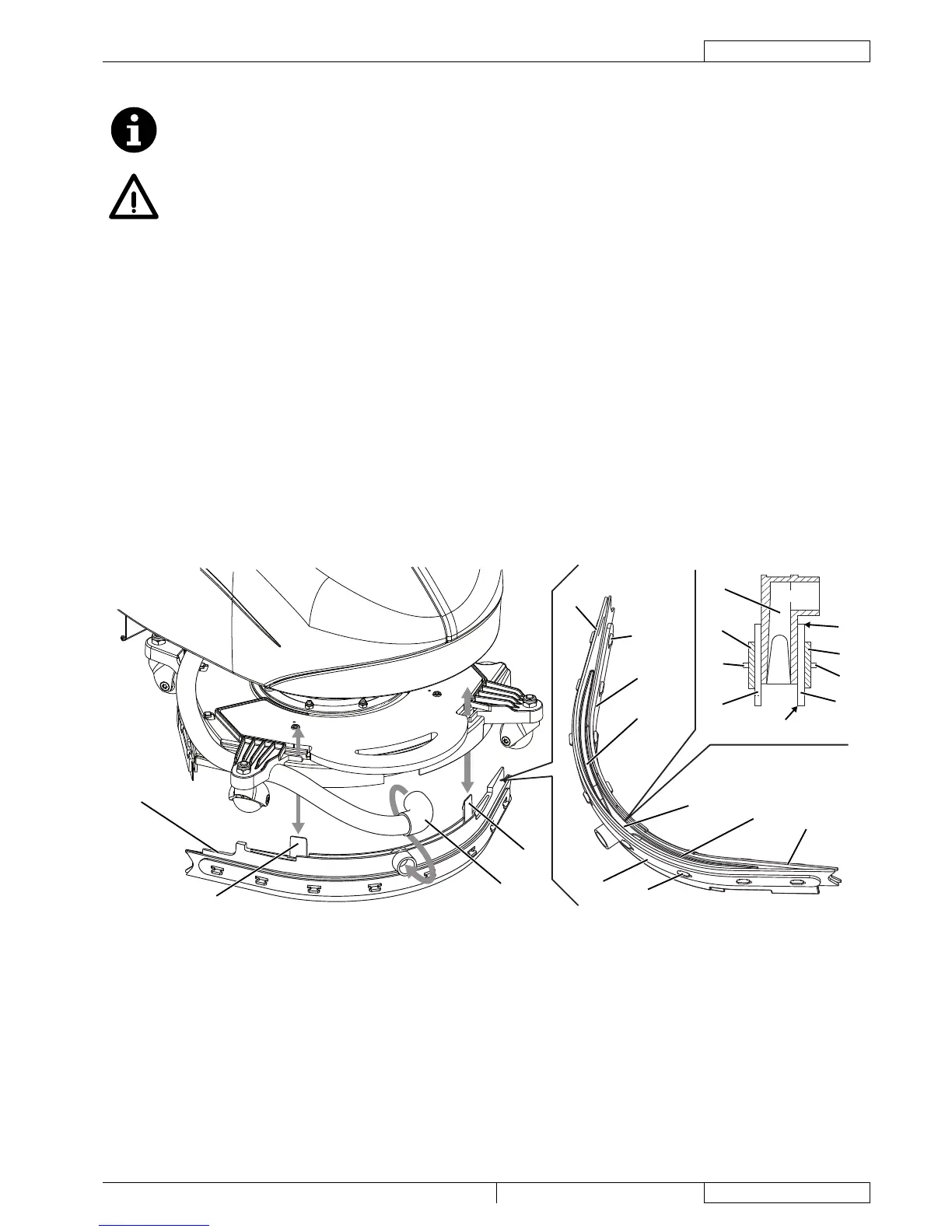

Figure 5
