General Information
11
Service Manual – SC351
Service and Diagnostic Equipment
Besides a complete set of standard meters, the following instruments are necessary to perform fast checks and
repairs on Nilsk-Advance machines:
• Laptop computer charged with the current version of EzParts, Adobe Reader and (if possible) Internet
connection
• Digital Volt Meter (DVM)
• Amp clamp with possibility of making DC measurements
• Hydrometer
• Battery charge tester to check 12 V batteries
• Static control wrist strap
• Dynamometric wrench set
• A copy of the User Manual and Spare Parts List of the machine to be serviced (provided with the machine
or available at www.advance-us.com or other Nilsk-Advance websites).
The following equipment is also available at Nilsk-Advance Centers:

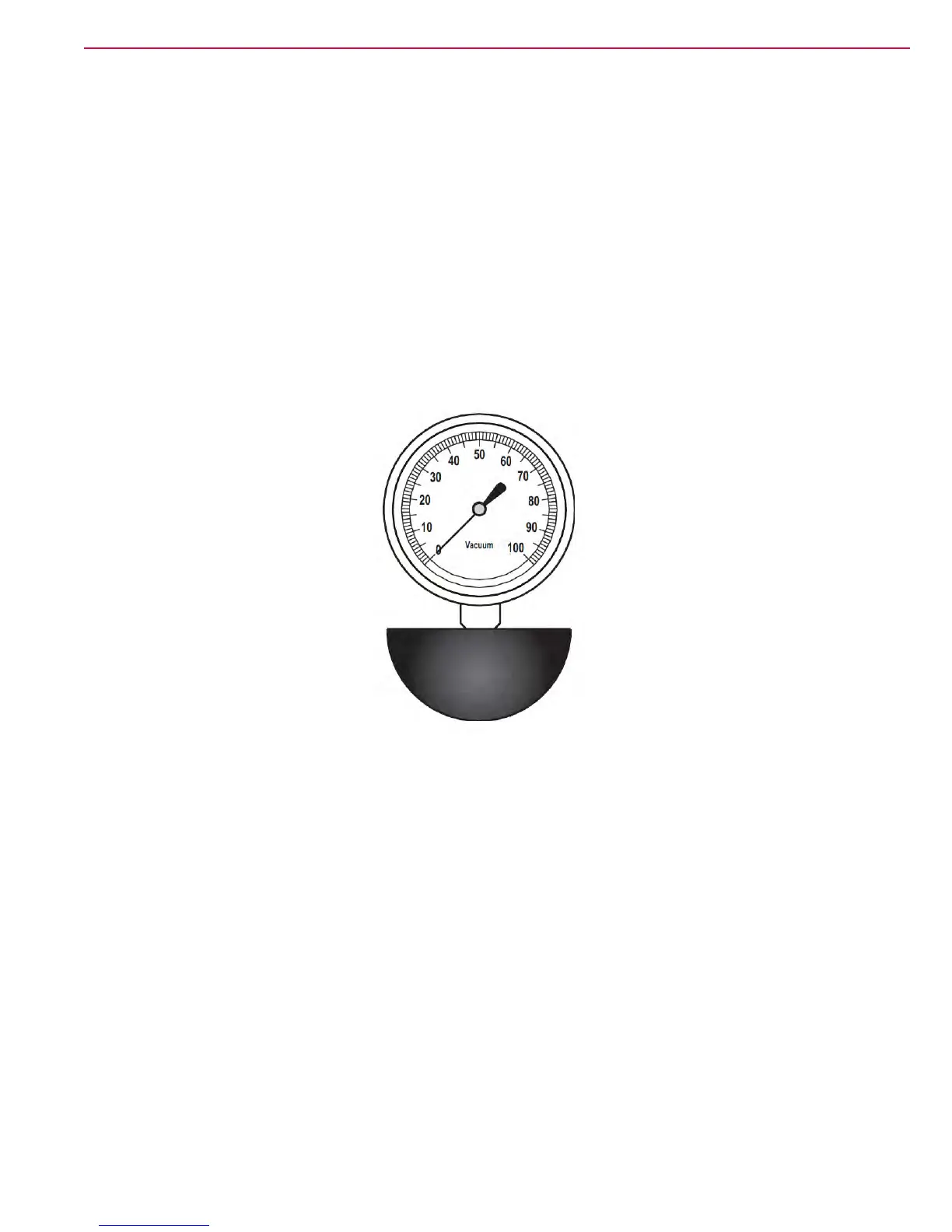

• Vacuum water lift gauge, P/N 56205281
