Electrical System 23Service Manual – SC351

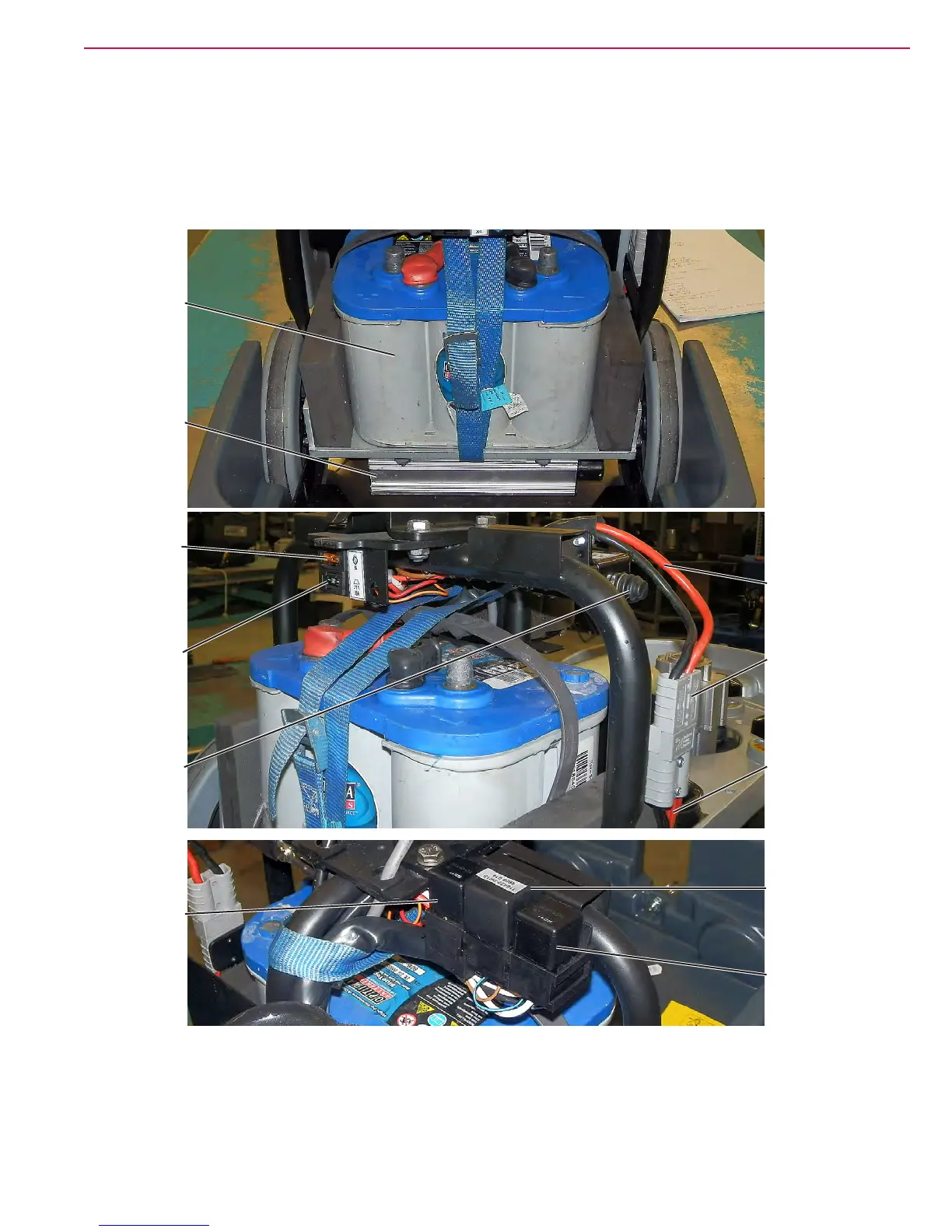

Component Locations
• Battery charger (CH)
• 12V Battery (BAT)
• Connector (C1)
• Battery wiring harness
• Machine wiring harness
• Brush motor fuse (F1)
• Vacuum system motor fuse (F2)
• Function selector fuse (F3)
• Brush motor relay (K1)
• Solenoid valve timer relay (KT1)
• Vacuum system motor relay (K2)
12V Battery (BAT)
Battery charger (CH)
Function selector fuse
(F3)
Vacuum system motor
fuse (F2)
Brush motor fuse (F1)
Brush motor relay (K1)
Vacuum system motor
relay (K2)
Solenoid valve timer
relay (KT1)
Battery wiring harness
Connector (C1)
Machine wiring
harness
P100782
