Solution System 49Service Manual – SC351
Solution System
Functional Description
The solution system supplies the detergent to the brush when cleaning the oor. The solution tank is also the
main machine body. There is a manual valve on the left side of the tank to close the water supply whenever
maintenance must be performed on the machine.
The detergent quantity is adjusted by the operator with the solution ow switch (SW3). The solution ows
from the tank to the tap, through the lter and solenoid valve (EV) and then to the brush deck.
The solenoid valve (EV) is driven by the program selection knob/rotary switch (SW1) when it is turned to 1 or
2, and the machine start-up enabling push-button (SW2).
When the solution ow switch (SW3) is open the solenoid valve (EV) is driven by solenoid valve timer (KT1)
(2 sec. ON - 2 sec. OFF). When the solution ow switch (SW3) is closed the solenoid valve (EV) is always on
(by-pass the solenoid valve timer).
The circuit is protected by the function selector fuse (F3) on the LED electronic board (EB1).
The solenoid valve (EV) opening and closing time, according to the water ow, are shown below:
Solution ow switch (SW3)
setting
Solenoid valve (EV) ON time Solenoid valve (EV) OFF time
0 2 sec 2 sec
1 Always ON -

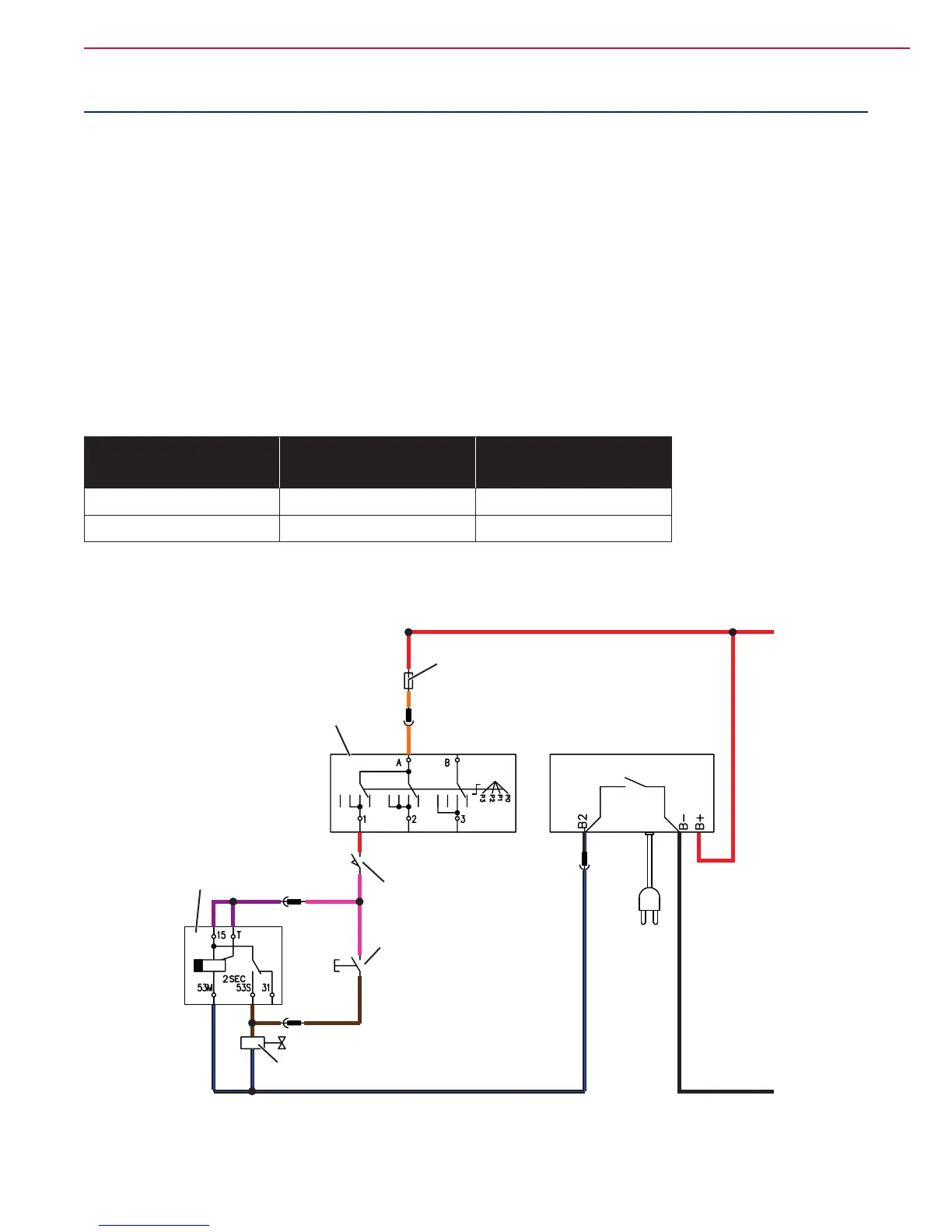

Wiring Diagram
SOLENOID VALVE (EV)
FUNCTION SELECTOR
FUSE (F3)
SOLENOID VALVE
TIMER (KT1)
SOLUTION FLOW
SWITCH (SW3)
BATTERY CHARGER (CH)
MACHINE START-UP
ENABLING
PUSH-BUTTON (SW2)
PROGRAM SELECTION
KNOB/ROTARY SWITCH (SW1)
P100806
