Recovery System 37Service Manual – SC351
Removal and Installation

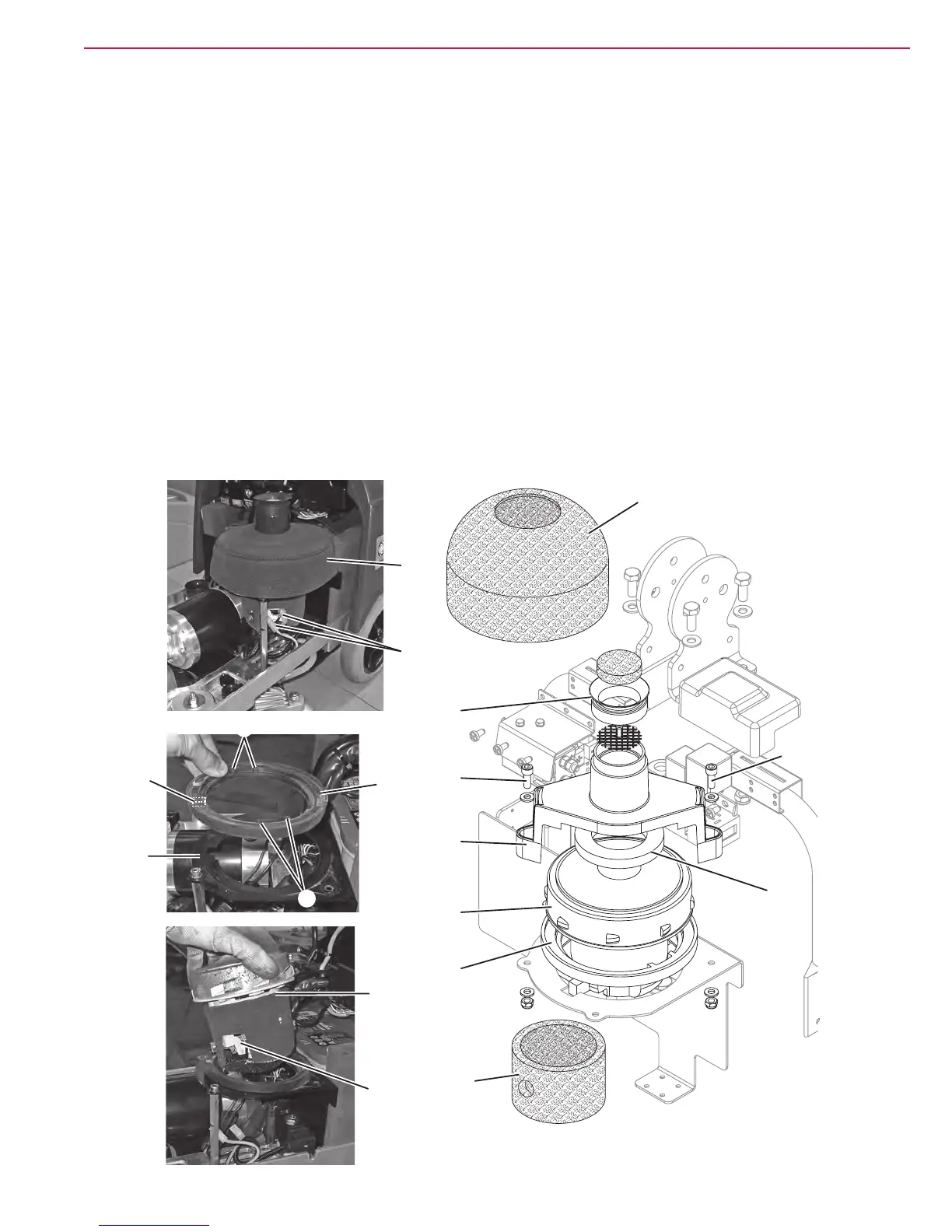

Vacuum System Motor Disassembly/Assembly
Disassembly
1. Remove the solution and recovery water tanks.
2. Make sure that the battery connector is
disconnected.
3. Disconnect the 2 electrical connectors (A) for the
motor (B).
4. Remove the acoustic insulation panel (C).
5. Remove the screws (D), recover the washers and
nuts.
6. Remove the motor cover (E) and recover the
gasket (F).
7. Remove the motor (B) and the acoustic
insulation pipe (G)
8. Check the gasket (F) and the gasket (H) for
damage. If necessary, replace.
Assembly
9. Assemble the components in the reverse order of
disassembly and note the following:
◦ When installing the gasket (I) into the hous-
ing (J) turn it until the lower tooth (K) and
upper teeth (L) are as shown in the gure.
◦ Install the motor (B) with the power supply
contacts as shown in the gure (M).
K
A
B
D
E
B
I
I
J
H
G
D
F
C
B
M
L
L
P100792
