Solution System 53Service Manual – SC351
Removal and Installation
Solenoid Valve Disassembly/Assembly
Disassembly
1. Place the machine on a hoisting system (if
available), then lift it. Otherwise, drive the
machine on a level oor.
2. Make sure that the battery connector is
disconnected.
3. Remove the cover and the solution and recovery
water tanks.
4. Remove the solenoid valve power supply
connector (A).
5. Disconnect the hoses (B) and (C) under the
machine.
6. Remove the screws (D) and recover the washers.
7. Remove the solenoid valve (E) upwards.
Assembly
8. Assemble the components in the reverse order of
disassembly and note the following:
When assembling the solenoid valve (E),
the stamped arrow (F) must be tuned in the
direction of the solution ow as shown in the
gure.

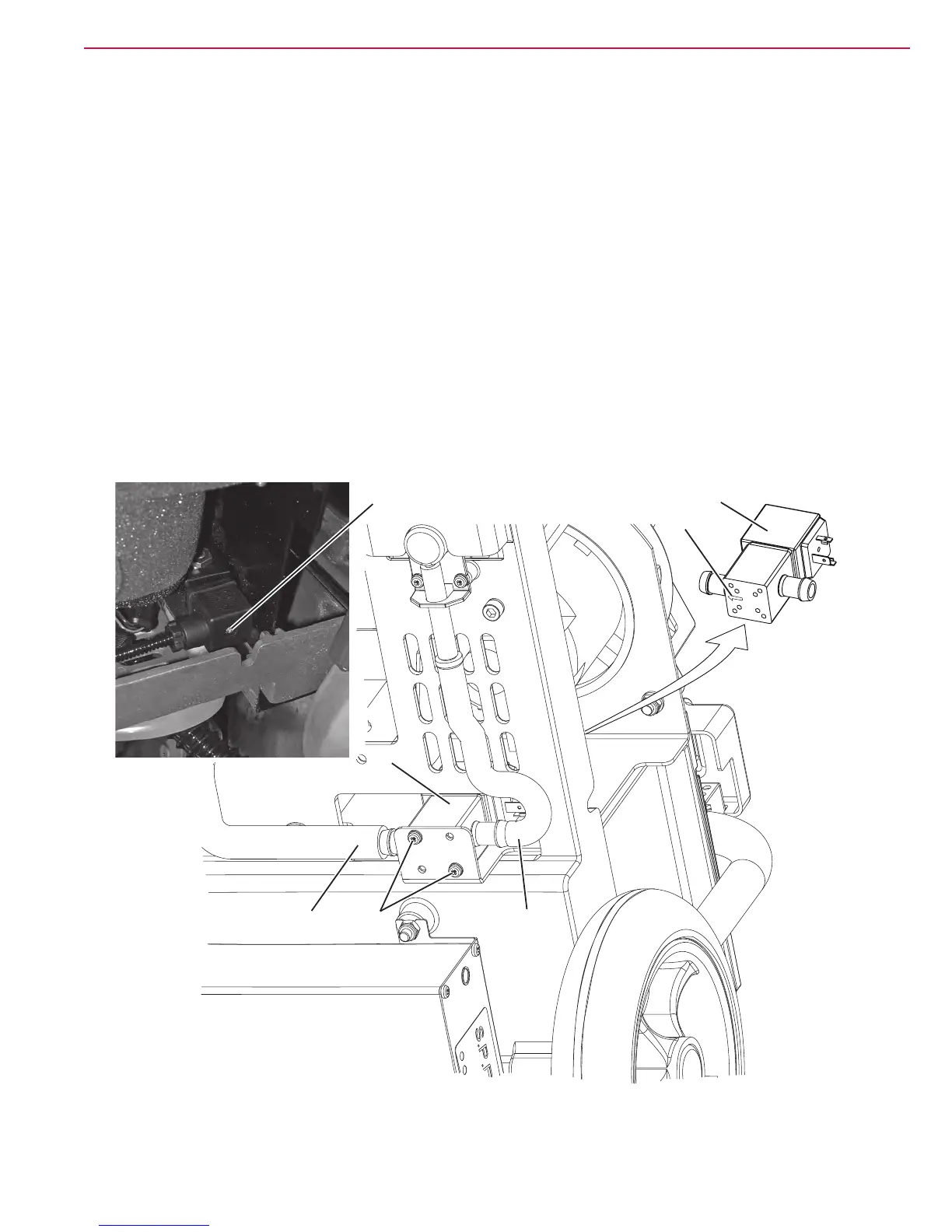

BD C
E
A
E
F
P100808
