100Service Manual – SC401, SCRUBTEC 344 20 - Wheel System, Traction
Drive System Gearmotor (continues)
7. Retrieve the 2 keys (E), the 2 washers (F) and the 2 circlips (G).
8. Unscrew the 3 screws (H) from the brush deck levers and retrieve the bushings.
9. Remove the clamp (I) and disconnect the Drive system gear motor (J).
10. Unscrew the 4 screws (K) and retrieve the washers, then remove the Drive system gear motor (L).

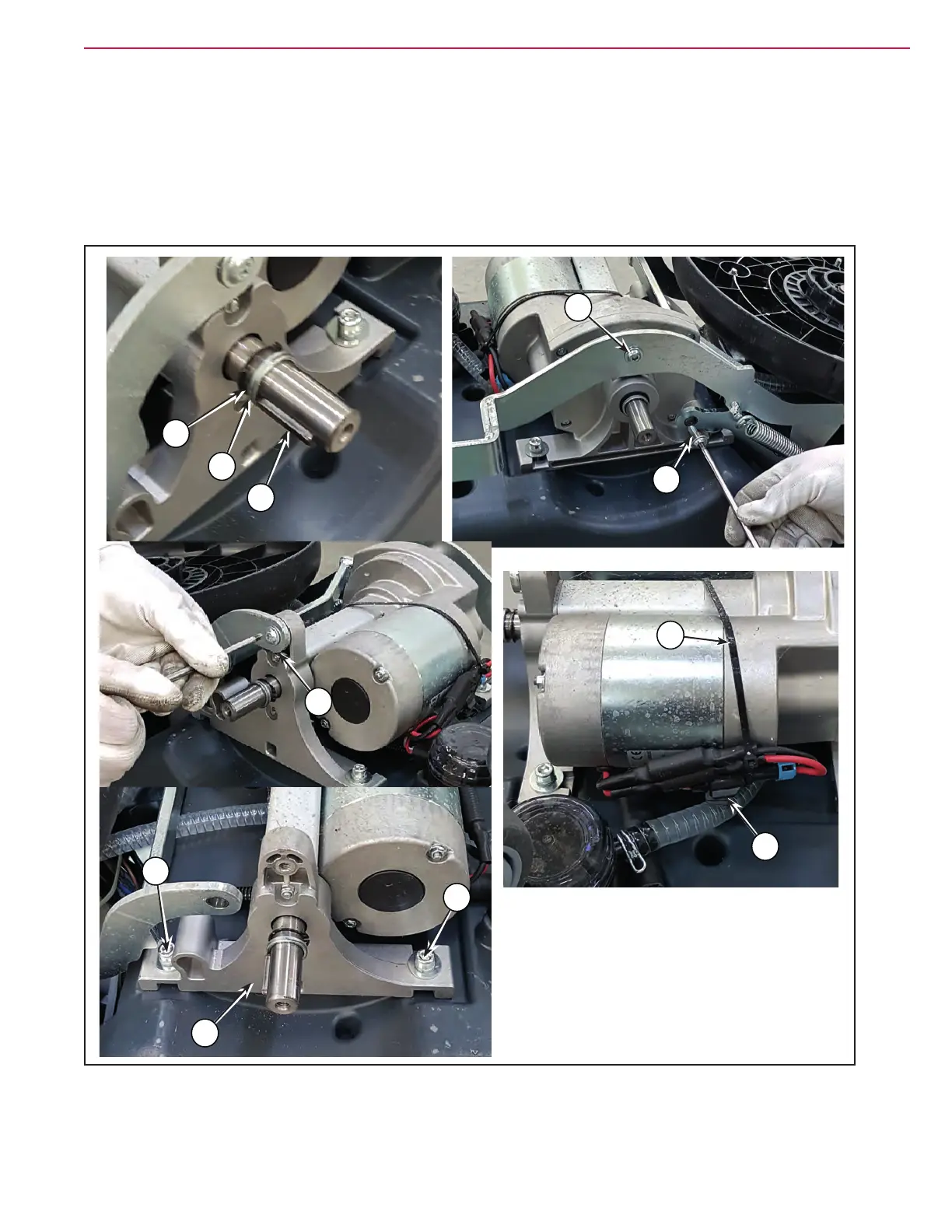

Figure 10:
K
J
I
K
L
E
F
H
H
H
G
11. Assemble the components in the reverse order of disassembly.
