Nilfisk-Advance SC401 Series - Removal and Installation; Spring on the Squeegee Support

156Service Manual – SC401, SCRUBTEC 344 38 - Squeegee System
Removal and Installation
Spring on the Squeegee Support
Removal
1. Drive the machine on a level oor or on a hoisting system to facilitate the disassembly procedures.
2. Remove the squeege from the squeegee support (A), then lower the squeegee support by slowly to the
oor.
3. Press lighly the spring (B) then remove it with its pair of spring plastic retainers.
Installation
4. Assemble the components in the reverse order of disassembly and note the following:
◦ Mount the spring with its pair of spring plastic terminals as shown of the picture (C).

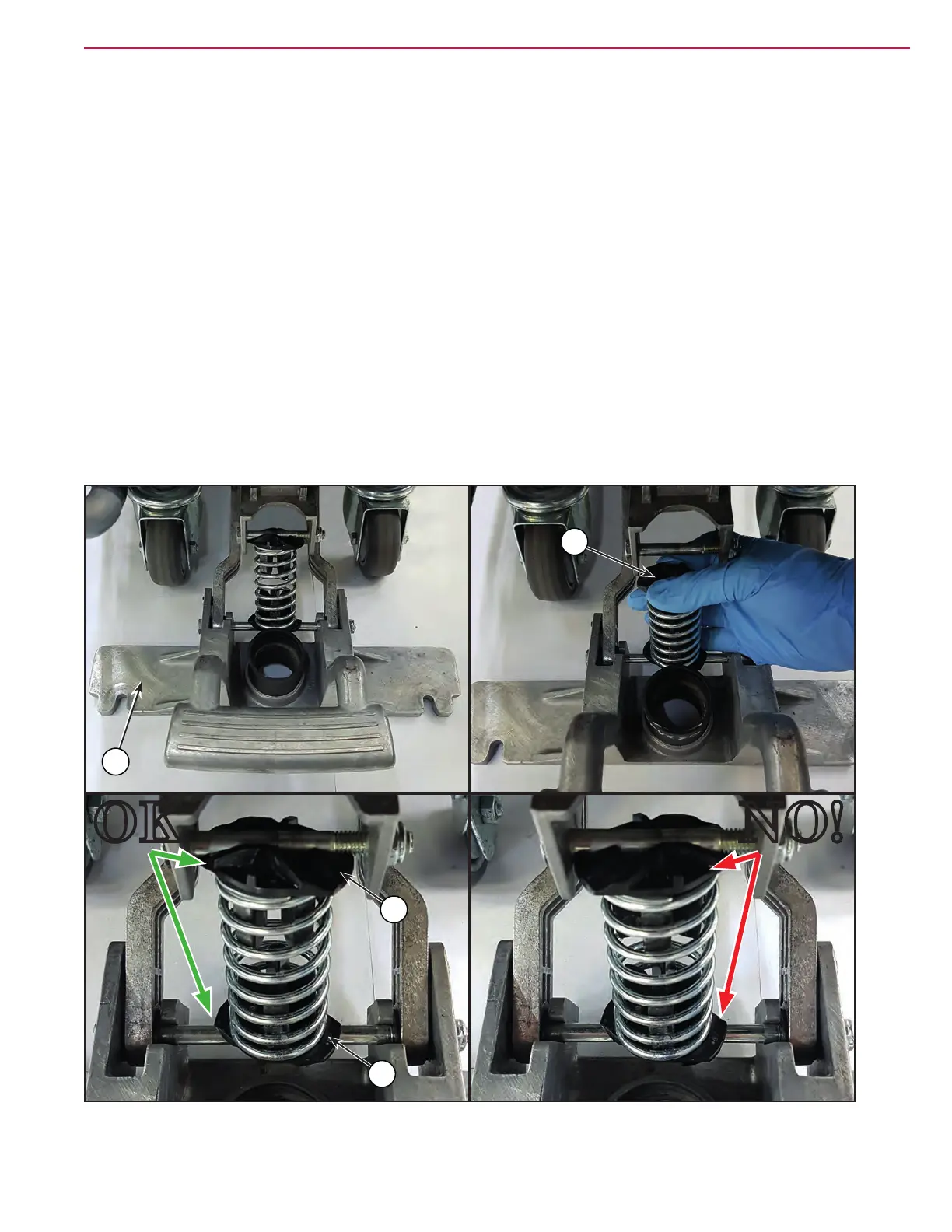

Figure 4:
A
C
C
B
OK NO!
