Nilfisk-Advance SC401 Series - Component Locations

109Service Manual – SC401, SCRUBTEC 344 24 - Electrical System (Battery)
Component Locations

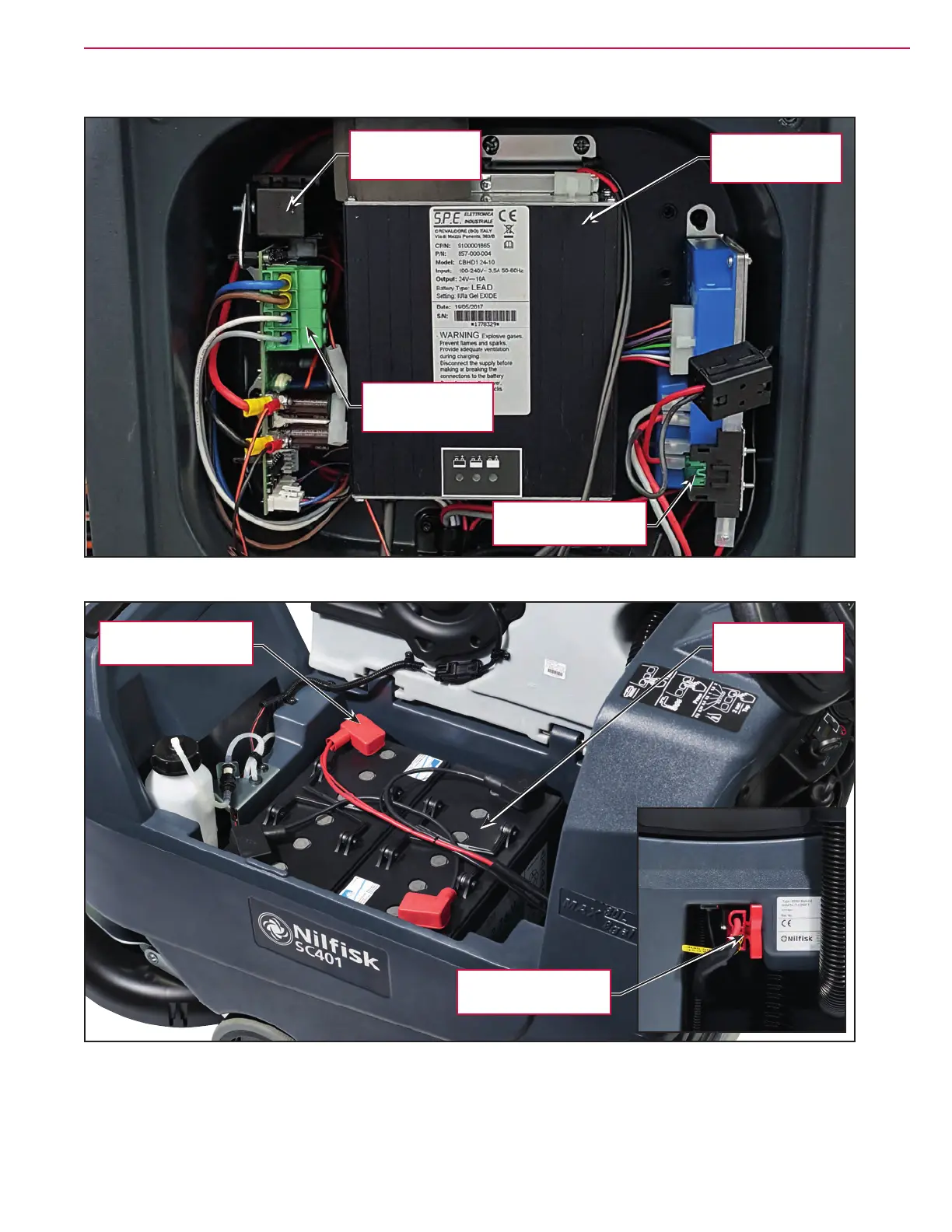

Figure 2:
Battery charger (CH)
Main machine
controller (EB1)
Main machine
controller relay (ES1)
Drive motor fuse (F1)
Figure 3:
Batteries (BAT)
Battery connections
Battery red connector
