34Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Maintenance and Adjustments
Parameter Machine Settings
Parameters can be viewed by connecting the NEO Service Tool module, P/N 101221030 (A) to the Main
Machine Controller (EB1) (B).
1. If equipped remove the ignition key, then disconnect the red battery connector.
2. Unscrew the 4 screws and remove the electronic component compartment cover.

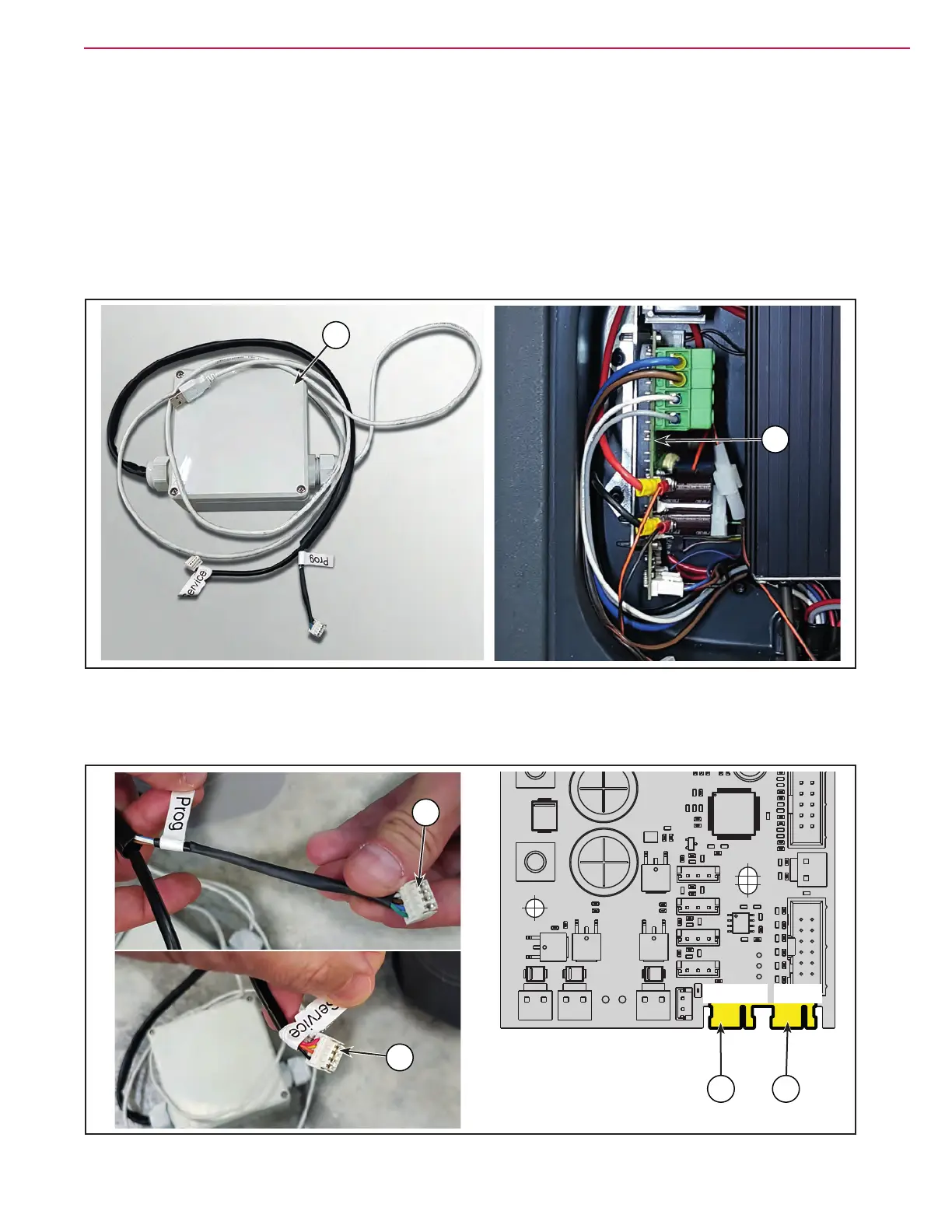

Figure 5:
A
B
3. Connect the cable marked PROG (C) to connector (D) and the cable marked SERVICE (E) to connector
(F) on the Main Machine Controller (EB1).
SERVICE
PROG
Figure 6:
F
D
C
E
