Nilfisk-Advance SC401 Series - Component Locations

160Service Manual – SC401, SCRUBTEC 344 40 - Recovery System
Component Locations

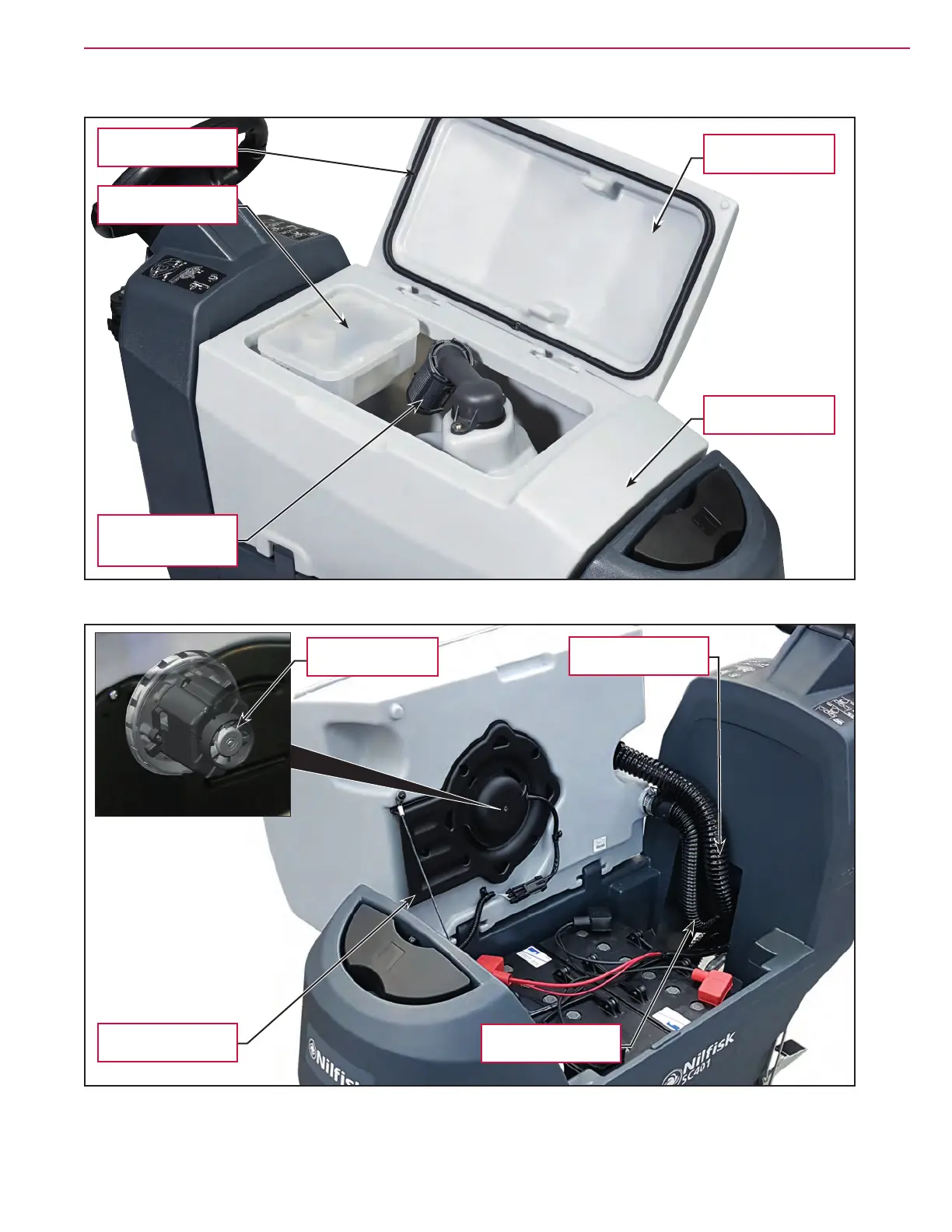

Figure 2:
Recovery tank cover
Recovery tank
Vacuum grid with
automatic shut-o󰀨
oat
Container with debris
collection grid
Cover gasket
Figure 3:
Motor protection case
Squeegee vacuum
hose
Recovery water drain
hose
Vacuum motor (M2)
