115Service Manual – SC401, SCRUBTEC 344 24 - Electrical System (Battery)
Battery Charging (continues)
Battery Charging with On-Board Battery Charger Installed on the Machine
1. Connect the on-board battery charger cable to the electrical mains. Electrical mains voltage and
frequency must be compatible with the on-board battery charger values shown on the machine serial
number plate.
Note: When the on-board battery charger is connected to the electrical mains, all machine
functions are automatically cut off.
2. If the RED LED (A) on the on-board battery charger inspection window stays on, the on-board battery
charger is charging the batteries.
3. When the YELLOW LED (B) turns on, the battery charging cycle is nearly completed.
4. When the GREEN LED (C) turns on, the battery charging is completed.

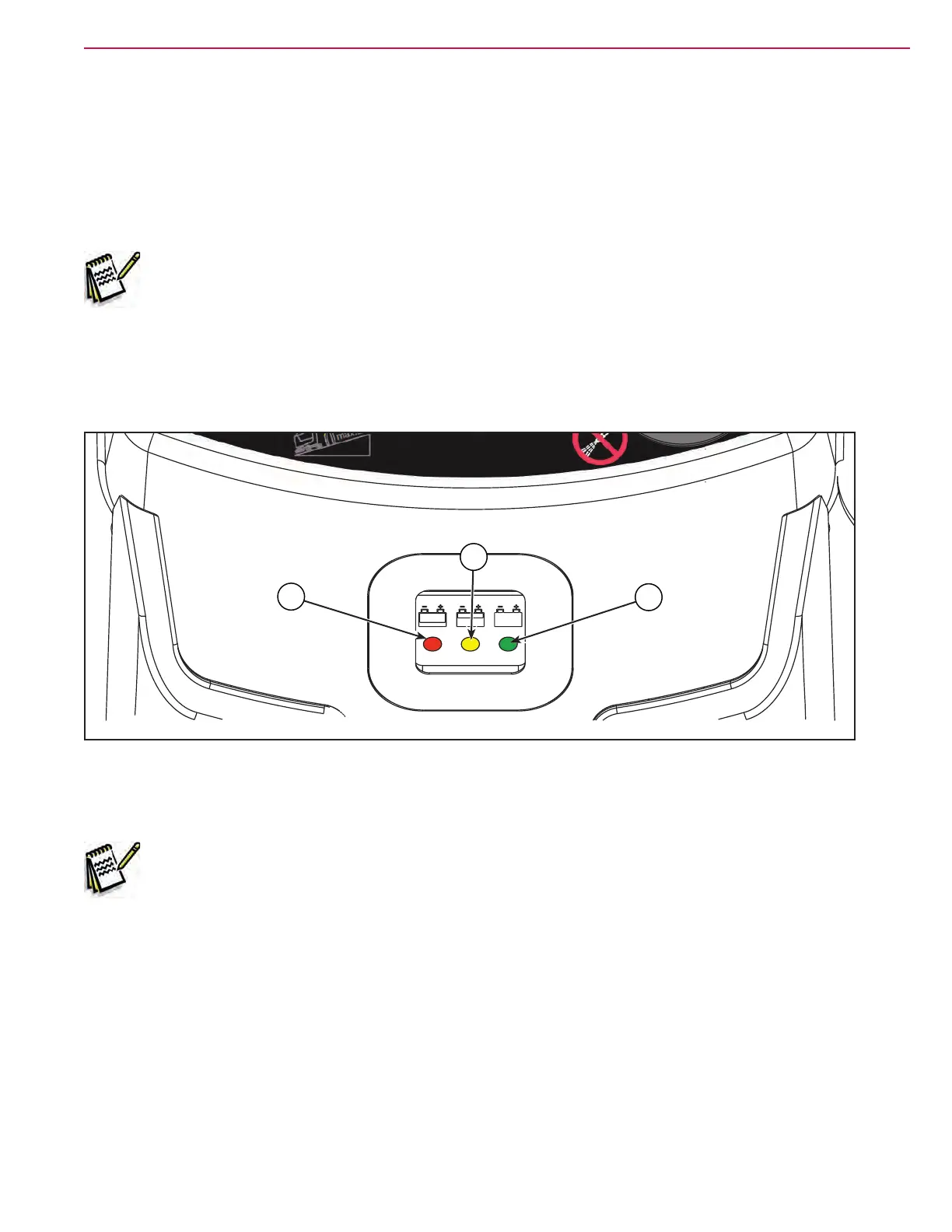

Figure 9:
A
B
C
5. When the battery charging is completed, disconnect the on-board battery charger cable from the
electrical mains and wind it round its housing.
Note: For further information about the on-board battery charger operation, see the relevant
Manual.
