43Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Main Machine Controller (EB1) (continues)
5. Unscrew the 2 screws (Q) and pull out the Main machine controller (R) with his support bracket.
6. Unscrew the 4 screws (S) and cerefully remove the Main machine controller (T).

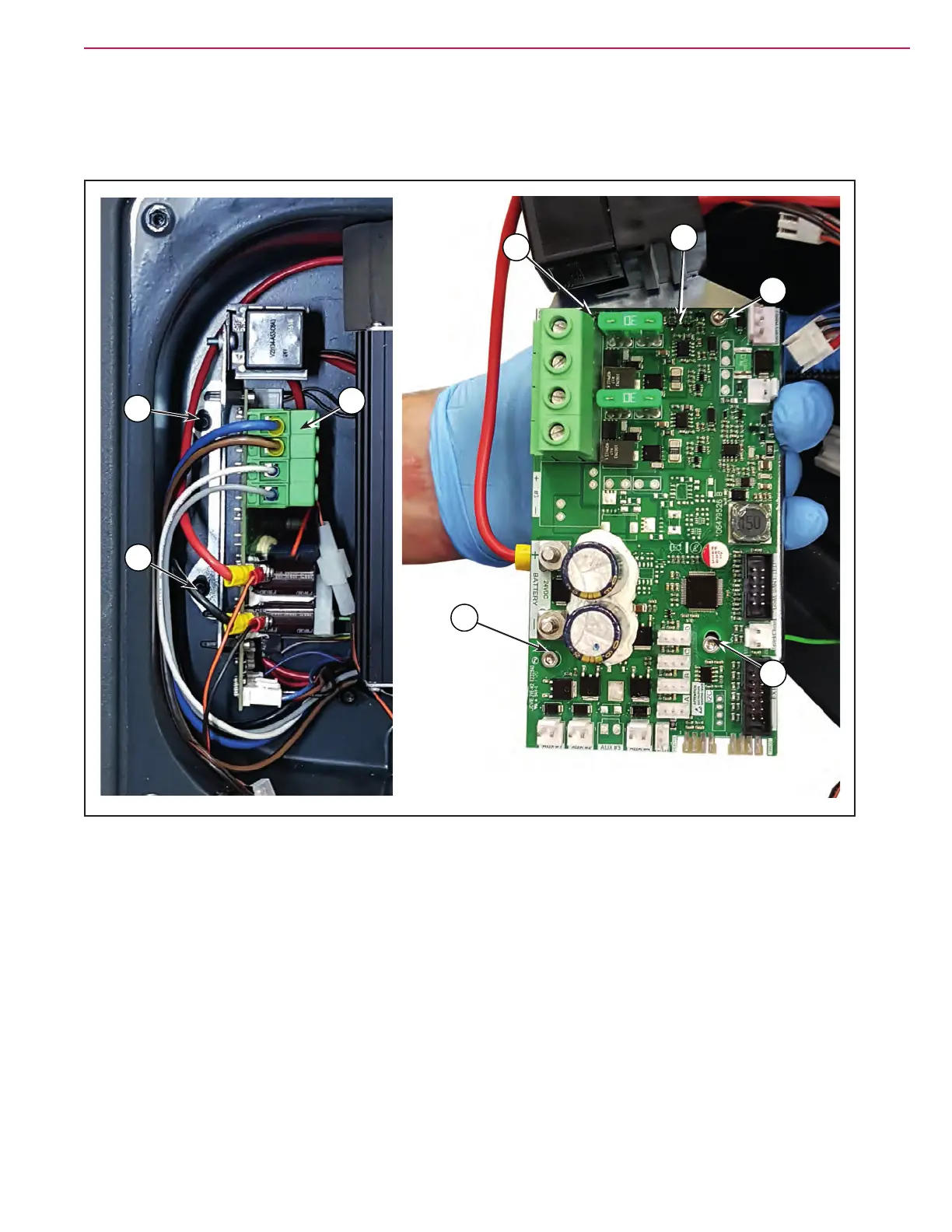

Figure 21:
Q
Q
R
S
S
S
S
T
7. Assemble the components in the reverse order of disassembly.
