57Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Main Machine Controller (EB1) (continues)

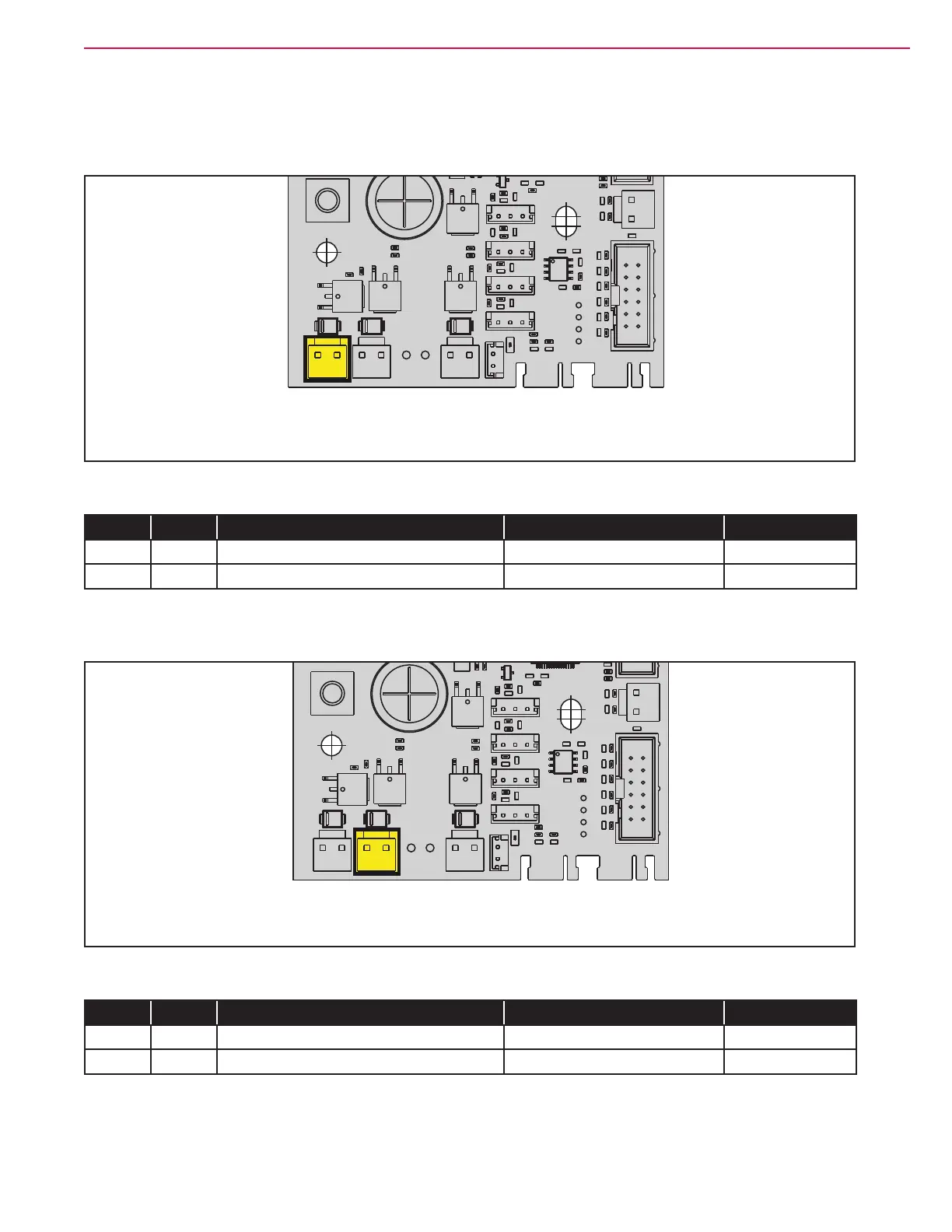

Solenoid Valve
1 2
Figure 43:
PIN Color Description Measured Comments
1 Blue Solenoid valve power supply + 23.56 V All levels
2 Brown Solenoid valve power supply - 0.070 V Max level
Detergent Pump
1 2
Figure 44:
PIN Color Description Measured Comments
1 Red Detergent pump power supply + 23.51 V All levels
2 Black Detergent pump power supply - 0.052 V Max level
