Nilfisk-Advance SC450 User Manual

ENGLISH INSTRUCTION FOR USE
10 SC450 - 9099589000
8/12

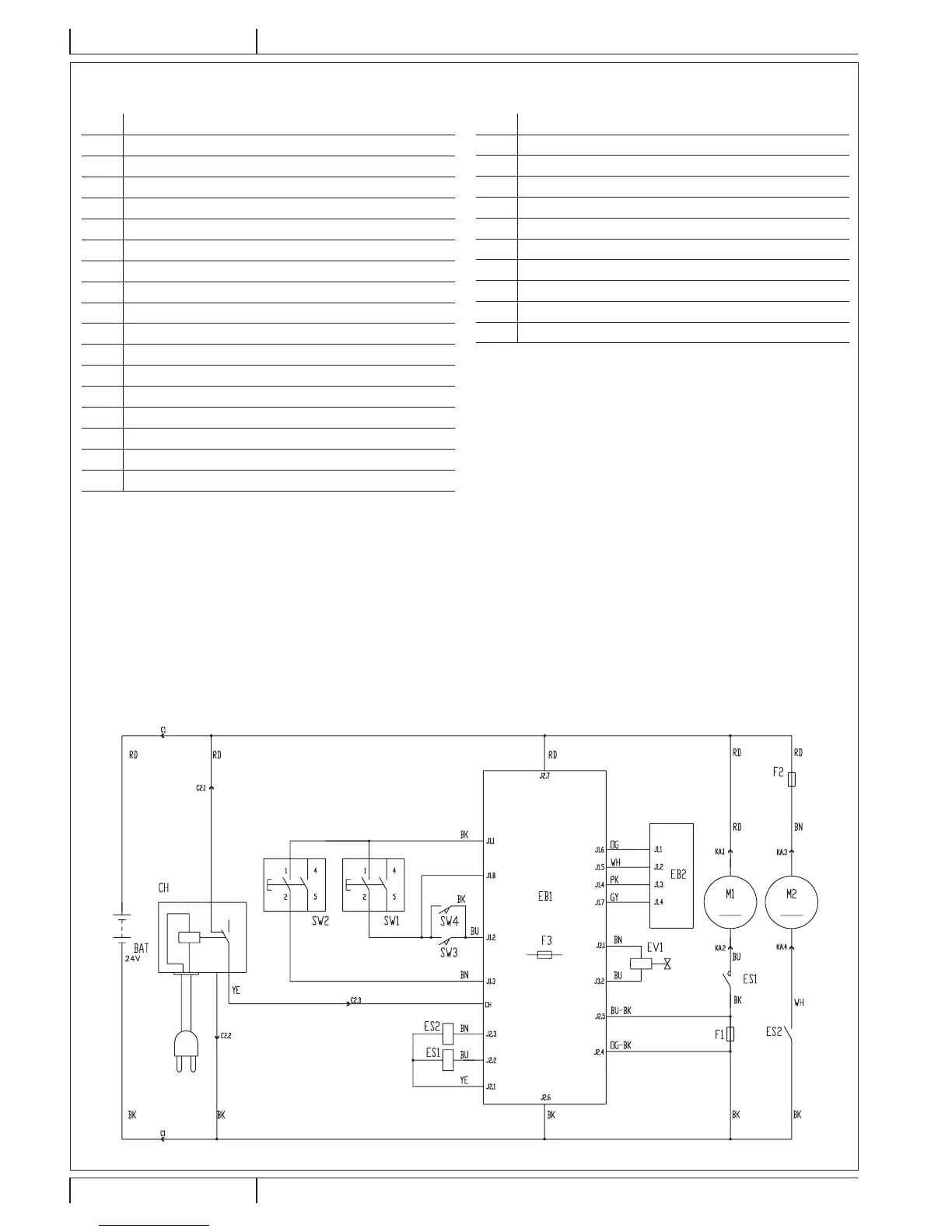

WIRING DIAGRAM
Key
BAT
24 V batteries
C1
Battery connector
C2
Battery charger connector (optional)
CH Battery charger (optional)
EB1 Function electronic board
EB2 Electronic board LEDs
ES1 Brush/pad motor electromagnetic switch
ES2 Vacuum system motor relay
EV1
Solution solenoid valve
F1
Brush motor fuse (40 A)
F2 Vacuum system motor fuse (30 A)
F3 Solenoid valve and electronic board fuse (5 A)
M1 Brush/pad-holder motor
M2 Vacuum system motor
SW1 Brush/pad-holder switch
SW2 Vacuum system switch
SW3 Brush switch
SW4 Brush switch
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100660
