NEDERLANDS GEBRUIKSAANWIJZING
16 SR 1601 D3 / LPG3 / P3 - 33019216

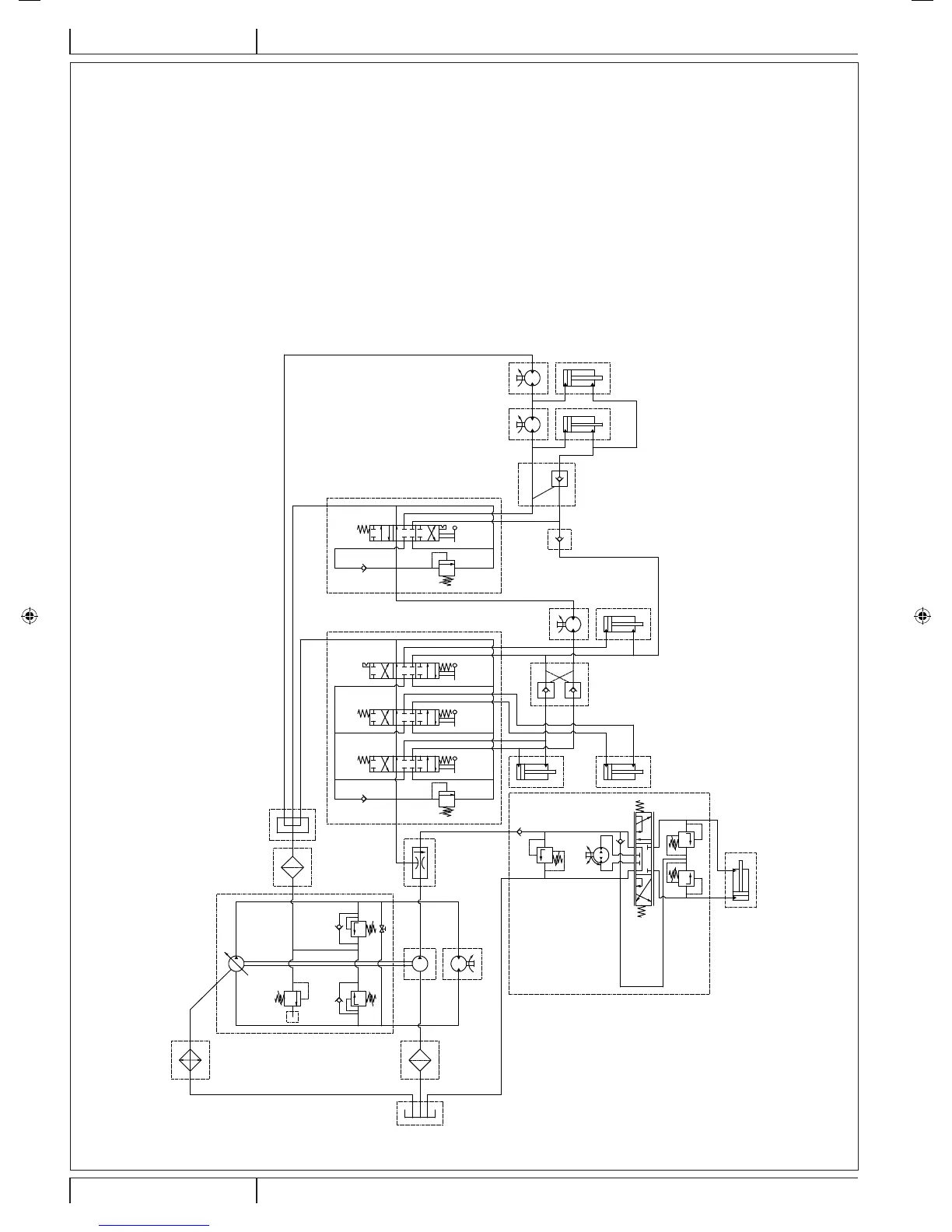

HYDRAULISCH SYSTEEM
Legende
1. Olietank
2. Olielter
3. Pomp voor aandrijvingssysteem
4. Bedieningspomp
5. Motor aandrijfsysteem
6. Stuurbekrachtiging
7. Cilinder stuurinrichting
8. Voorkeurklep
9. Verdeler 3 hendels
10. Cilinder container
11. Cilinder ap
12. Motor hoofdborstel
13. Cilinder hoofdborstel
14. Verdeler 1 hendel
15. Motor zijborstel rechts
16. Cilinder zijborstel rechts
17. Enkelvoudige blokkeerklep
18. Terugslagklep
19. Dubbele blokkeerklep
20. Spruitstuk
21. Motor zijborstel links (optioneel)
22. Cilinder zijborstel links (optioneel)
23. Radiateur
20
9
11
10
13
12
14
15
21
16
17
18
19
22
1
2
23
3
4
5
6
7
8
2
P100328
