USER MANUAL ENGLISH
33019216 - SR 1601 D3 / LPG3 / P3 9
MACHINE DESCRIPTION

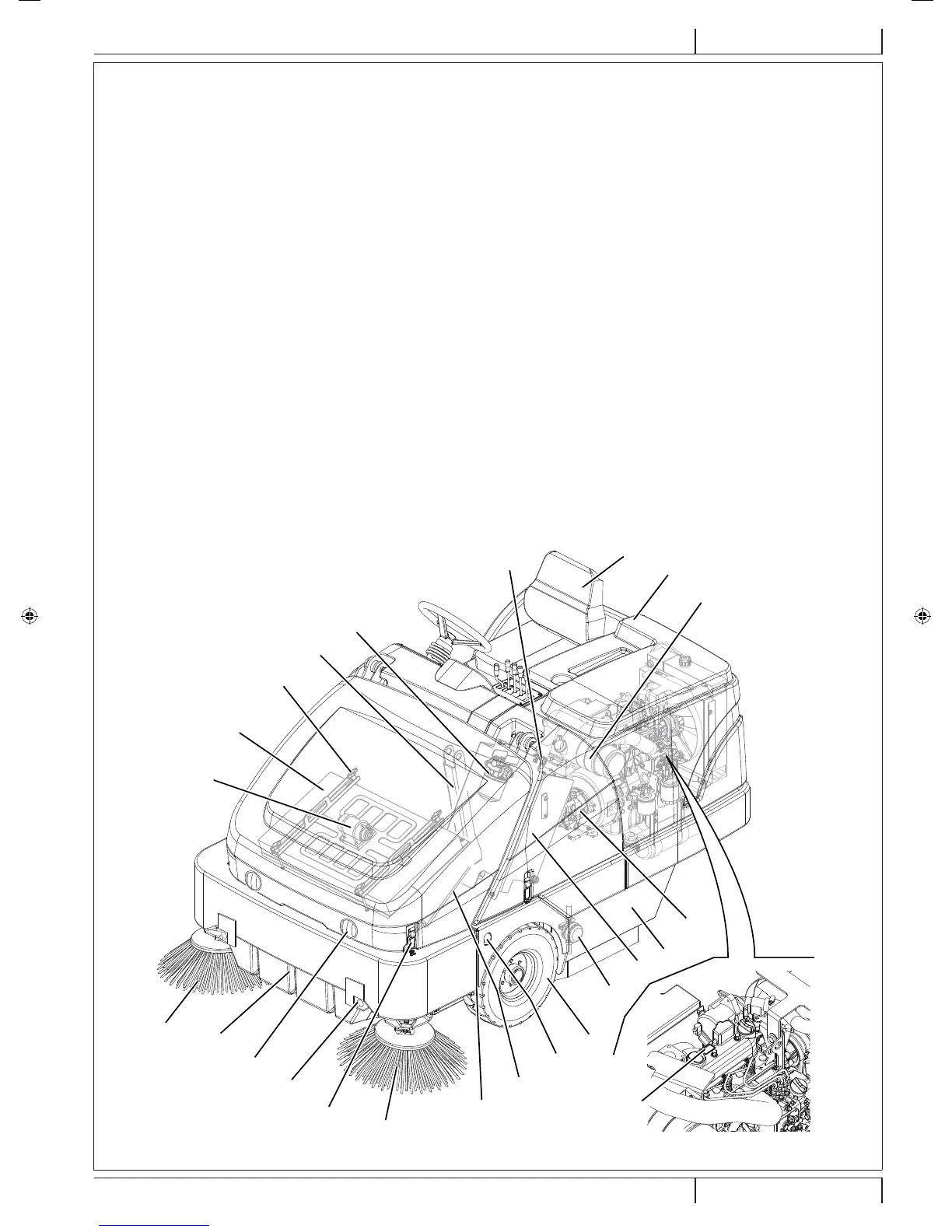

MACHINE STRUCTURE
1. Engine compartment hood
2. Left side main broom access panel
3. Battery
4. Left side hood, or dust guard system water tank (optional)
5. Hopper safety support
6. Hopper hood latch
7. Working light (optional)
8. Jacking locations (rear location is under the engine
radiator)
9. Right side broom
10. Serial number plate/technical data/conformity certication
11. Dust lter shaker assembly
12. Hopper dust lter
Panel lter (standard)
Closed pocket lter (optional)
13. Filter shaker assembly mounting knobs
14. Hydraulic oil lter
15. Left side broom (equipped on SR 1601 MAXI)
16. Hopper hood
17. Hopper hood support rod
18. Right side main broom access panel
19. Hydraulic oil tank
20. Hydraulic oil tank plug
21. Fuel tank cap
22. Fuel tank
23. Radiator plug
24. Engine air lter
25. Engine compartment hood unlocking push-button
26. Tie-down locations (3)
27. Air lter service indicator
28. Dust guard system nozzles (optional)
29. Dust guard system water tank plug (optional)
30. Water lter (optional)
31. Engine model and serial number plate
1
2
45
31
4
32
19
30
8
5
15
9
6
7
11
12
13
14
20
17
28
47
43
26
P100317
33019216(4)2012-03 A.indb 9 10/04/2012 15:52:47
