ENGLISH USER MANUAL
10 SR 1601 D3 / LPG3 / P3 - 33019216

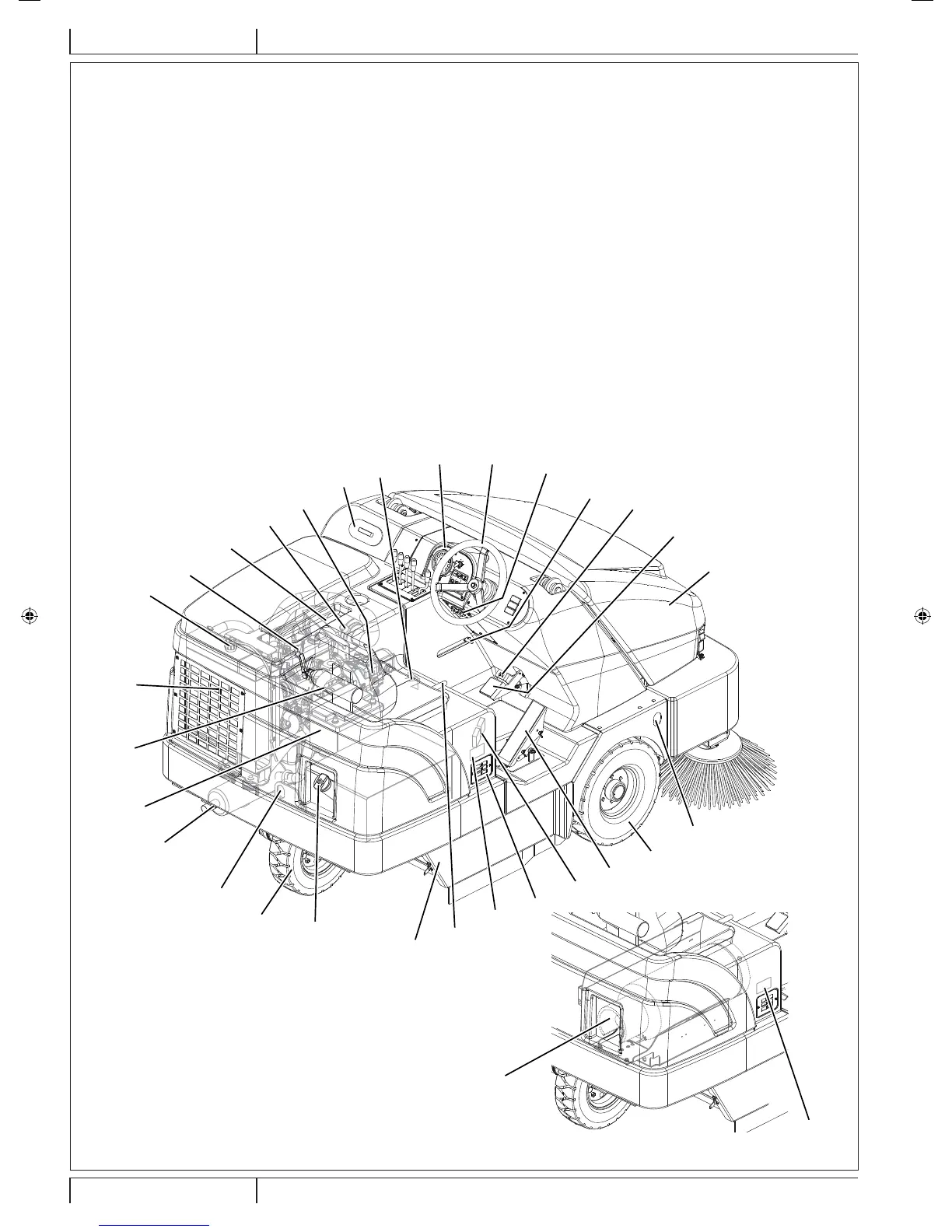

MACHINE STRUCTURE (Continues)
32. Driver’s seat
33. Control panel (see the following paragraph)
34. Steering wheel
35. Brake pedal
36. Parking brake pedal
(To engage/disengage the parking brake, use
simultaneously with the brake pedal)
37. Forward/reverse gear pedal
38. Fuse panel (see the Fuse Check/Replacement/Reset
paragraph)
39. Hopper safety support handle
• Pull backward to lock the support
• Push forward to unlock the support
40. Driver’s seat adjustment lever
41. Engine air grid
42. Rear driving and steering wheel
43. Front wheels
44. Motor
45. Hydraulic pump
46. Engine coolant/hydraulic oil radiator
47. Hopper
48. Fuses (see the Fuse Check/Replacement/Reset
paragraph)
49. Fire extinguisher (optional)
50. LPG cylinder
3
23
24
27
25
29
26
26
8
21
18
4
10
0
41
43
44
45
46
49
42
33 34
36
37
48
38
39
35
16
50
10
P100318
33019216(4)2012-03 A.indb 10 10/04/2012 15:52:49
