DEUTSCH BETRIEBSANLEITUNG
16 SR 1601 D3 / LPG3 / P3 - 33019216

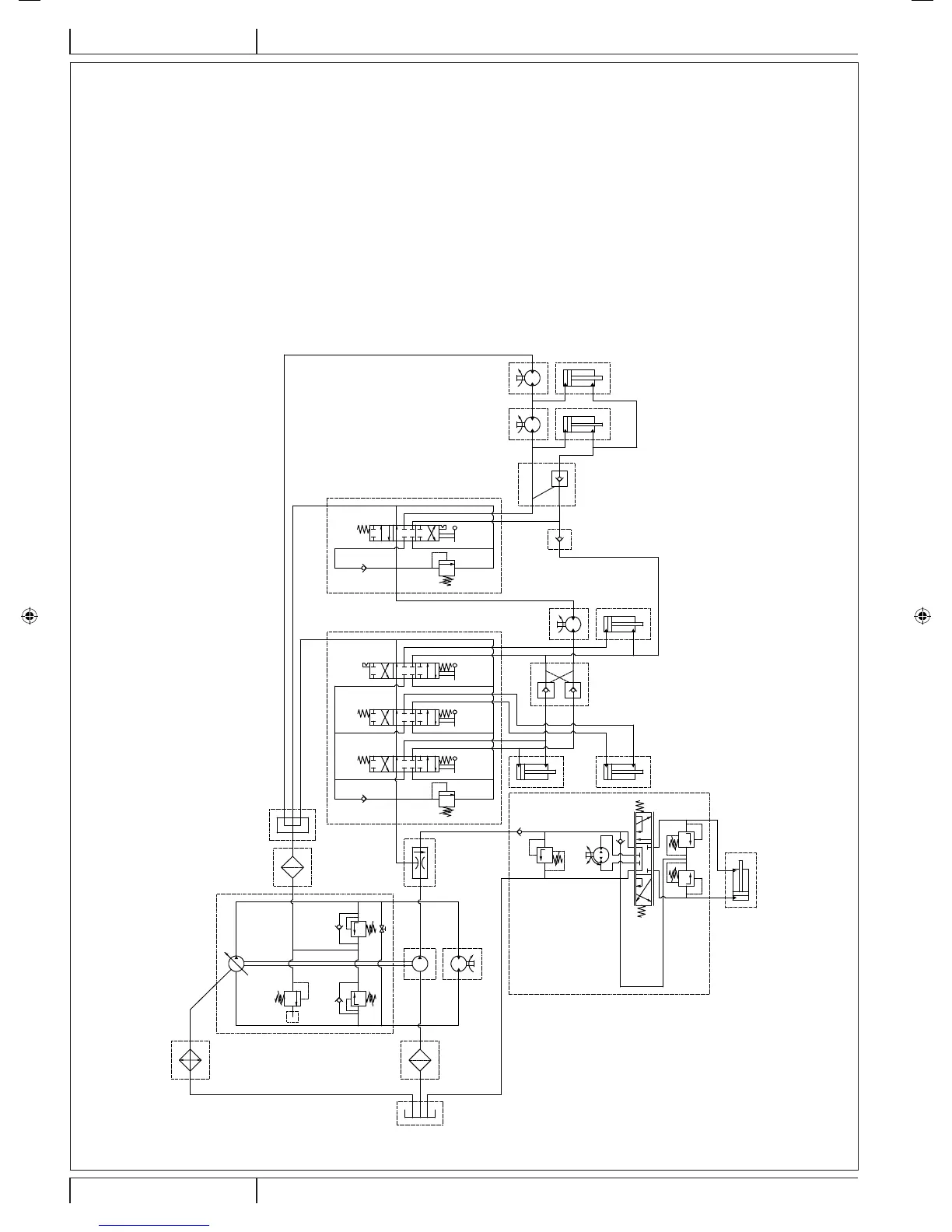

HYDRAULIKPLAN
Legende
1. Öltank
2. Öllter
3. Pumpe Antriebsanlage
4. Pumpe Hilfssysteme
5. Motor Antriebsanlage
6. Servolenkung
7. Zylinder Lenkung
8. Hauptventil
9. 3-Hebel-Steuergerät
10. Zylinder Abfallbehälter
11. Zylinder Schmutzfangklappe
12. Hauptkehrwalzenmotor
13. Zylinder Hauptkehrwalze
14. 1-Hebel-Steuergerät
15. Motor rechter Seitenbesen
16. Zylinder Seitenbesen rechts
17. Einfachabsperrventil
18. Rückschlagventil
19. Doppelabsperrventil
20. Kollektor
21. Motor linker Seitenbesen (optional)
22. Zylinder Seitenbesen links (optional)
23. Kühler
20
9
11
10
13
12
14
15
21
16
17
18
19
22
1
2
23
3
4
5
6
7
8
2
P100328
