DEUTSCH BETRIEBSANLEITUNG
8 SCRUBTEC 233 9097883000(1)2008-06 A

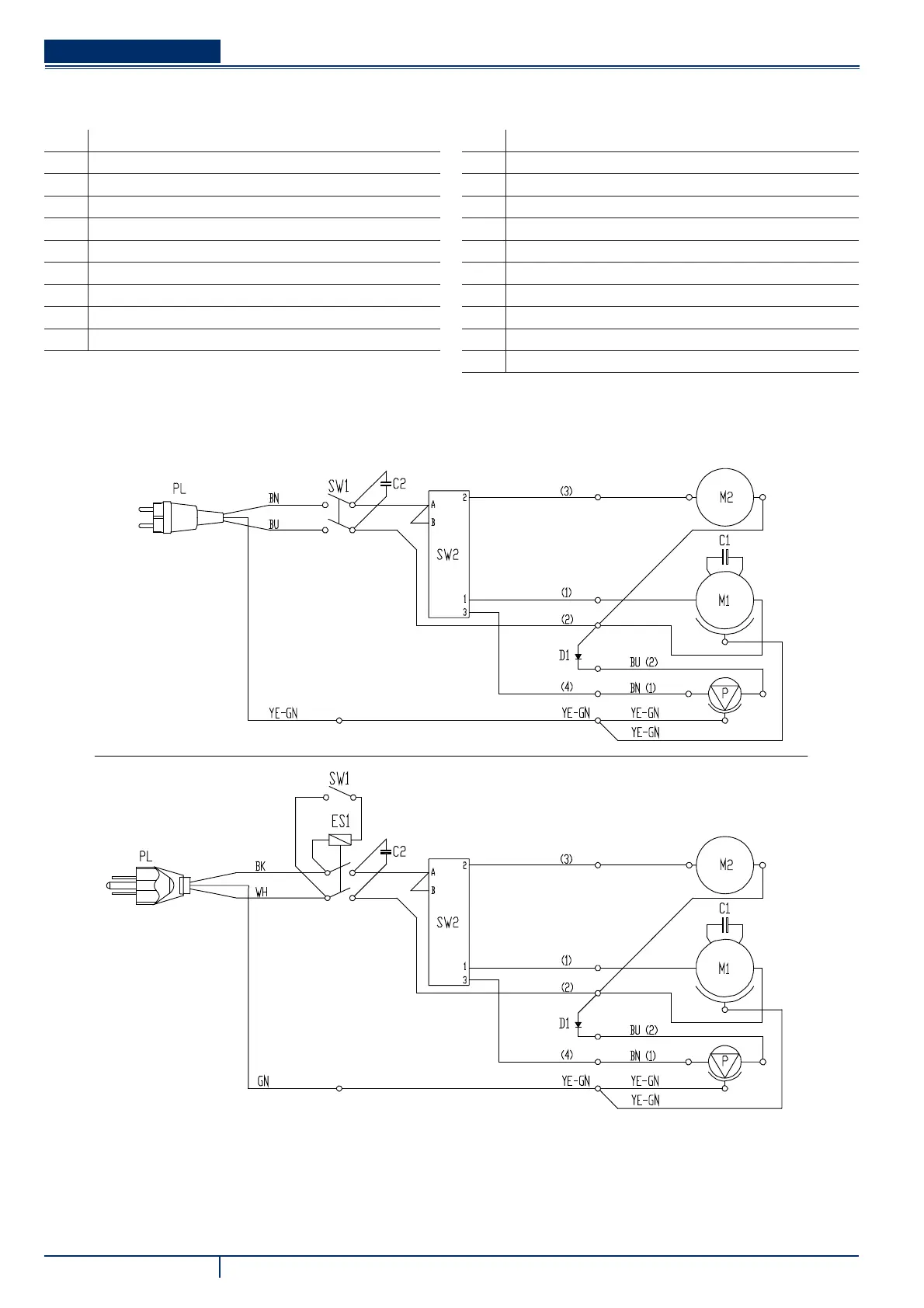

SCHALTPLAN
Legende
C1 Kondensator Bürstenmotor
C2 Filterkondensator
D1 Pumpendiode
ES1 Relais (nur 115 V)
M1 Bürsten-/Padhaltermotor
M2 Ansauganlagenmotor
P Wasserpumpe
PL Netzstecker
SW1 Hauptschalter
SW2 Programmwahlknopf
Farbcodes
BK Schwarz
BU Hellblau
BN Braun
GN Grün
GY Grau
OG Orange
PK Rosa
RD Rot
VT Violett
WH Weiß
YE Gelb
115 V
100 V
230 V
P100312
