ENGLISH USER MANUAL
8 SCRUBTEC 233 9097883000(1)2008-06 A

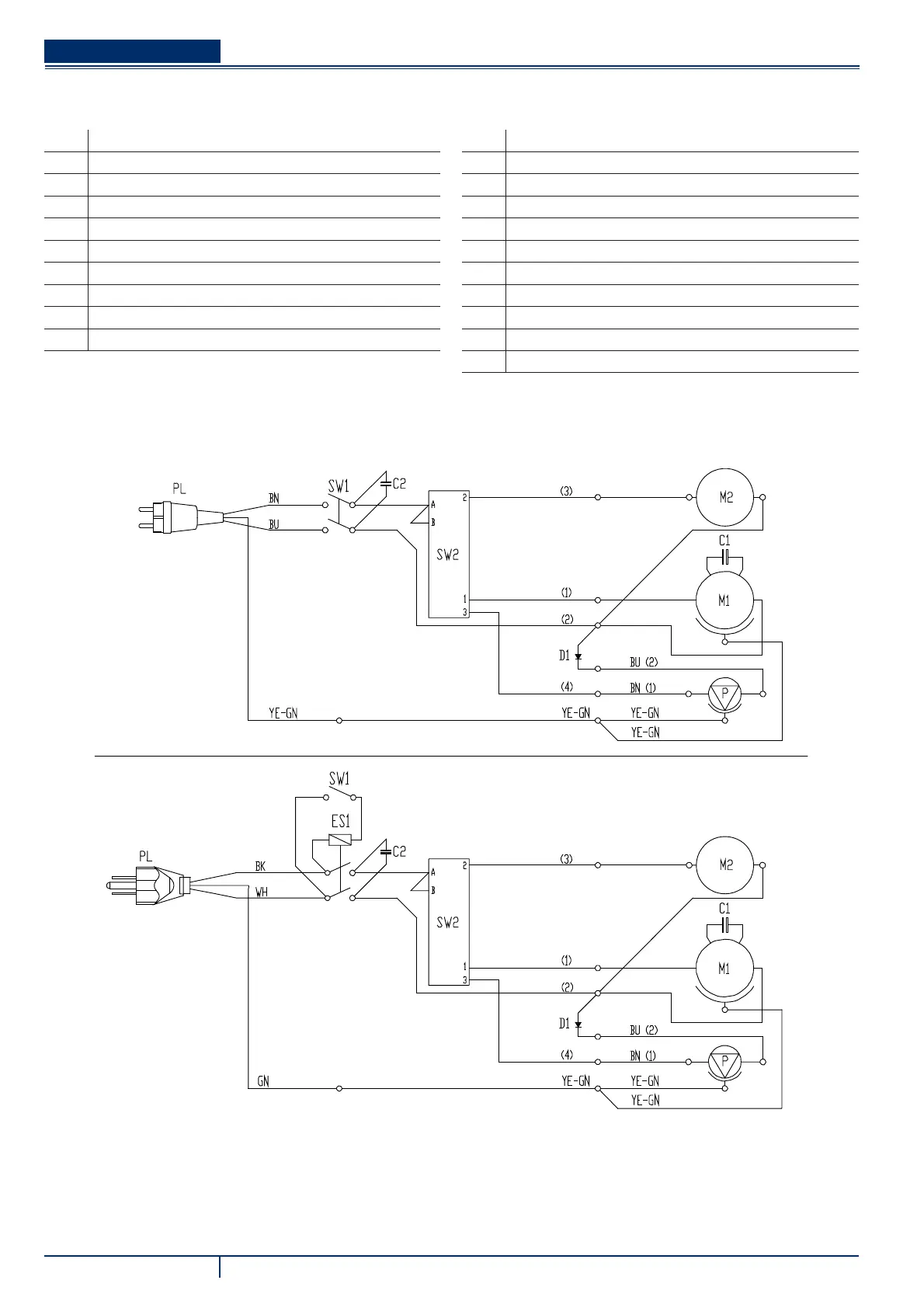

WIRING DIAGRAM
Key
C1 Brush motor condenser
C2 Filtering condenser
D1 Pump diode
ES1 Relay (115 V only)
M1 Brush/pad-holder motor
M2 Vacuum system motor
P Water pump
PL Plug
SW1 Main switch
SW2 Program selection knob
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
115 V
100 V
230 V
P100312
