Nilfisk-ALTO Scrubtec 233 User Manual

ENGLISH USER MANUAL
6 SCRUBTEC 233 9097883000(1)2008-06 A
1
55a
5c5d
5b 6
3
16
15
2
7
20
21
26
28
18
14
8
27
13
9
24
12
24a 24b
4
9
8
23
11
25
15
19
17
22
10
P100311

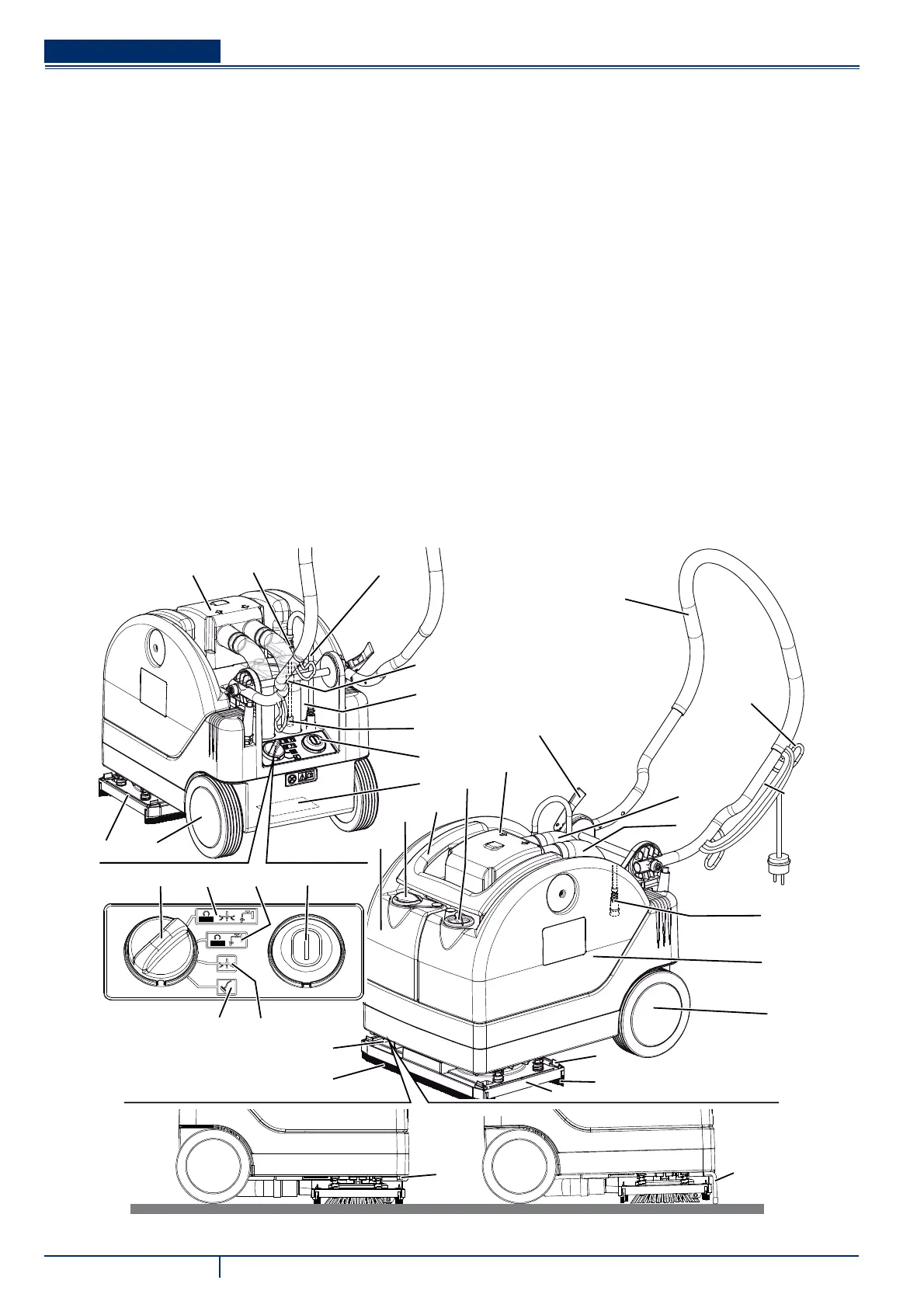

MACHINE DESCRIPTION
MACHINE STRUCTURE
Serial number plate/technical data/conformity certifi cation1.
Handlebar2.
Handlebar tilting adjustment lock/unlock lever3.
Control panel4.
Program selection knob5.
Program: brushes - vacuum system - solution fl ow 5a.
activation
Program: brushes - solution fl ow activation5b.
Program: vacuum system activation5c.
Program: fi tted carpet cleaning and fl oor wiping (optional)5d.
Main switch6.
Power supply cable holder7.
Wheels on fi xed axle8.
Brush and squeegee-holder deck9.
Power supply cable10.
Solution hose quick coupling (to the pump)11.
Front squeegee12.
Rear squeegee13.
Solution tank14.
Transparent cover with vacuum grid15.
Recovery tank16.
Solution hose17.
Solution tank fi ller plug18.
Recovery tank drain plug19.
Vacuum system motor suction hose20.
Squeegee vacuum hose21.
One-way valve22.
Solution hose quick coupling (to the brushes)23.
Parking lever (if equipped)24.
Disengaged parking lever24a.
Engaged parking lever24b.
Solution fi lter25.
Tank lifting handle26.
Squeegee fasteners27.
Solution tank quick coupling28.

Nilfisk-ALTO Scrubtec 233 Specifications

General

Brand	Nilfisk-ALTO
Model	Scrubtec 233
Category	Floor Machine
Language	English
