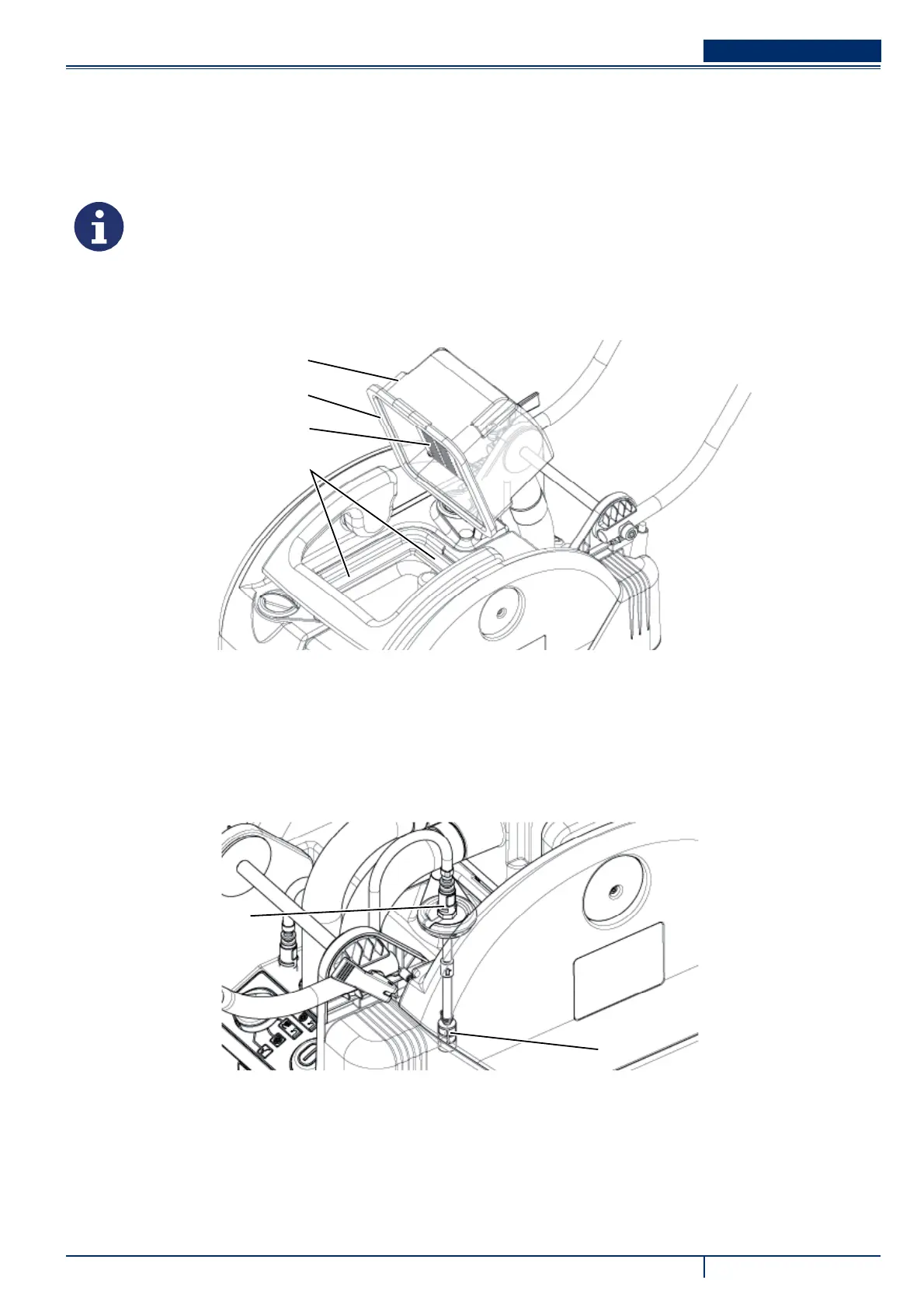

VACUUM GRID, DETERGENT TANK AND RECOVERY TANK CLEANING
Drive the machine to the appointed disposal area.1.
Make sure that the power supply cable (10) is disconnected from the electrical mains.2.
Open the transparent cover (A, Fig. 3) and clean it with care.3.
Clean the vacuum grid (B) with care. If necessary disconnect the hoses (20 and 21).
Check the transparent cover gasket (C) for integrity.4.
NOTE
The gasket (C) creates vacuum in the tank that is necessary for vacuuming the recovery water.
If necessary replace the gasket (C) by removing it from its housing (A).
Check that the seating surface (D) of the gasket (C) is integral and adequate for the gasket itself.5.
Drain and wash the recovery tank (16) and the detergent tank (14) as shown in Use chapter.6.
Install the tanks and the transparent cover with vacuum grid.7.
A
B
D
C
Figure 3
P100315
SOLUTION HOSE FILTER CLEANING
Drive the machine on a level fl oor.1.
Make sure that the power supply cable (10) is disconnected from the electrical mains.2.
Remove the solution hose plug (A, Fig. 4), carefully remove the hose from the tank and clean the fi lter (B) with water.3.
If necessary, remove the fi lter and replace it with a new one.
Install the fi lter and the solution hose in the tank, then install the plug.4.
A
B
Figure 4
P100316
