NEDERLANDS GEBRUIKSAANWIJZING
8 SCRUBTEC 233 9097883000 (1) 2008-06 A

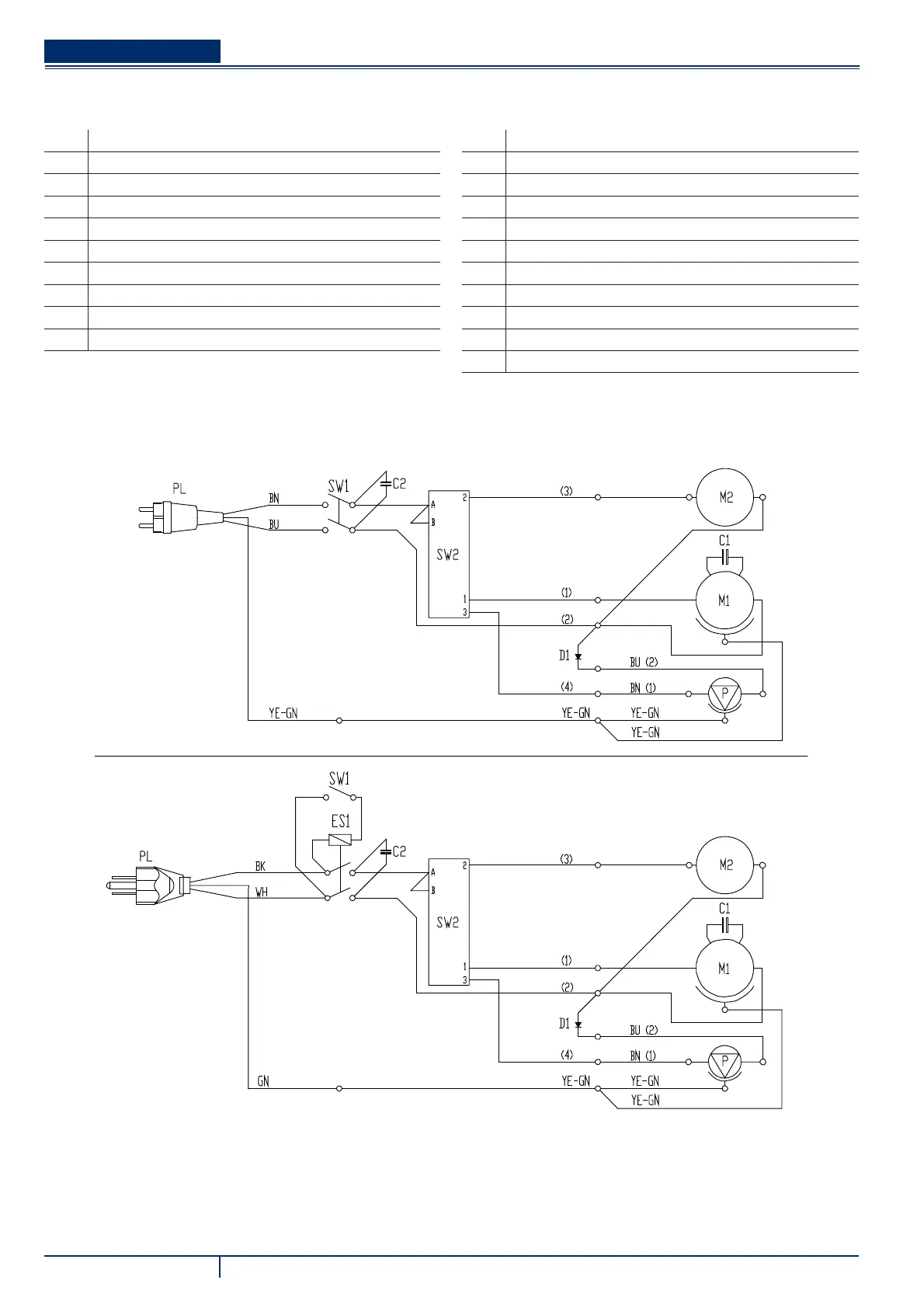

ELEKTRISCH SCHEMA
Legenda
C1 Condensator borstelmotor
C2 Filtercondensor
D1 Diode voor pomp
ES1 Relais (alleen 115 V)
M1 Motor borstel/padhouder
M2 Motor aanzuigsysteem
P Waterpomp
PL Stekker
SW1 Hoofdschakelaar
SW2 Hendel programmakeuze
Kleurcodering
BK Zwart
BU Blauw
BN Bruin
GN Groen
GY Grijs
OG Oranje
PK Roze
RD Rood
VT Paars
WH Wit
YE Geel
115 V
100 V
230 V
P100312
