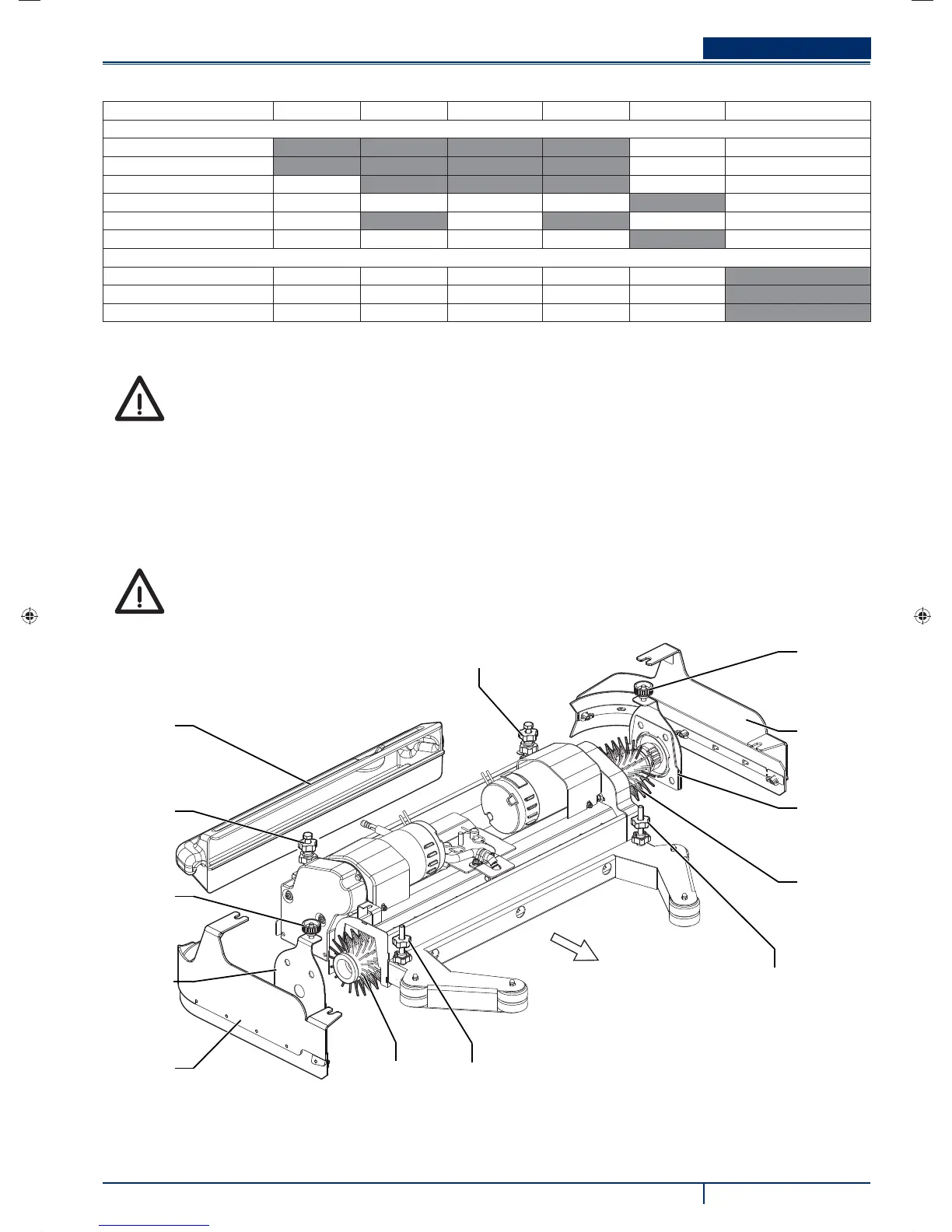

Available brushes and their relevant application guides (suggestions only)
Models HEAVY GRIT LITE GRIT MEDIUM GRIT POLY SOFT NYLON UNIVERSAL BRUSH 5K
General cleaning:
Concrete
Terrazzo fl oor
Ceramic tiles/quarrystones
Marble
Vinyl tiles
Rubber tiles
Polishing:
Rubber tiles
Marble
Vinyl tiles
Cylindrical brush installation/removal (only for SCRUBTEC R 471C)
Insert the ignition key (58) and turn it to “I”.1.
WARNING!
Before turning on the switch (63), always check that between the deck (28) and the machine there is no foreign
material which may prevent the deck from lifting.
Lift the deck by pressing the switch (63).2.
Turn the ignition key (58) to “0” and remove it.3.
On both sides of the machine, unscrew the knobs (A, Fig. 2) and remove the side skirt assemblies (B).4.
Unscrew the knobs (C) and remove the lids (D) by pushing the knobs downwards.5.
Install the cylindrical brushes (E), or remove them to install new ones.6.
The cylindrical brushes must be installed on either sides.
Install the lids (D) and fasten them with the knobs (C).7.
Install the side skirt assemblies (B) and fasten them with the knobs (A).8.
WARNING!
If the machine is not perfectly assembled it can cause damages to people and properties. Always check that all
components are assembled before starting the machine. Carefully inspect the machine before using it.
Front
B
D
C
A
F
E
A
E
D
B
C
A
A
Figure 2
P100363
