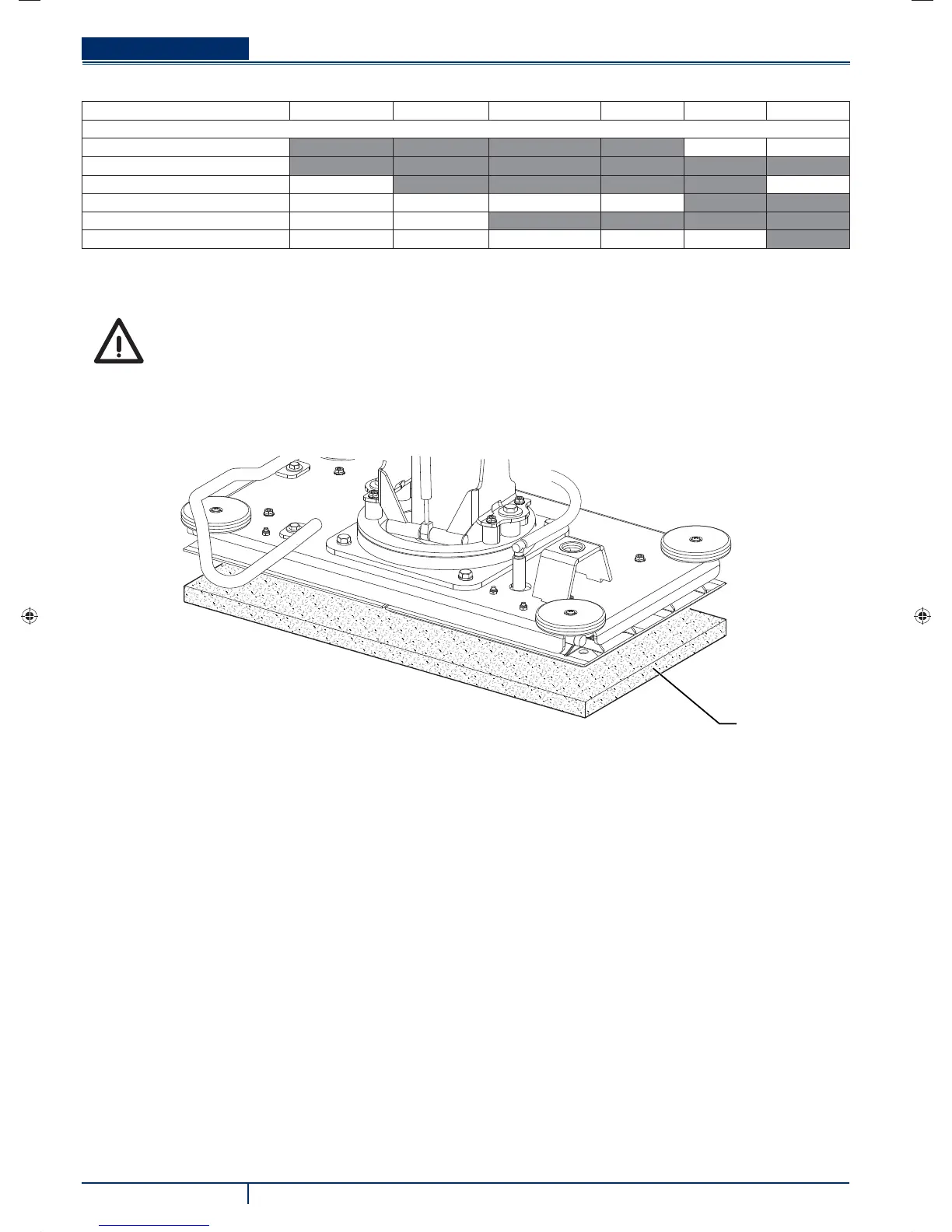

Available cylindrical brushes and their relevant application guides (suggestions only)
Models MAGNA GRIT 46 DYNA GRIT 80 MIDLITE GRIT 180 PROLENE PROLITE UNION MIX
General cleaning:
Concrete
Terrazzo fl oor
Ceramic tiles/quarrystones
Marble
Vinyl tiles
Rubber tiles
Pad installation/removal (for SCRUBTEC BOOST
®
R4)
The machine with BOOST
®
deck can be equipped with pads according to the type of fl oor to be cleaned.
Insert the ignition key (58) and turn it to “I”.1.
WARNING!
Before turning on the switch (63), always check that between the deck (5) and the machine there is no foreign
material which may prevent the deck from lifting.
Lift the deck by pressing the switch (63).2.
Turn the ignition key (58) to “0” and remove it.3.
Install the pad (A, Fig. 3) so that it engages the plates on the BOOST4.
®
deck.
To remove the pads perform steps 1 to 3, then manually release the pad from the deck plate.5.
A
Figure 3
P100437
Squeegee installation
Install the squeegee (30) and fasten it with the handwheels (34), then connect the vacuum hose (31) to the squeegee.1.
With the handwheel (35), adjust the squeegee so that the rear blades (18) - in all its length - touches the fl oor and the front 2.
blade is slightly detached from the fl oor.
