Pressure Sensors
Enter the minimum and maximum defined voltage in the x-axis. Enter the
corresponding pressure to the minimum respectively maximum voltage in the
table. Pressure output will be linearized for voltage measurement in between
the min and max voltage value. Note: It’s only allowed to edit axis value
while you’re offline.

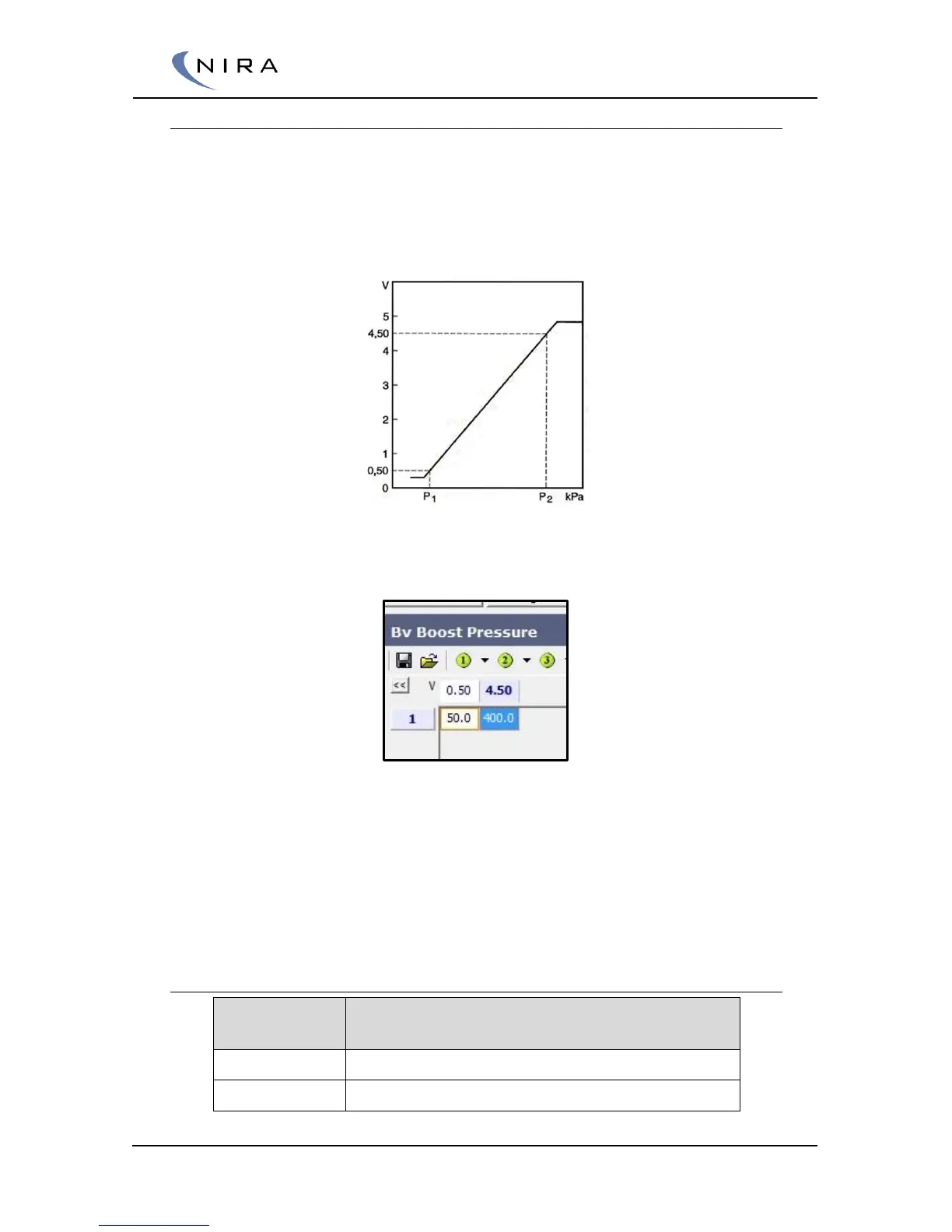

Example calibration data for a pressure sensor from the sensor data sheet
P1 = 50kPa, P2 = 400kPa
Example of pressure sensor characteristic in NIRA rk
Each pressure sensors has a low pass (LP) filter possibility for smoothing out
and filtering disturbances.
The filter constant for the LP filter is named Bv XX Pressure Filter. The unit is
mS and values between 0 and 3276,7 mS are allowed.
Sensors for engine control
