Negative value means retarded ignition
Positive values means advanced ignition
Ignition Flexiport Comp
Ignition Flexiport Comp is a totally user defined ignition compensation. The
table is equipped with Nira Flexiport
TM
at both X- and Y-axis.
The table could be used four nitrous compensation or water injection
compensation.
Negative value means retarded ignition
Positive values means advanced ignition
Ignition pin
NIRA i7x is equipped with 8 ignition outputs. The table Ignition Pin controls
which output is used for a certain cylinder.
Note: This should be an Offline change. Do Not change due to the firing
order in this table. Firing order is set up in “Bv Tdc Cylinder”.
One Coil per Cylinder (COP & CPP)
For sequential setup with up to 8 cylinder individual coils, one ignition output
should be related to one coil.

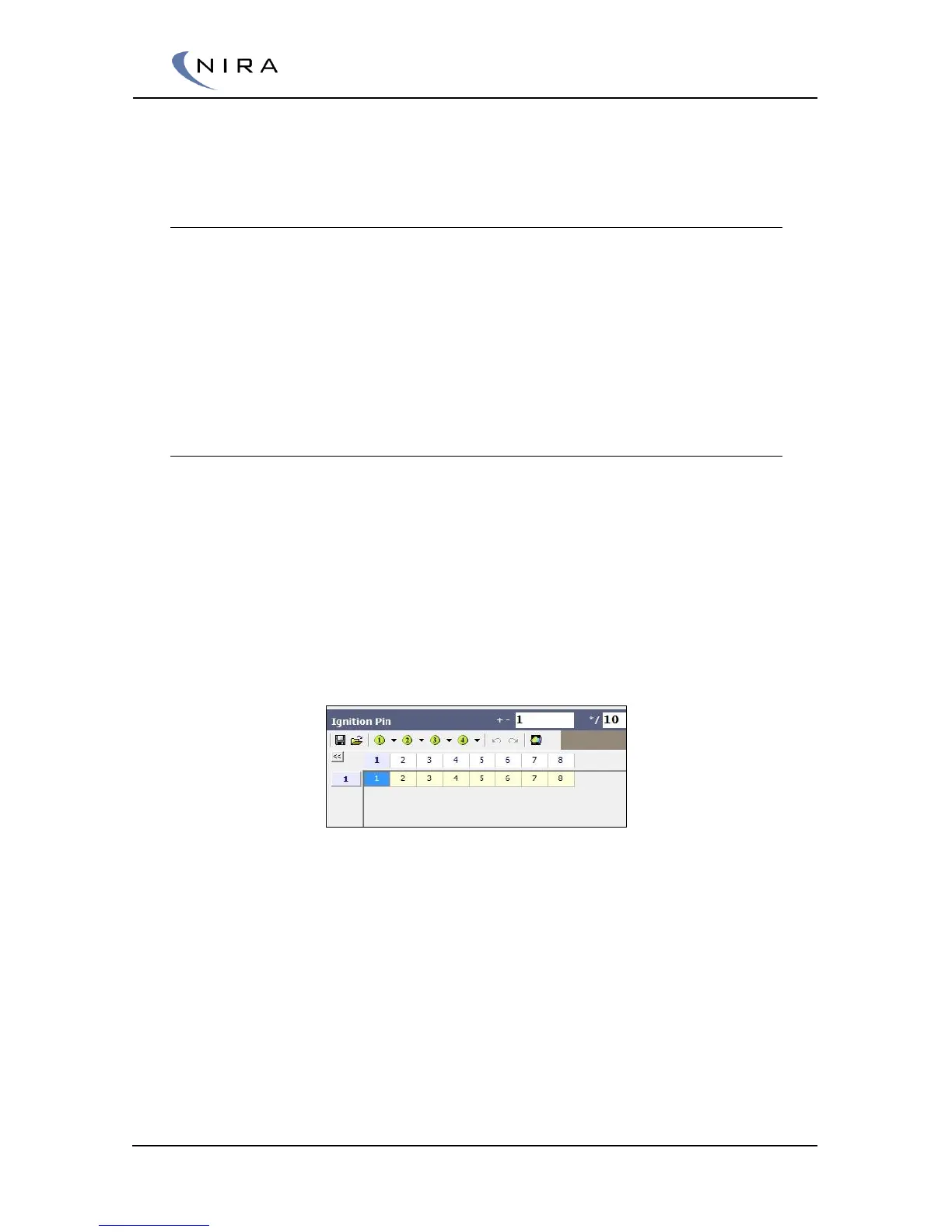

Ignition Pin configuration for cylinder individual coils. One ignition output for each cylinder.
Waste fire Coil
It is possible to control a waste fire coil even though the injection is
sequential.
