© 2005-2016 Nira Control AB 89

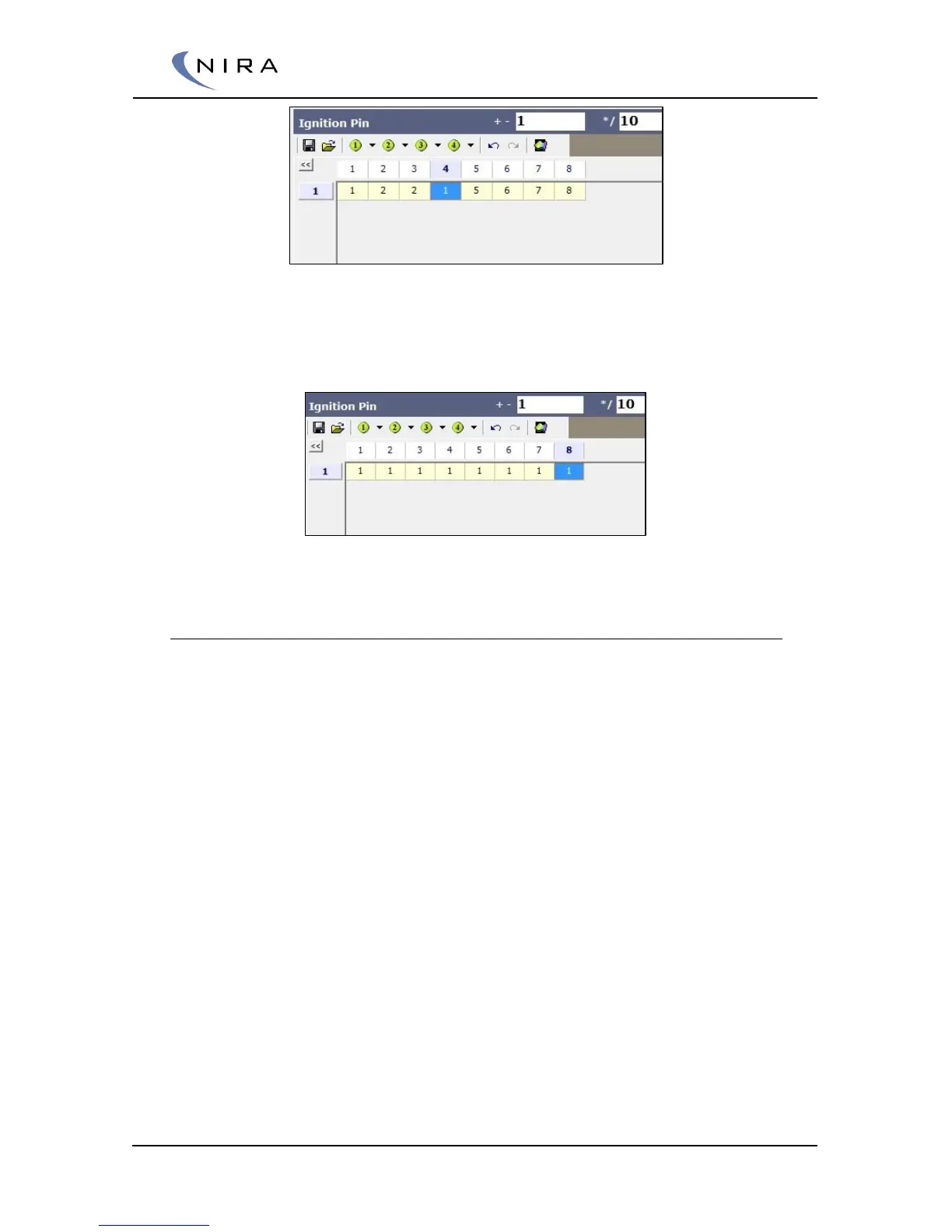

Ignition Pin setup for controlling a waste fire coil on a 4 cylinder engine
Distributor
If distributor is used, all ignition outputs should be set up to the same output.
Ignition pin setup for distributor set up
5.1.11 Mapping -> RPM Control -> RPM Limit
The rpm limit cuts out either injection or ignition to prevent over revving. For
emission control injection cut outs are preferred.
Engine Speed Limit is where the RPM limit starts to cut out injection or
ignition. The cut rate at Engine Speed limit is controlled in Es Limit Cut
level Min
Es Limit Cut Level Min is the cut rate that is used when enter Engine
speed limit
Engine speed Limit Range When passing Engine Speed Limit +
Engine Speed Limit Range the cut rate is 100%. In the rpm range the
cut rate is linearized between Es Limit Cut level Min and 100%
Es Limit Cut Injection decides if injection or ignition should be cut out
