Aux Temp
Six temperature inputs, typically used for NTC/PTC type temperature sensors
can be utilized as auxiliary inputs. These are configured using Bv Aux TempX,
where x is an integer between 1 and 6.
Aux Digital Input
Two inputs are available for detection of pulse signals, e.g. from wheel speed
sensors. These are configured in Di Aux1 Teeth and Di Aux2 Teeth.
5.1.14 Mapping -> AUX -> Output -> Relay Control
NIRA i7x provides two fully customable relay controls.
Name
Controlled by
Comment
Related pin
Do Fan Relay
2D matrix with user
defined axis
The output pin is active low
V55, Fan RLY
Do Aux Relay
2D matrix with user
defined axis
The output pin is active low
V38, Aux RLY
Relay Control uses hysteresis. The Relay Control only switches when the
matrix output is one or zero.

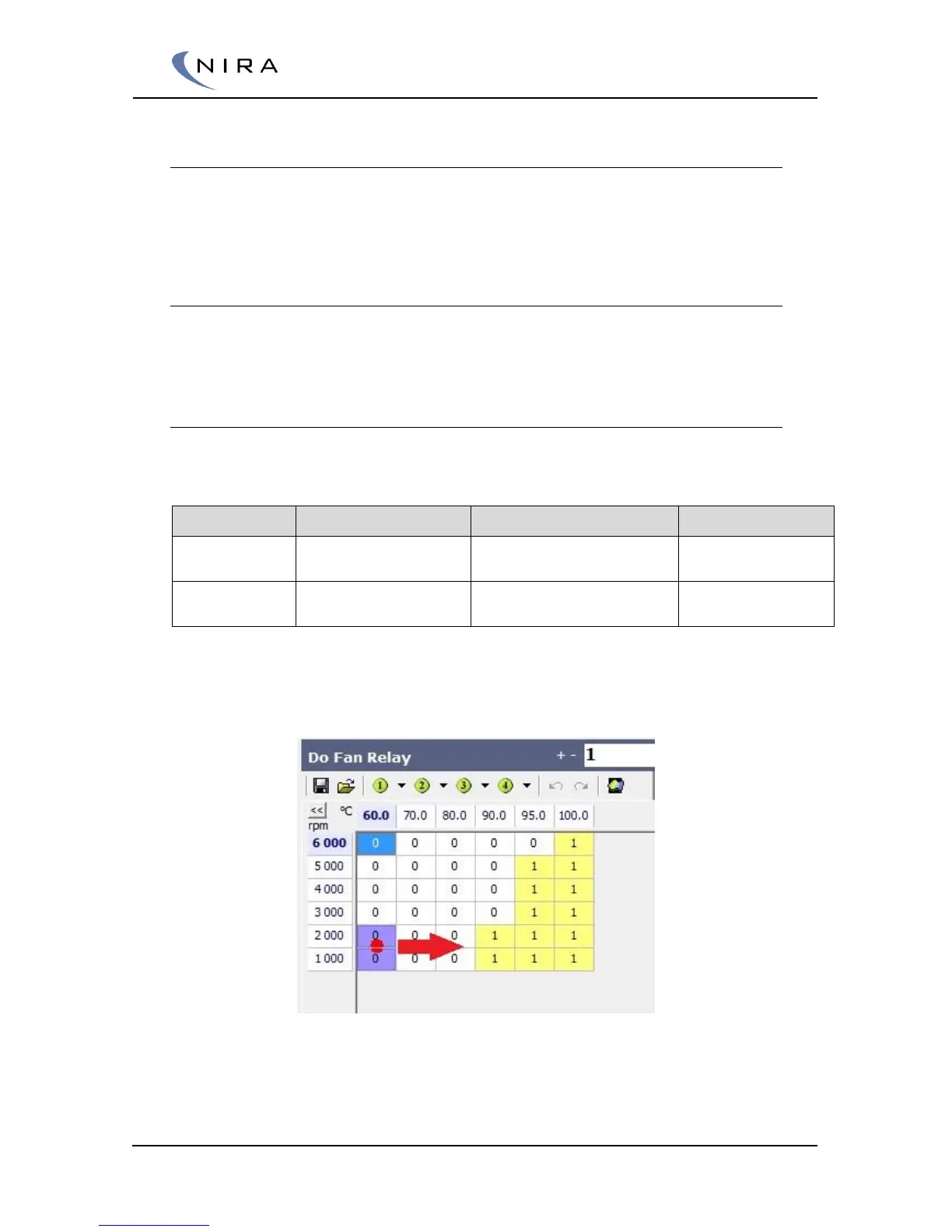

The red arrow shows direction of movement in Fan relay matrix when Coolant temp
increases
