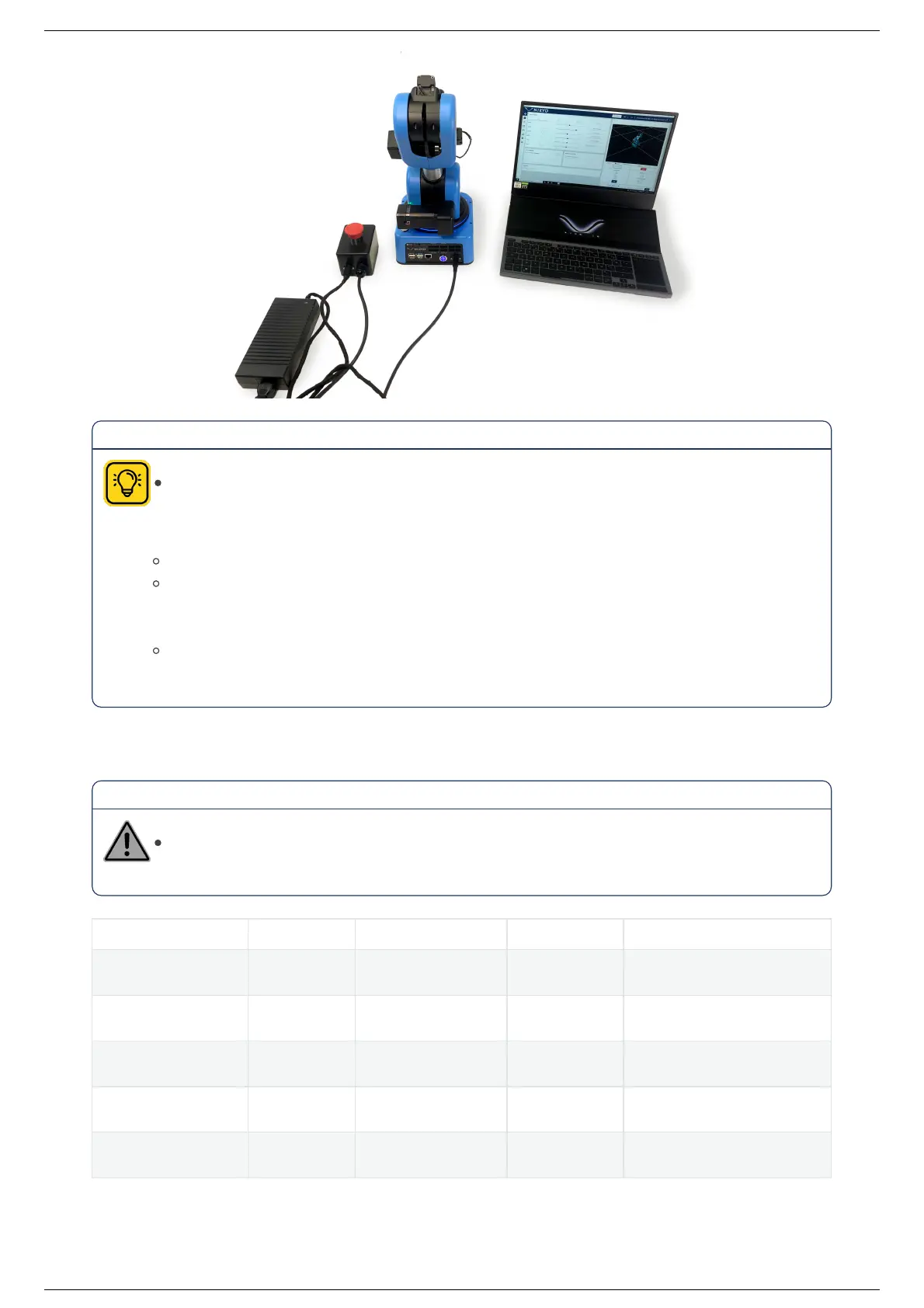

Niryo Ned2 - LED Ring Indications

 Advice
Hardware can be tested for the very rst time without using any software, as a
program is pre-recorded at the factory to start automatically. To do this, follow the
steps below:
Make the electrical connection and switch on the robot as explained above
Wait until the LED ring performs a slow blue “Chase” (go to the led ring section) and the robot
start-up sound starts (if this is the rst time you are using the Ned2, it takes about two
minutes)
Press the top button: the Ned2 will start with a calibration, then it will perform a pre-recorded
sequence.
LED ring indicationsLED ring indications
 Warning
If software changes are made to the robot LED ring indications, then the indications given in
this section may be wrong.
Color Condition Operating mode Description Troubleshooting
White Breath
Normal
condition
Robot is
booting
N/A
White to blue
Breath
Normal
condition
Starting the
robot
N/A
Slow blue Chase
Normal
condition
Manual mode -
Calibration
Calibration
required
Press the Custom button,
or launch a calibration
Blue Snake
Normal
condition
Manual mode -
Calibration
Calibration
in progress
N/A
3 yellow Flashing
Normal
condition
Manual mode -
Calibration
Calibration
warning
N/A
