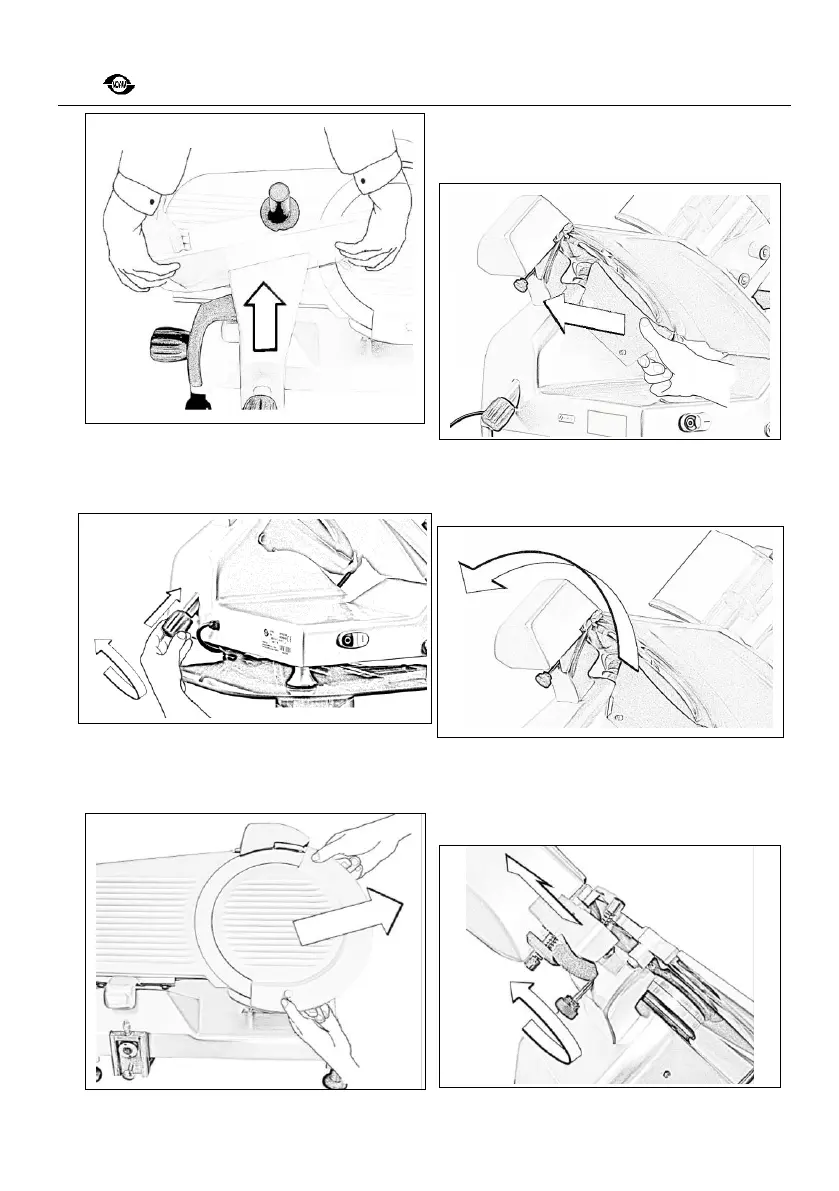

Disassembling the blade cover
1. Completely unscrew (counterclockwise)
the knob of the tie rod;
2. If the blade cover is tight, loosen it with
pressure on the tie rod knob. Take out the tie
rod and remove the blade cover.
Disassembling the slice deflector
1. Remove the slice deflector, moving it like
shown in the picture;
Disassembling the sharpener
1. Lift the sharpener cover (for mod.
Ø300/330/350 mm);
2. Loosen the side knob of the sharpener block
without removing it;
3. Remove the whole sharpener by pulling
upwards.
