Noaw TWS - Main Components

Use and maintenance
48
4.2 Main components

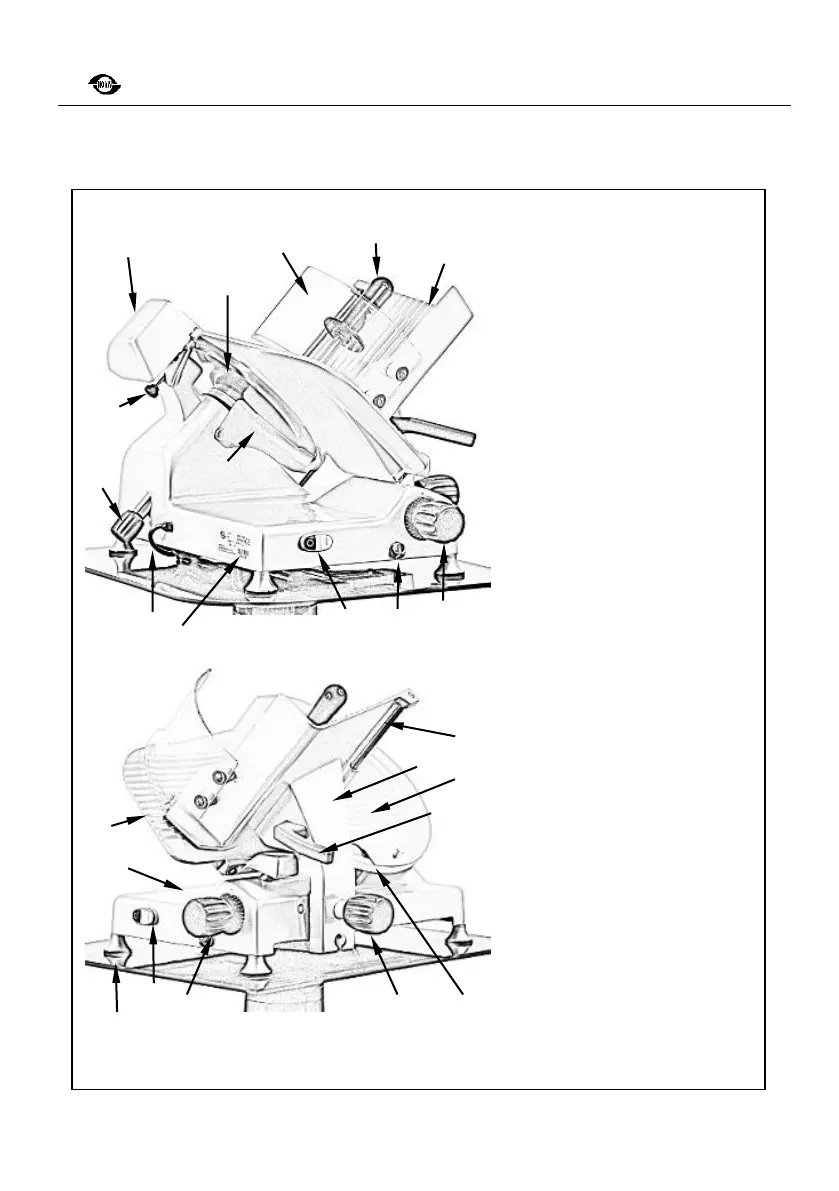

Gravity slicers
1. Feed cable
2. Identification plate, technical
data and EC marking
3. ON/OFF push button
4. Graduated knob for slice
thickness
5. Meat table
6. Meat pusher handle
7. Safety guard
8. Blade
9. Sharpener knob
10. Slice deflector
11. Foot
12. Knob for plate pushing
13. Meat table support
14. Plate blocking handle
15. Base
16. Blade guard ring
17. Sharpener cover
18. Gauge plate
19. Tie rod
20. Lubricating screw
21. Meat table rob
22. Blade cover
