PARTS
1
2
3
4
5
6
8
8
11
9
10
12
13
14
15
16
17
18
8
1
2
3
4
5
6
8
8
7
11
9
10
12
13
14
15
16
17
18
8
ITEM QTY DESCRIPTION PART NUMBER
1 1 W-Peri Pump Channel 05700-003-53-25
2 Swtich, Vaccum 06685-003-36-13
3 F-Pressure Swtich Bracket 05700-003-53-03
4 Lockenut, 10-24 S/S Hex W/ Nylon Inserts 05310-373-01-00
5 Motor, 105-3036-2 36 RPM 04320-111-35-14
6 Motor, 14 RPM Peri Pump 04320-111-35-13
7 A-Kit, Peri Pump Assy W/ White Roller 04320-002-83-90
8 Tube Stiffener 05700-002-66-49
9 Tube, Tygoprene XL60 3/16 X 8 9657-25 05700-003-22-89
10 Wye, 1/4” Barbed PVDF 04730-003-36-14
11 Tubing, Clear 5/16 ID 04710-003-53-26
12 A-Tubing, 1/4 X 100 Red 05700-003-03-45
13 A-Tubing, 1/4 X 100 Long White 05700-003-20-67
14 A-Tube, 1/4 OD X 48 Blue Plastic 05700-002-62-11
15 A-Tubing, 1/4 X 100 Long Blue 05700-003-20-68
16 A-Tube, 1/4 OD X 48 Red Plastic 05700-002-62-12
17 A-Tubing, 1/4 X 48 White Plastic 05700-002-62-13
18 Tie, 4” PLT1M-M Panduit Cable 05945-602-01-16

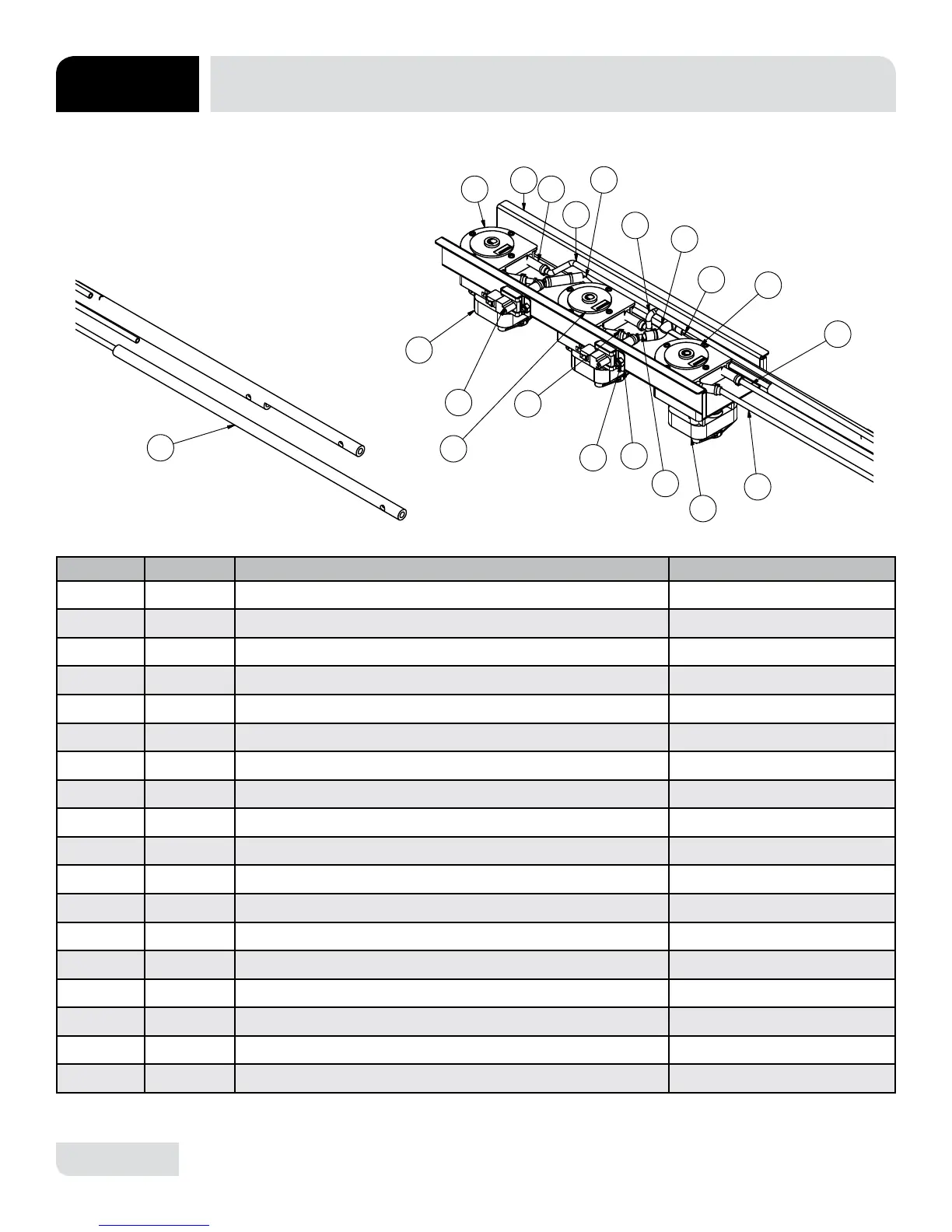

UL30 CHEMICAL FEEDER PUMP ASSEMBLY
