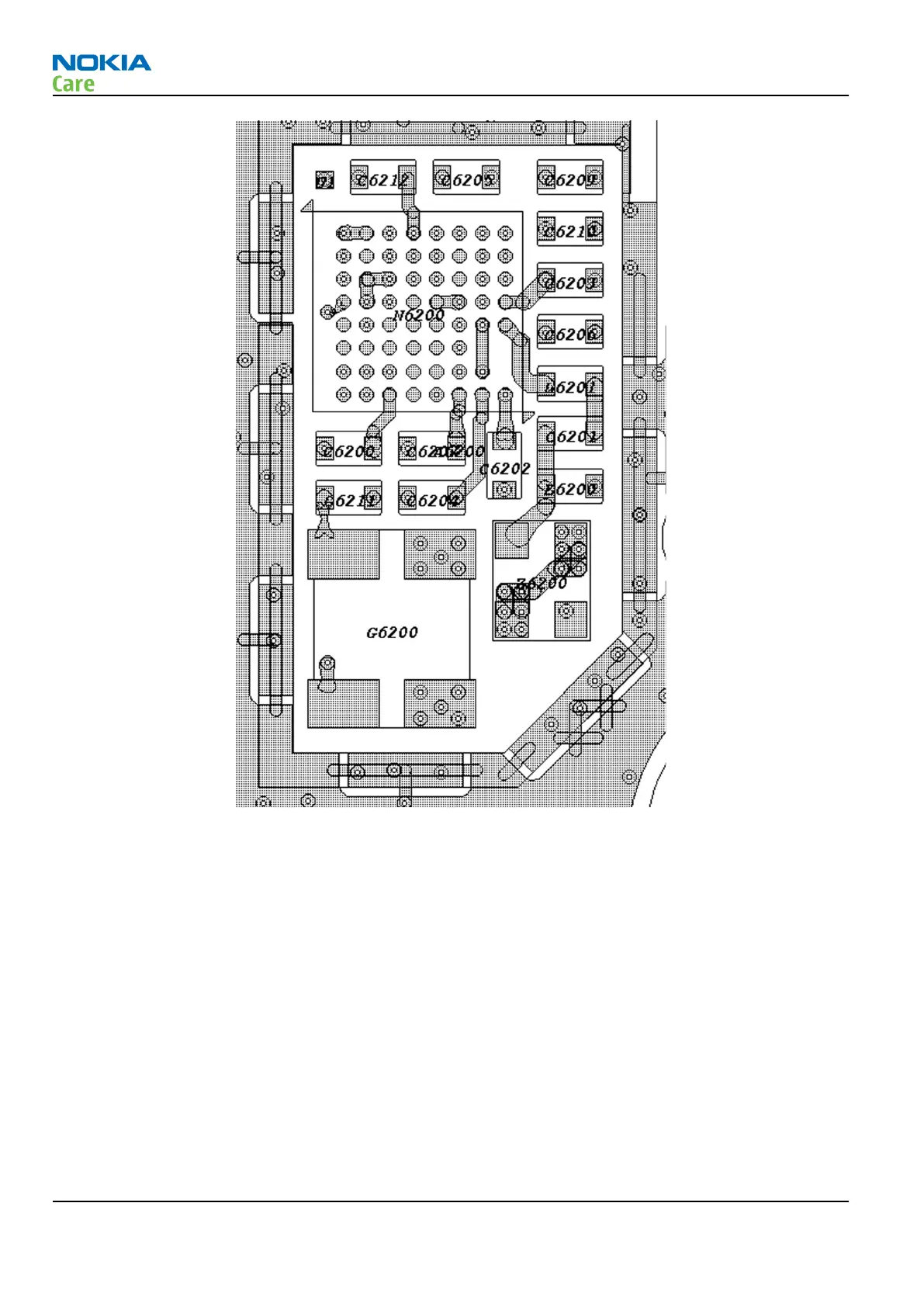

Figure 22 GPS layout and basic test points
GPS Settings for Phoenix
GPS control
Prerequisites
A flash adapter with RF coupler connected to a PC with Phoenix service software is required. The GPS signal
should be connected to the RF coupler. Calibrate the signal level with a known good phone. Signal level will
be high (approx -45dBm) because it is a leakage connection.
Context
Use the following to test GPS using Phoenix.
Steps
1. Place phone to Flash Adaptor.
2. Start Phoenix service software.
RM-484; RM-485; RM-486
BB Troubleshooting
Page 3 –60 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
