RF key components and test points

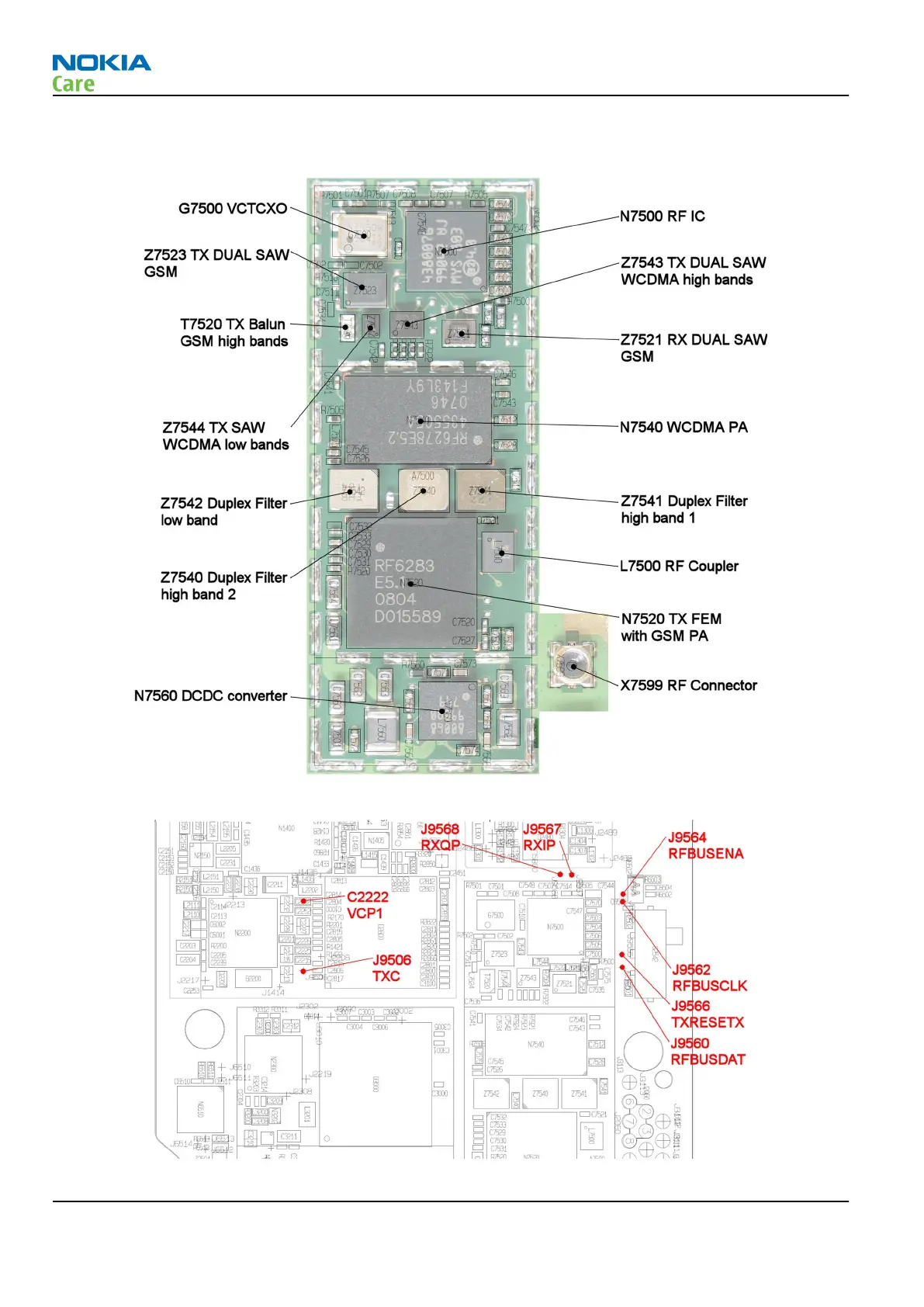

Figure 28 RF key components
Figure 29 RF test points
RM-484; RM-485; RM-486
RF Troubleshooting
