Accessory AV connector
The features that are supported by RM-484 accessory interface are the following:
•
Audio output (stereo headset/headphones having the impedance >16ohm)
•
Audio input (mono microphone from headset)
•
Control data (ECI)
•
TV-out with composite signal to 75ohm coax cable
•
Connects FM receiver to headphones, which serves as FM antenna

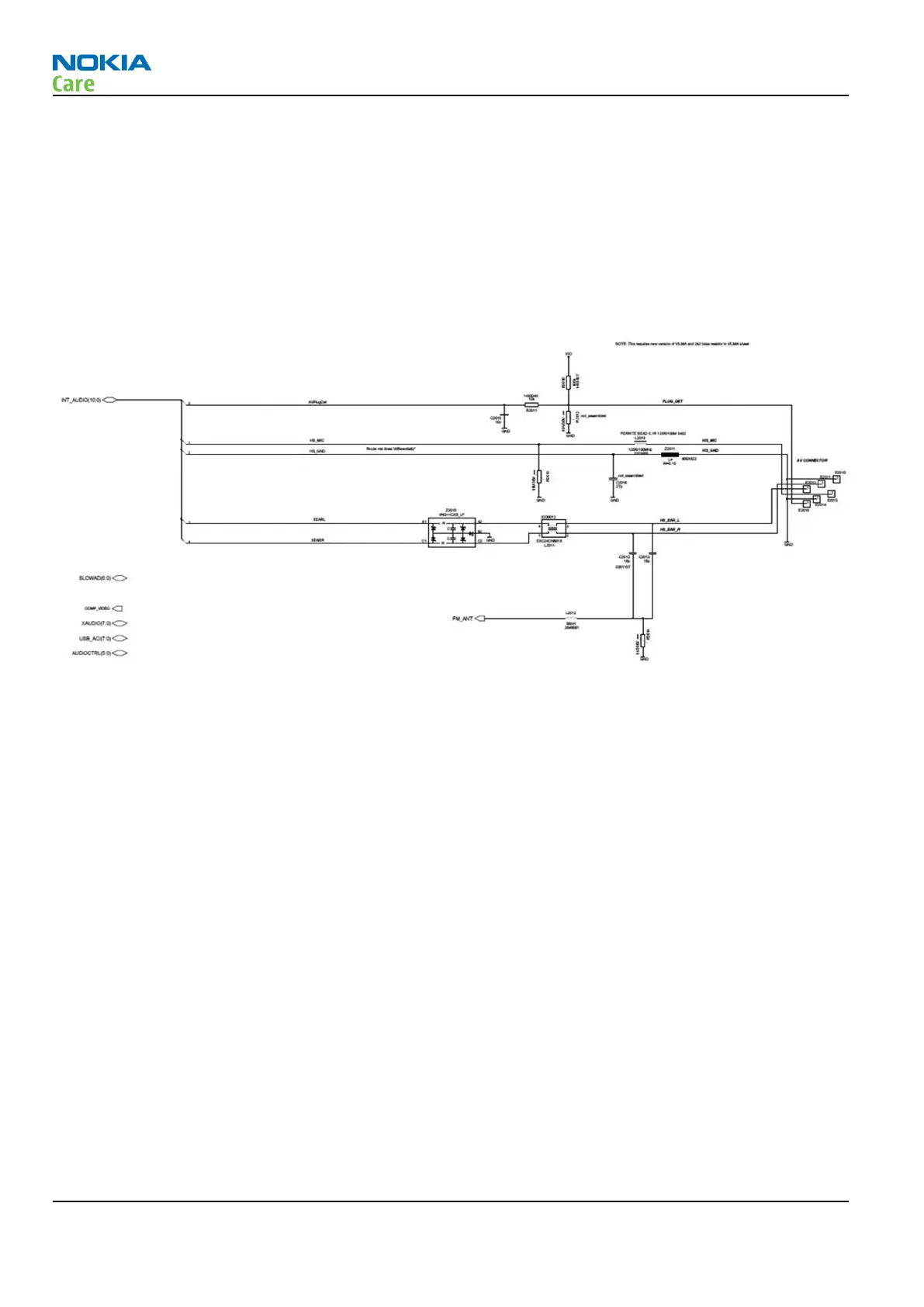

Figure 81 Accessory (AV) connector
RM-484; RM-485; RM-486
