Nokia RM-484 - Service Concept for RF Testing and RF;BB Tuning

Type Description
SA-154 RF coupler
Other devices
CU-4 Control unit
SX-4 Smart card
FPS-10 Flash prommer box
PKD-1/PK-1 SW security device
SS-62 Flash adapter base
Measurement equipment
PC with Phoenix service software
Cables
PCS-1 Power cable
XCS-4 Modular cable
CA-56RS RF cable
GPIB control cable
USB cable

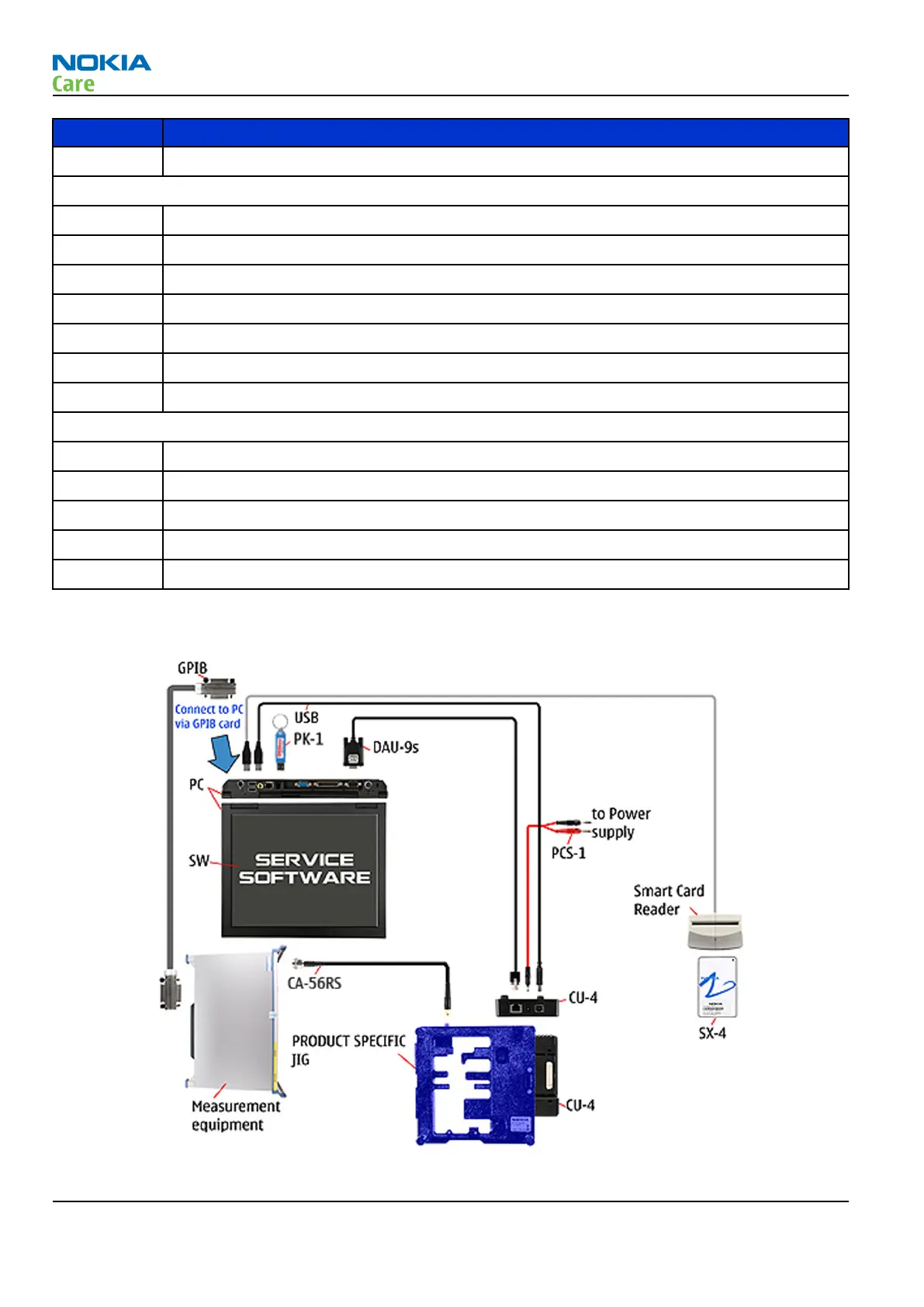

Service concept for RF testing and RF/BB tuning
Figure 13 Service concept for RF testing and RF/BB tuning
RM-484; RM-485; RM-486
Service Tools and Service Concepts
