Installation 13
Installation
The followings are instructions for setting up the Wireless Connect Gateway. Refer to the
illustration and follow the simple steps below to quickly install your Wireless Connect
Gateway.
Wall-Mounting
The Wireless Connect Gateway can be mounted on a wall by applying the two mounting
brackets on screws.

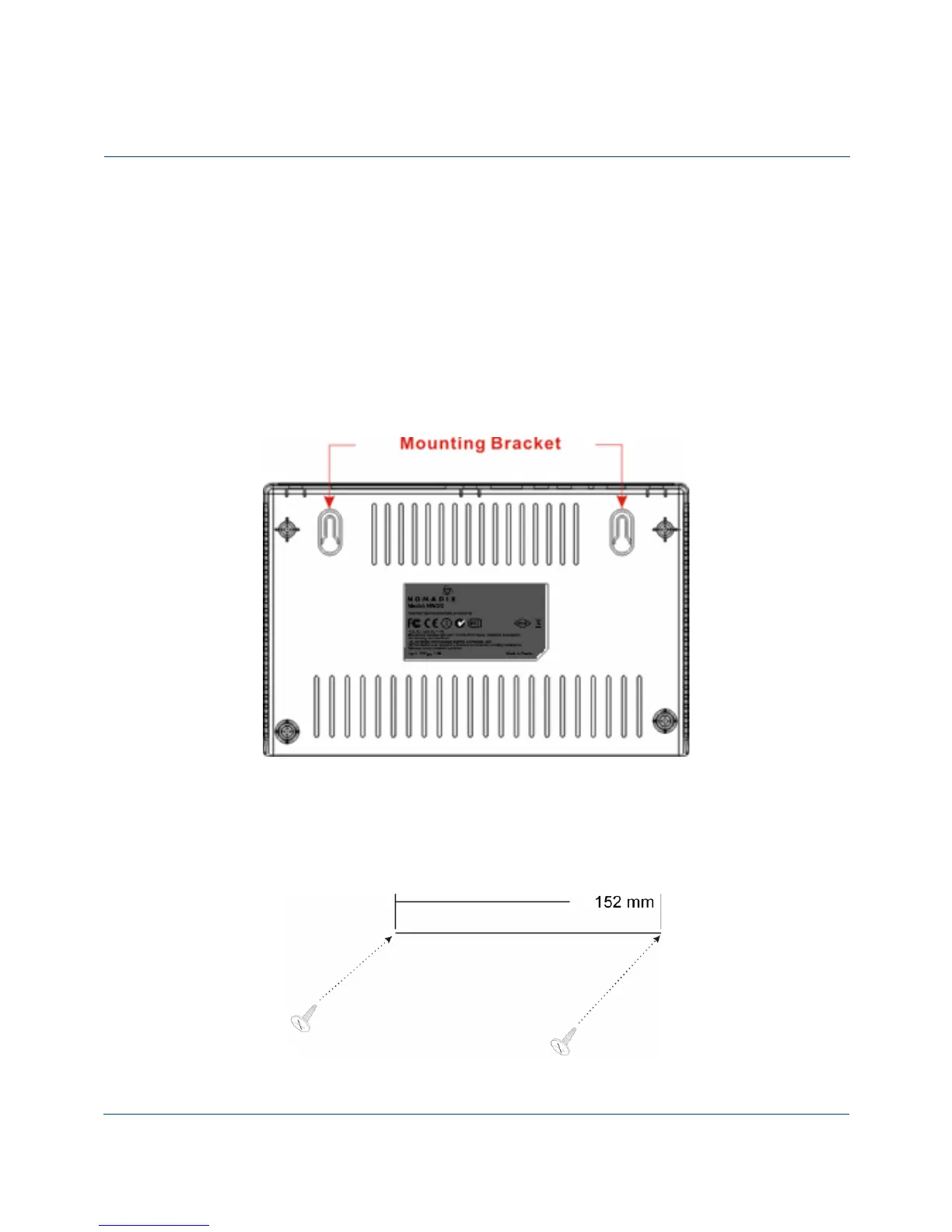

Figure 4 Wall-Mounting Bracket - Bottom of Wireless Connect Gateway
Please refer to the following instructions for mounting a Wireless Connect Gateway on a wall
or other surface.
1. Install two screws on a wall according to the relative positions shown below.
Figure 5
