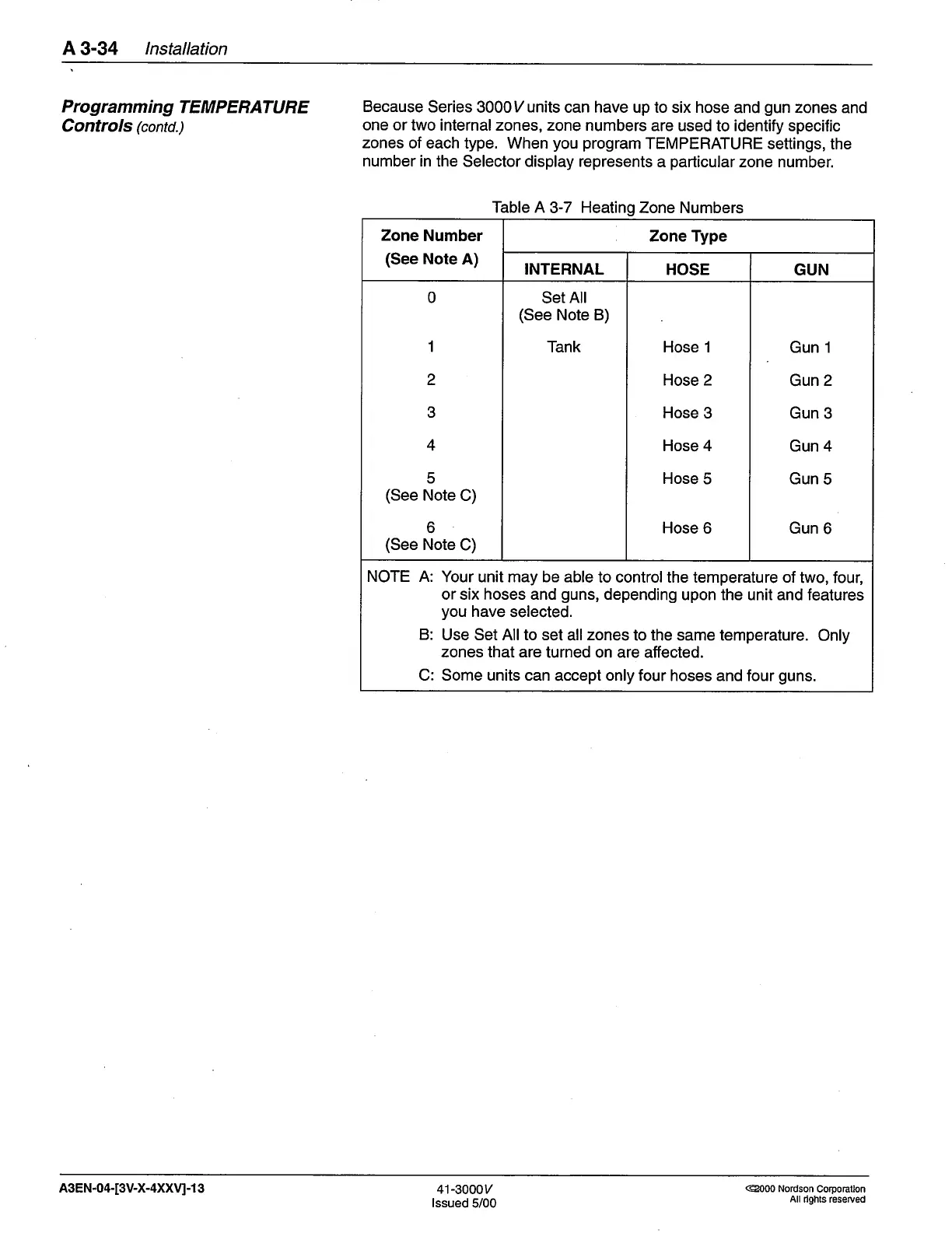

Because
Series
3000
V units
can have up to six hose
and
gun
zones
and
one or
two internal zones, zone
numbers are used
to
identify
specific
zones
of each type. When
you program
TEMPERATURE
settings, the
number in
the Selector display represents
a
particular
zone number.
Table A
3-7
Heating
Zone Numbers
Zone
Number
(See
Note
A)
Zone Type
INTERNAL
HOSE
GUN
0
1
2
3
4
5
(See
Note
C)
b
(See
Note
C)
Set
All
(See
Note B)
Tank Hose 1
Hose 2
Hose
3
Hose 4
Hose 5
Hose 6
Gun 1
Gun
2
Gun
3
Gun 4
Gun
5
Gun
6
NOTE A:
Your unit may be
able to controlthe temperature of
two, four,
or six hoses and
guns,
depending
upon the unit and features
you
have
selected.
B:
Use Set Allto set
allzones to the same temperature.
Only
zones that are
turned on are affected.
C: Some units can
accept
only four
hoses and four
guns.
A3EN-04-[3V-X-4XXVj-1
3
41-3000v
lssued
5/00
@00 Nordson
Corporalion
All rights reseNed
