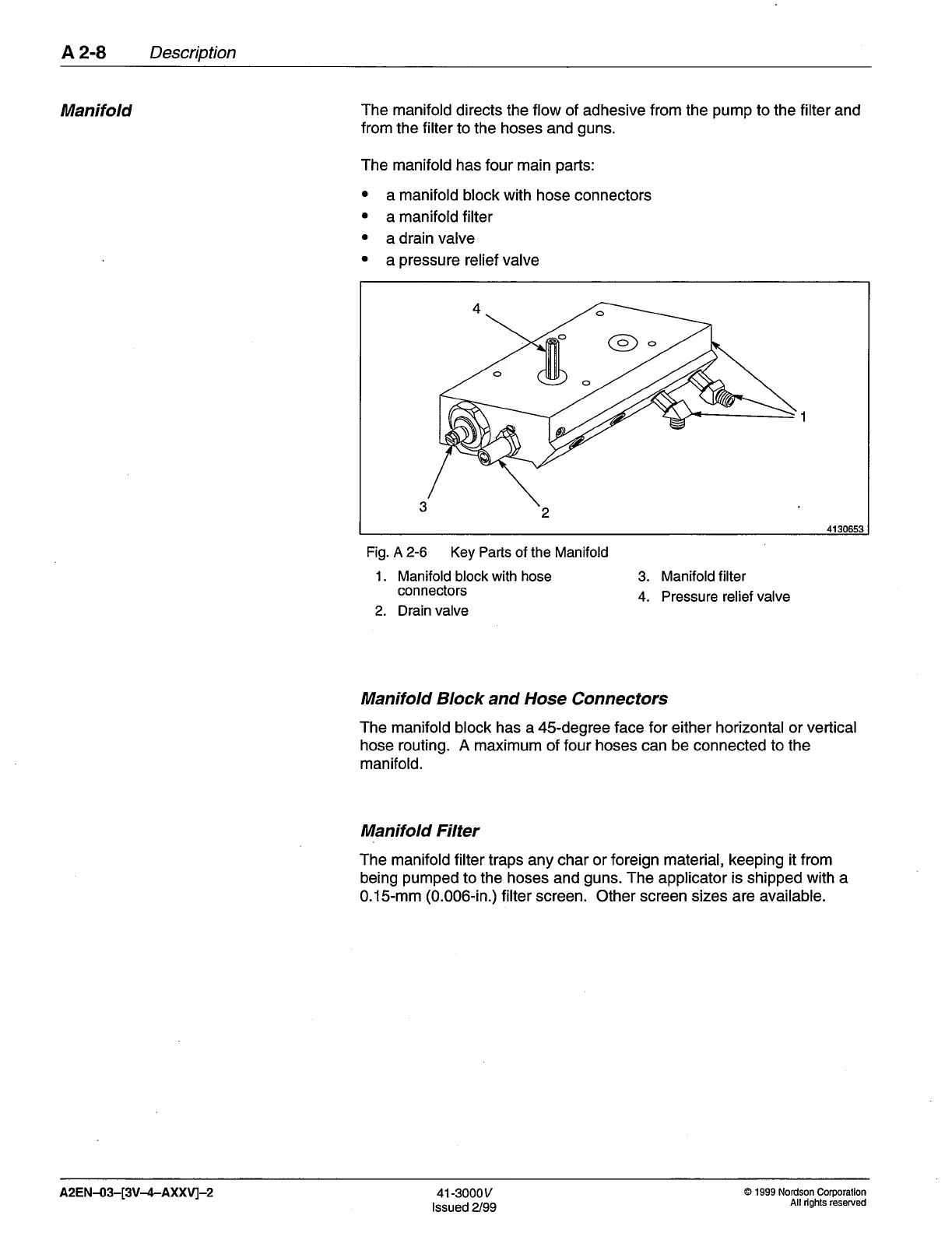

A 2-8
Description
Manifold
The
manifold directs the flow of adhesive from the
pump
to the filter and
from
the
filter
to the hoses and
guns.
The manifold has
four main
parts:
.
a manifold block with hose
connectors
.
a manifold filter
.
a
drain valve
.
a
pressure
relief valve
Fig. A
2-6
Key Parts of the Manifold
1. Manifold
block
with hose
connectors
2. Drain valve
3.
Manifold filter
4. Pressure relief
valve
Manitold Block
and
Hose
Connectors
The manifold block has a 45-degree face for either horizontal or vertical
hose routing. A maximum of four hoses can be connected to the
manifold.
Manifold
Filter
The manifold filter traps any char or foreign material, keeping it from
being
pumped
to the hoses
and
guns.
The applicator is shipped with a
0.1S-mm
(0.006-in.)
filter
screen. Other screen
sizes
are
available.
4
1
3
2
,tcnAce
A2 E N-03-[3V-/I-AXXVJ-2
41-3000y
lssued 2/99
@
1999 Nordson Corporallon
All dqhts reserved
