Nordson 3100V Series Customer Product Manual

A2-12
Description
Displays
Area
The
Displays
area of the operator
panel gives you
detailed information
about
the status
of
your
system. When
you
are running the system,
it
shows the status
of each heating zone.
When
you
are customizing
the
system,
it shows
your
current system
setup.
1
2
3
6
5
4
I
l
15frF
)5tF
*J
I

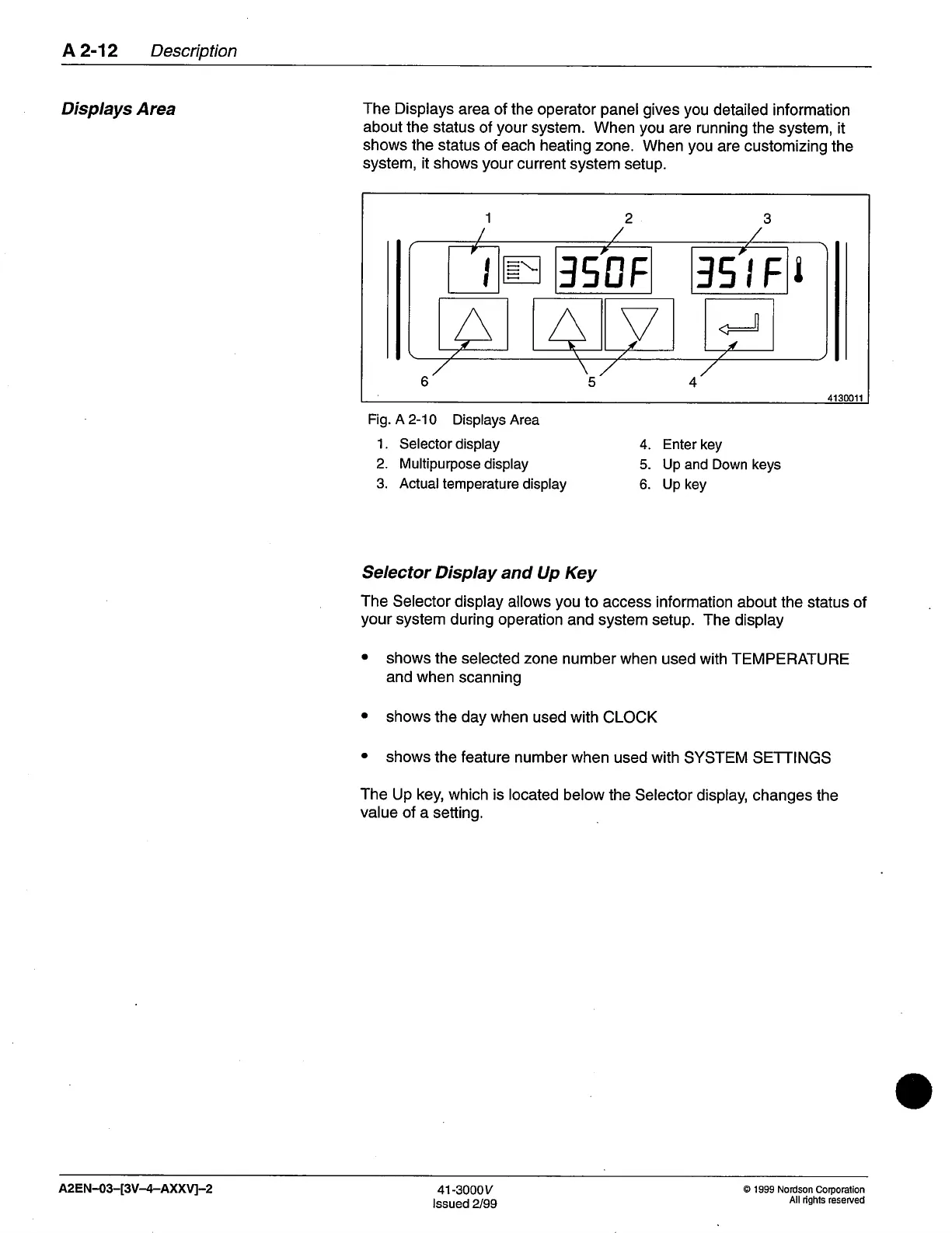

Fig. A 2-10
Displays Area
1.
Selector display
2. Multipurpose
display
3. Actualtemperaturedisplay
Selector Display
and
Up
Key
The
Selector
display allows
you
to access information
about the status of
your
system
during operation
and system setup.
The display
shows the selected
zone number when
used with TEMPERATURE
and when
scanning
shows the day when
used with
CLOCK
shows
the feature number when
used with
SYSTEM SETTINGS
The
Up key, which is located
below the
Selector display, changes
the
value of
a setting.
4.
Enter
key
5. Up and Down keys
6.
Up key
a
a
a
A2 EN-03-[3V-4-AXXVI-2
o
41-3000y
lssued
?99
@
1999 Nordson Corporalion
All righls reserved
