Nordson 3100V Series Customer Product Manual

Control
B 2-29

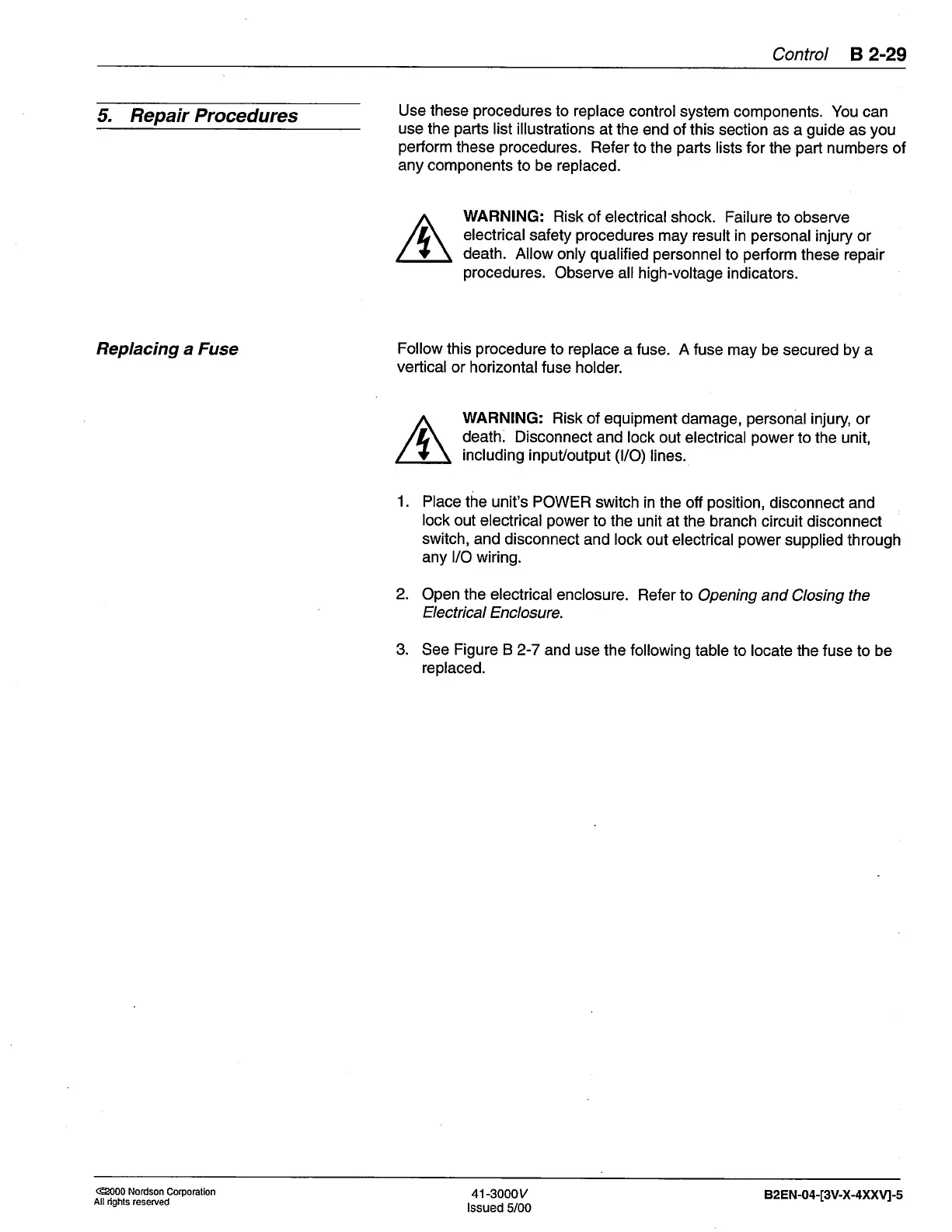

5. Repair Procedures
Use these
procedures
to replace
control
system components. You can
use
the
parts
list
illustrations
at the end of
this section as a
guide
as
you
perform
these
procedures.
Refer
to the
parts
lists for
the
part
numbers of
any components
to be replaced.
WARNING:
Risk
of electricalshock.
Failure to obserue
electricalsafety
procedures
may result in
personal
injury or
death.
Allow only
qualified
personnelto perform
these repair
procedures.
Observe all
high-voltage indicators.
Follow
this
procedure
to replace
a fuse. A fuse
may be secured by a
vertical
or horizontal fuse
holder.
WARNING:
Risk
of equipment
damage,
personal
injury
or
death. Disconnect
and lock
out electrical
power
to the unit,
including inpuUoutput
(l/O)
lines.
1.
Place the unit's POWER
switch
in the otf
position,
disconnect and
lock
out electrical
power
to
the unit at the branch
circuit disconnect
switch,
and disconnect
and lock
out electrical
power
supplied
through
any l/O wiring.
2.
Open the electrical
enclosure.
Refer to
Opening and
Closing
the
Electrical
Enclosure.
3.
See
Figure
B 2-7 and
use the following
table to locate the fuse
to
be
replaced.
Replacing
a Fuse
e000 Nordson
Corporatlon
All
rights
reserved
41-3000v
lssued
5/00
82EN-04-[3V-X-4XXVI-s
